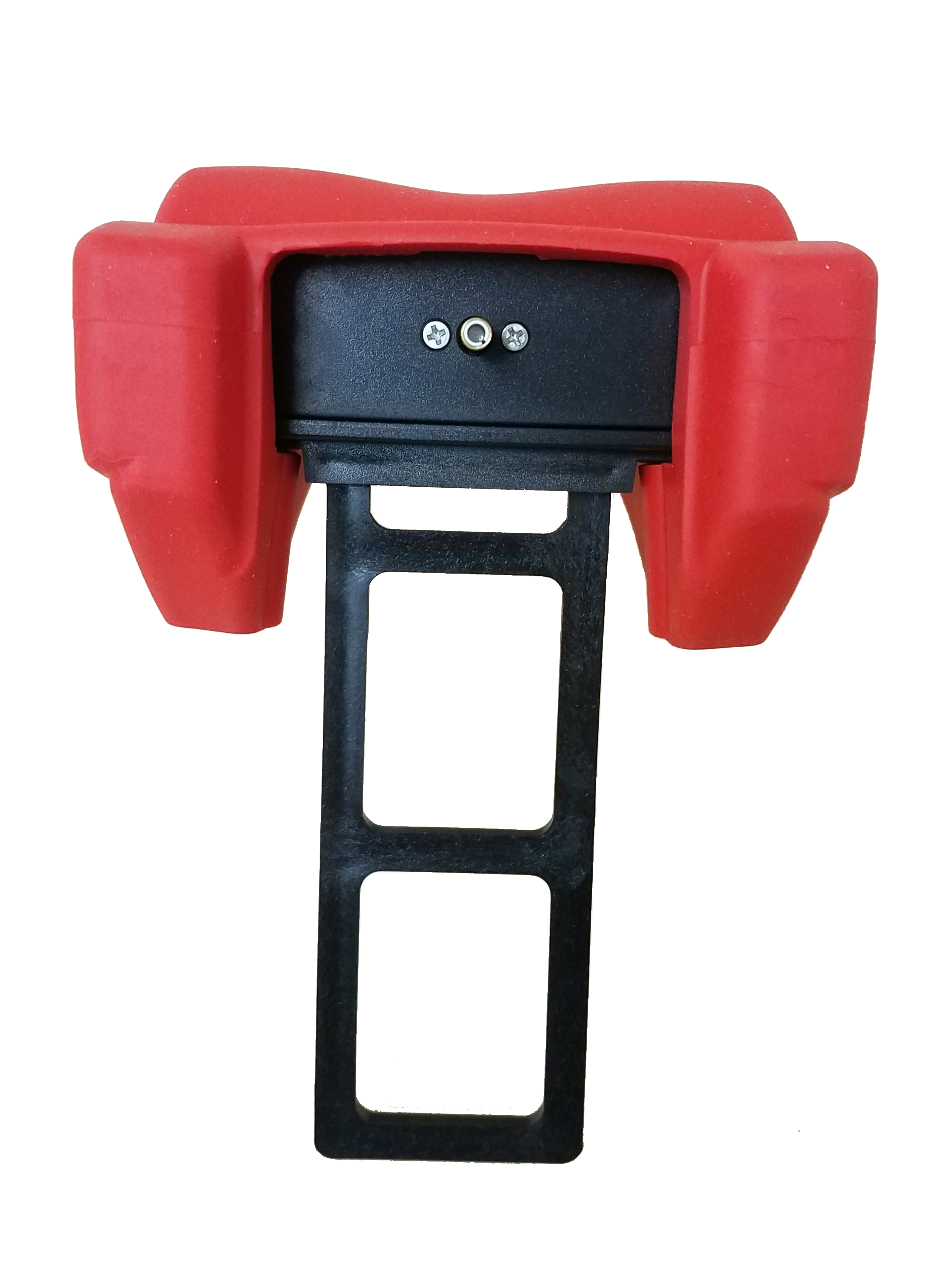

Visual Fault Locator w/ 2.5mm Universal Adapter (Singlemode & Multimode)
This Visual Fault Locator is an essential tool for troubleshooting a fiber optic system.
A 1mW fiber coupled laser sends a 650 nm visible red light down the length of the fiber. The escaping light allows easy identification of breaks or severe macro bends.
Internal optics are used to optimize the unit's performance for either singlemode or multimode applications. Fiber end identification and continuity testing for long distances are also natural applications.

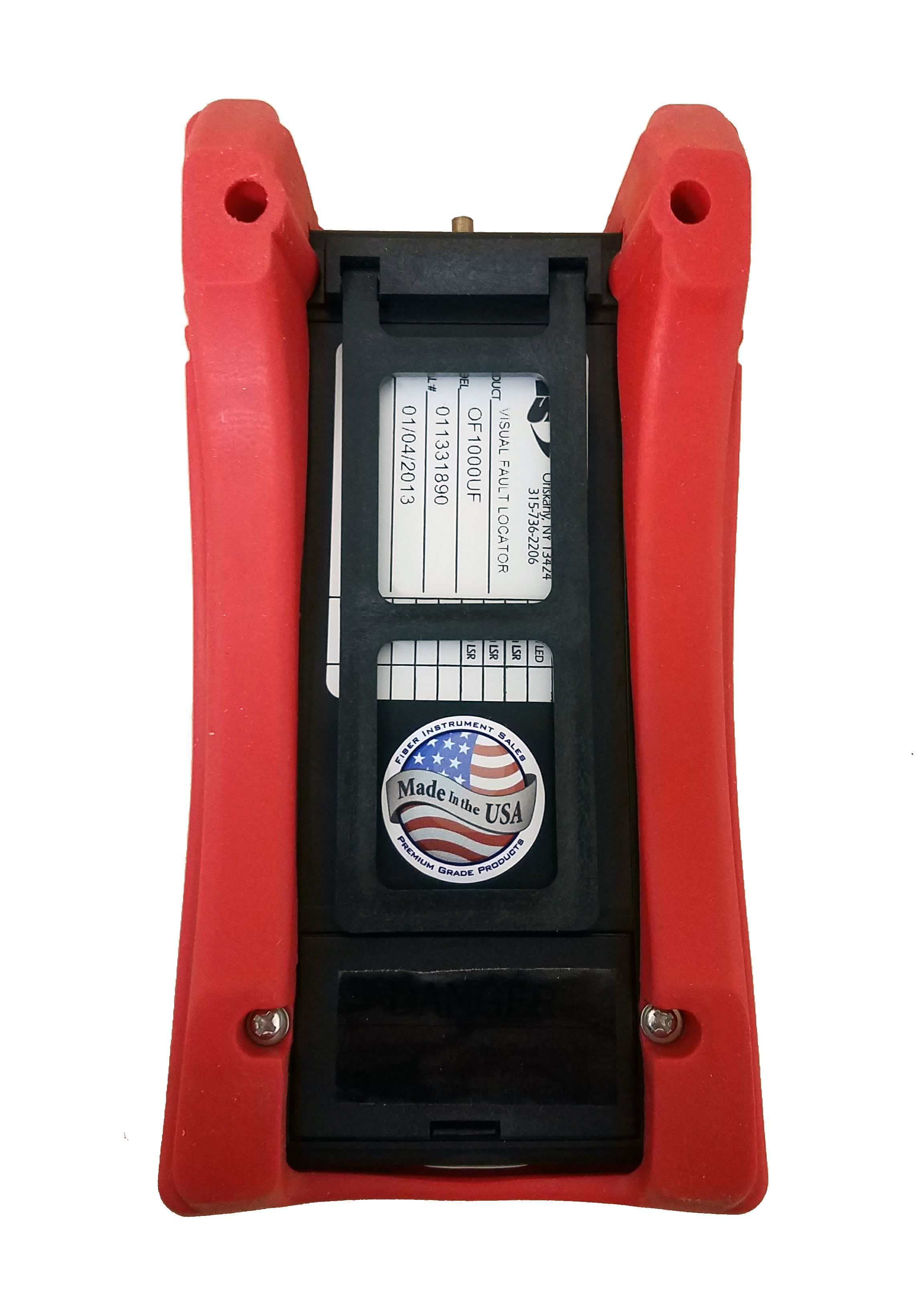

This unit operates with two AA batteries (provided).
FEATURES
• Stabilized Visible Laser
• Battery Operated - 9 Volt
• ≤5mW
• Continuous Wave or Pulsed Wave

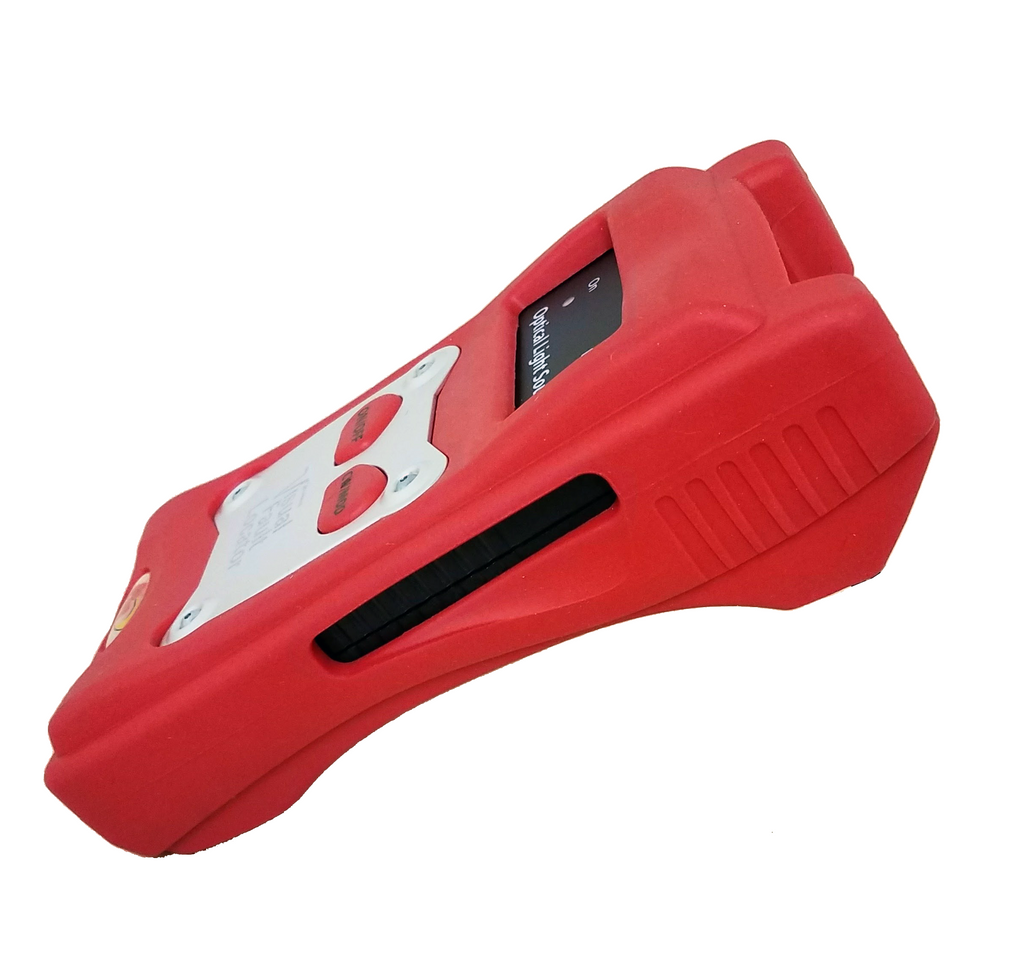

• Ruggedized Rubber Holster
• Singlemode or Multimode Use
• 10 km Range on Singlemode
CONNECTOR STYLES
• 2.5mm Universal Adapter -(Singlemode & Multimode)(SC, FC, ST)
• LC - (Singlemode & Multimode)
• FC/APC - Singlemode
• SC/APC - Singlemode
Download Products Spec Sheet:
| Product Specifications | |
| Output Power | 1mW |
| Wavelength | 650nm Typ |
| Battery | (2) AA |
| Battery Life (typical) | 30 hrs continuous 40 hrs modulated |
| Pulse Rate | 1Hz |
| Emission Indicator | Power indicator in sync when laser in use |
| Size | 6 1/4" L x 3 1/4" W x 1 1/4" D |
| Weight | 7.5 oz |
| Operating Temp. | -10 to + 50 Celcius |
