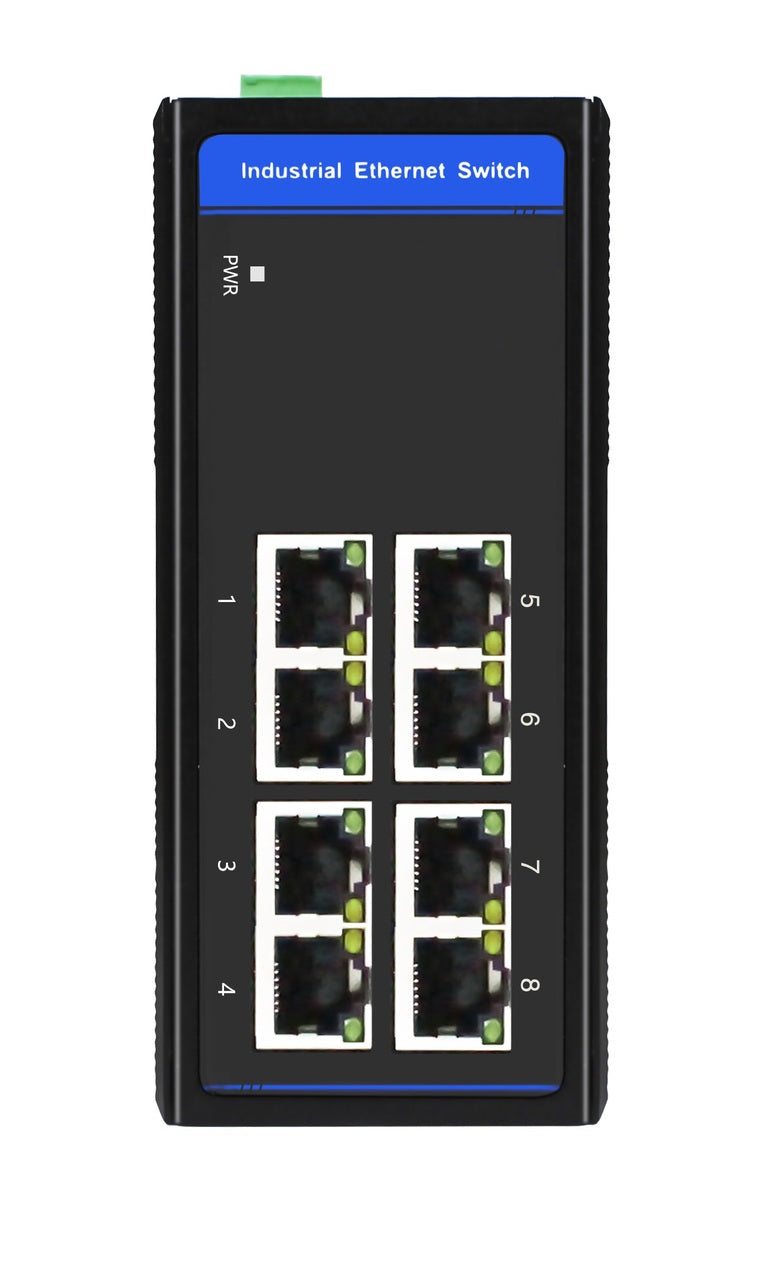

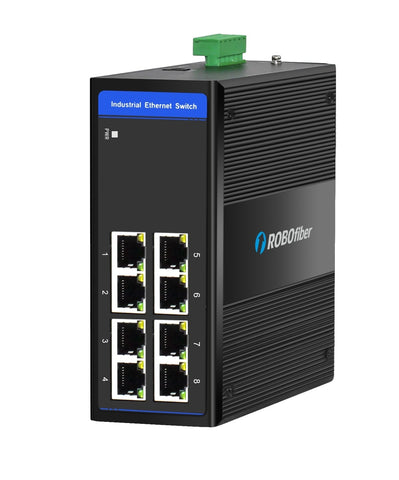

The HSW-800 is an 8-port Ethernet switch 10/100Base-T(X) that provides stable and reliable transmission for Industrial Ethernet connections.

HSW-800 is hardened for extreme operating temperatures: -40 to +75 Celsius.

Industrial Switches are housed in IP40 rated rugged metal housings designed to operate in difficult conditions, including mechanically and electrically extreme environments.

All Industrial switches have strong surge protection (4kV~8kV) per port, depending on models and strict compliance with IEC and EN standards for industrial-grade equipment.

All Industrial Ethernet switches include a DIN rail mounting kit and wall mounting kit.

Features:

• Redundant dual DC input Power 12/24/48VDC (9.6~60VDC)
• IP40 rugged metal housing
• Wide operating temperature -40~75°C
• UL508, CE, FCC
• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
• 8-Port 10/100Base-T(X) copper ports

Additional information on HSW-800 model: PDF datasheet; PDF Installation Manual.
