Overview

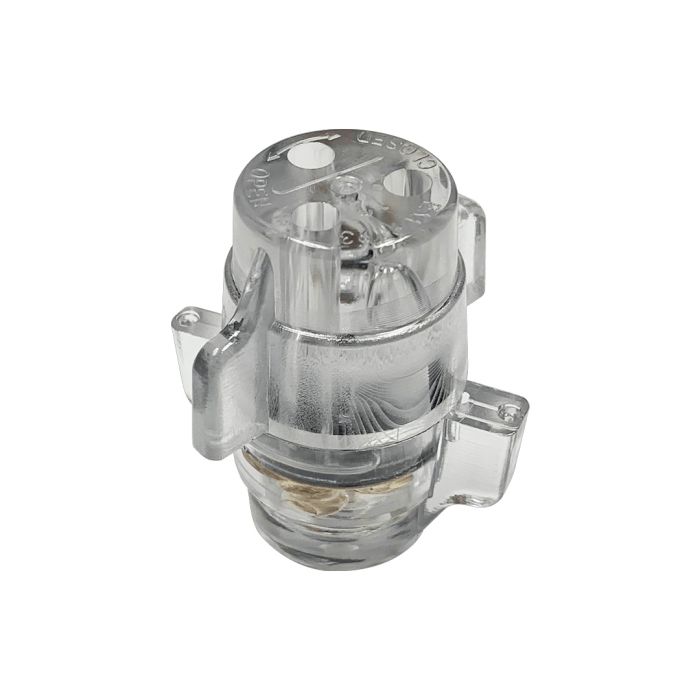

The Trident Locking Barrel Connector is an insulation displacement connector (IDC) engineered for efficient and secure wire termination. Its design eliminates the need for wire stripping, simplifying field installations for network, power, and telecommunications cabling.
Built with waterproof materials, this connector is designed to withstand harsh operating environments without suffering from oxidation, rust, or chemical degradation. It provides a robust, locked connection that remains stable and impervious to external elements, ensuring long-term reliability in various field applications.
Key Features
-
Waterproof Construction
The connector shell prevents moisture ingress to ensure consistent electrical performance in outdoor or humid conditions. -
Insulation Displacement Design
Allows wire connection without stripping the jacket or insulation, which reduces installation time and minimizes the risk of conductor damage. -
Twist-Lock Mechanism
A simple 90-degree twist action locks the wires securely into place for a dependable mechanical hold. -
Broad Gauge Compatibility
Versatile design supports a range of wire gauges from 10 to 14 AWG for project flexibility. -
Corrosion Resistance
The housing materials protect against oxidation and rust, extending the service life of the connection. -
Chemical Tolerance
Material composition prevents deterioration when exposed to common industrial chemicals.
Applications
- Outside plant telecommunications
- General power distribution
- Outdoor equipment connectivity
- Harsh environment wire management
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Trident |
| Part Number | LBC12 |
| Connector Type | Locking Barrel (IDC) |
| Wire Gauge Compatibility | 10 to 14 AWG |
| Installation Method | Twist-Lock (90-degree) |
| Material Properties | Waterproof; Corrosion Resistant |
Frequently Asked Questions
Does this connector require wire stripping?
No, the IDC (insulation displacement connector) design eliminates the need for wire stripping. Simply insert the wires and twist 90 degrees to lock them.
What wire gauges can I use with this connector?
This connector is compatible with wire gauges ranging from 10 to 14 AWG.
Is this suitable for outdoor use?
Yes, it features waterproof construction that will not deteriorate from exposure to water, oxidation, or rust.
How secure is the connection?
The connector provides a tightly locked connection, engineered to remain impervious to environmental factors.
What is the installation process?
Installation is accomplished by inserting the wires into the barrel and twisting 90 degrees.
