Overview

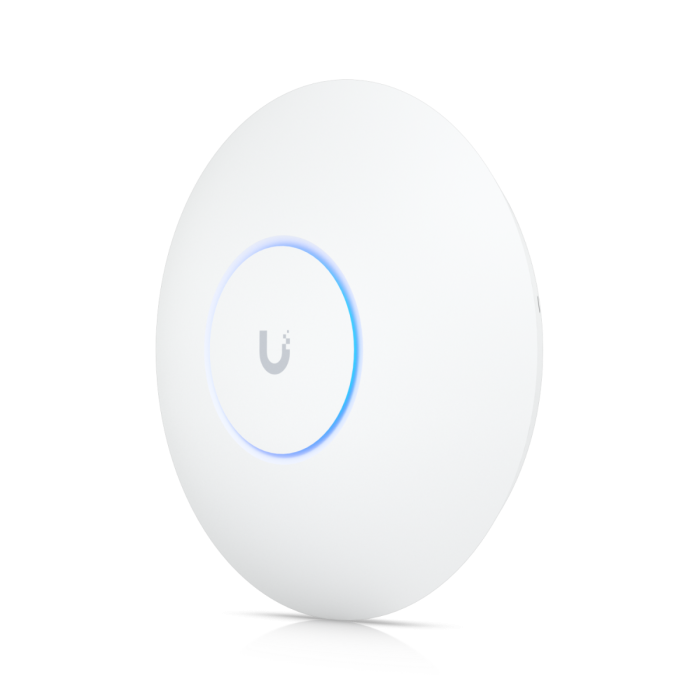

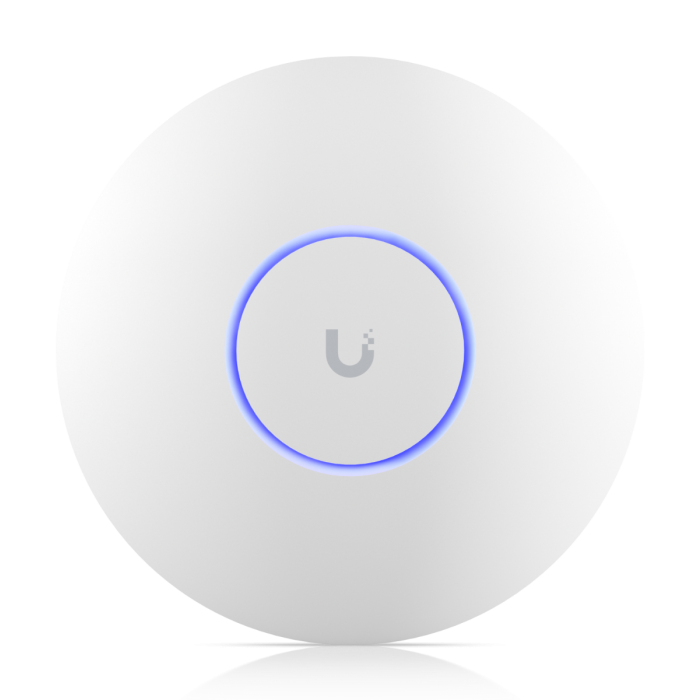

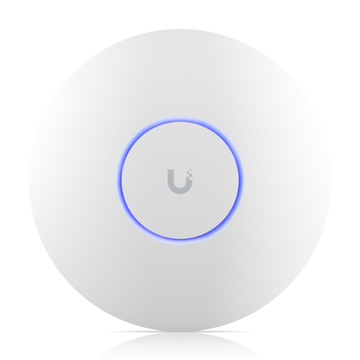

The Ubiquiti U6LR is a high-performance, dual-band access point designed for both indoor and outdoor wireless connectivity. Leveraging advanced WiFi 6 technology, this device provides efficient and reliable network access for demanding environments, supporting high-density scenarios with over 350 connected devices.
Constructed for versatility, the U6LR features a horizontal, downward-tilted antenna pattern designed to optimize coverage across wide areas, reaching up to 185 m² (2,000 ft²). It is powered via PoE+ and integrates seamlessly into professional network infrastructures requiring extended signal range and throughput.
Key Features
-
WiFi 6 Capability
Features 4x4 MIMO on the 5 GHz band and 4x4 MIMO on the 2.4 GHz band for high-speed wireless connectivity. -
Extended Coverage
Designed to provide coverage for up to 185 m² (2,000 ft²), reducing the number of access points needed for large spaces. -
High Device Capacity
Engineered to manage and maintain stable connections for 350+ simultaneous devices. -
High Throughput
Delivers an aggregate throughput rate of 3.0 Gbps to support bandwidth-intensive applications. -
Indoor/Outdoor Versatility
Designed to function effectively in both indoor and outdoor installation environments. -
Efficient Antenna Design
Utilizes a horizontal, downward-tilted antenna pattern to maximize signal distribution and area coverage. -
PoE+ Powering
Supports standard PoE+ for streamlined power and data delivery via a single Ethernet cable.
Applications
- Corporate office networks
- Large retail spaces
- Public event venues
- Outdoor campus environments
- Education facilities
Package Contents
- Access Point U6LR

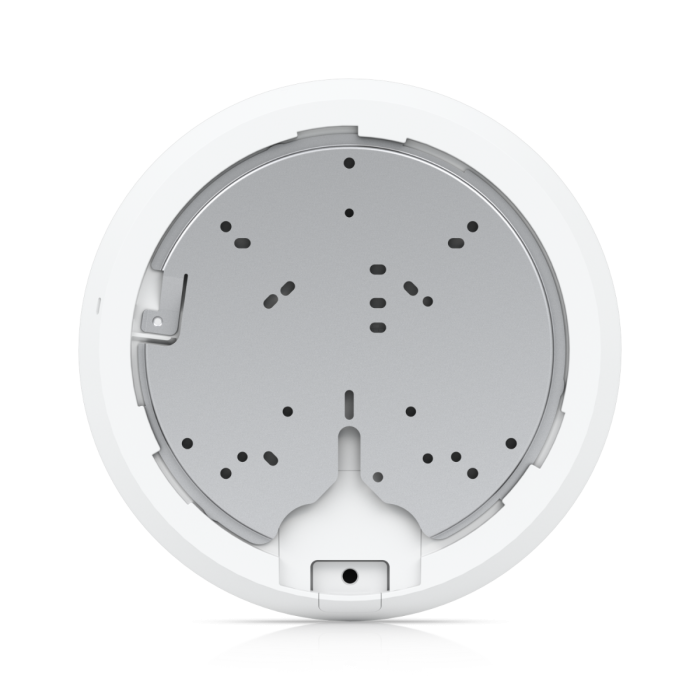

- Ceiling/Wall Mount Kit
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | U6LR |
| WiFi Standards | 5 GHz WiFi 6, 2.4 GHz WiFi 4 |
| Throughput | 3.0 Gbps (Aggregate) |
| Ports | 1 x GbE RJ45 (PoE In) |
| Power Method | PoE+ |
| Coverage Area | 185 m² (2,000 ft²) |
| Device Capacity | 350+ Devices |
| Dimensions | 8.66" x 1.89" |
| Weight | 2.05 lbs (with mount) |
Frequently Asked Questions
Is this access point suitable for outdoor use?
Yes, the U6LR is designed for both indoor and outdoor deployment environments.
How is the device powered?
The unit is powered using PoE+ (Power over Ethernet).
What is the maximum throughput?
The U6LR provides an aggregate throughput rate of 3.0 Gbps.
How many devices can it support?
It is capable of supporting 350+ connected devices simultaneously.
Does it include mounting hardware?
Yes, the package includes the necessary ceiling/wall mount kit.
