How to use a fiber optic connector/adapter kit?

Share this post




We have this fiber adapter kit in stock.

Order it here or by clicking on the picture below!

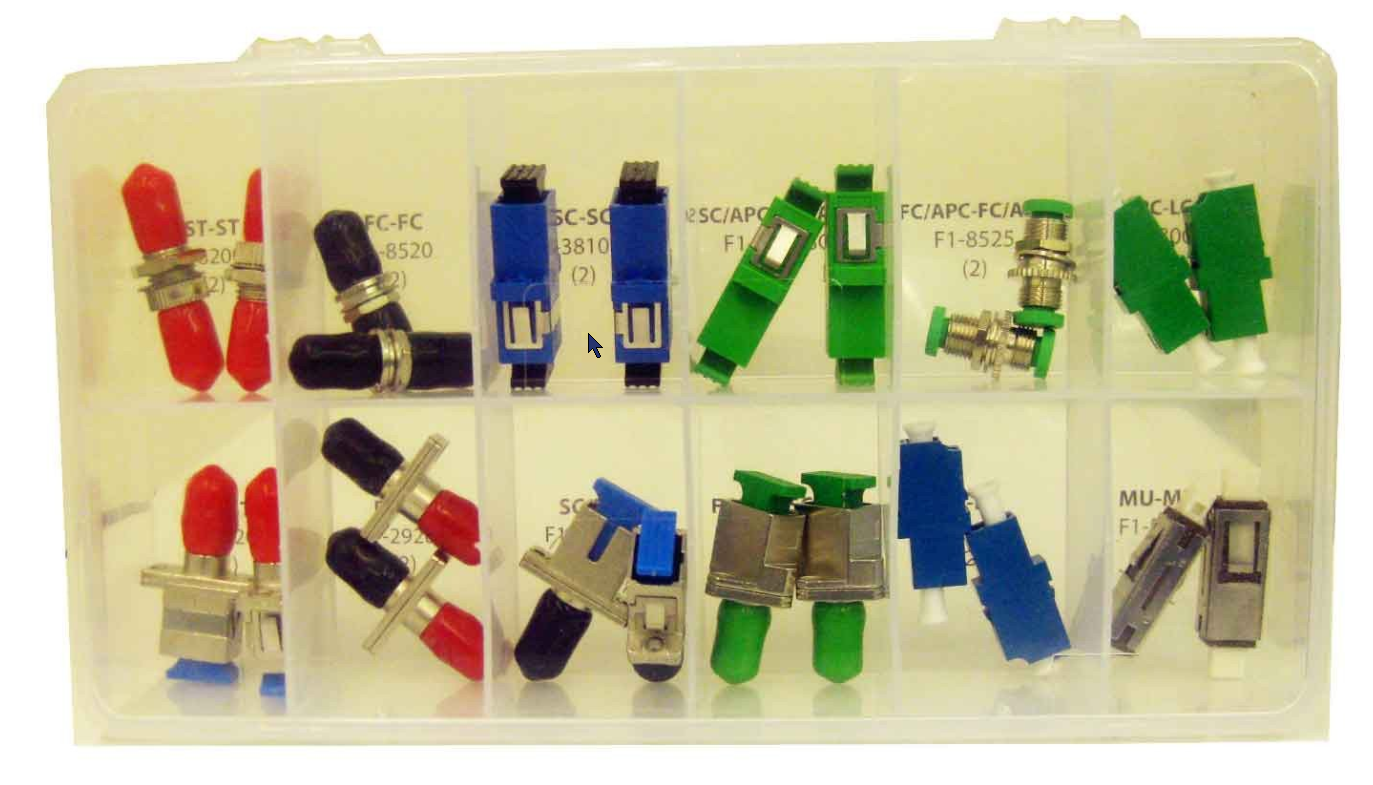

Fiber optic connector/adapter kit



This adapter kit comes with 24 fiber connector adapters, 12 types, 2 pieces of reach type. It includes almost any type of adapters you could encounter in your work.

The first one is a single mode ST to ST adapter, screw mounted, it is used to connect two ST connectors. It can be used for both single mode and multimode applications.

The next one is a single mode FC to FC adapter, also screw mounted, here is how it’s used to connect two FC connectors. It can be used for both single mode and multimode applications.

The next one is a SC to SC single mode adapter. It can also be used for both single mode and multimode applications.

The next one is a SC/APC to SC/APC adapter. The green color means that it is for APC angle polished connectors. Here is how it’s used, SC/APC to SC/APC connector.

The next one is a FC/APC to FC/APC adapter. The green colored dust cap means that it is designed for APC 8 degree angle polished FC connectors. How is how it’s used.

The next one is a LC/APC to LC/APC adapter. Again green color dust cap means it is for 8 degree angle polished APC connectors.

The next one is a hybrid adapter, between SC and ST. It is a single mode adapter. So single mode SC connector on one side, and single mode ST on the other side.

The next one is also a hybrid adapter, between FC and ST. Here is how to use it.

The next one is also a hybrid adapter, single mode FC to single mode SC. Here is how to use it.

The next one is a single mode FC/APC to single mode SC/APC adapter. The green colored caps means they are designed for 8 degree angled APC connectors. Here is how to use it.

The next one is a regular single mode LC to LC adapter. Here is how it works.

The last one is a single mode MU to MU adapter. MU is not used widely in USA, but it is widely used in Japan and Europe.

This is a very complete and universal fiber adapter kit for almost all types of connector you could encounter.
