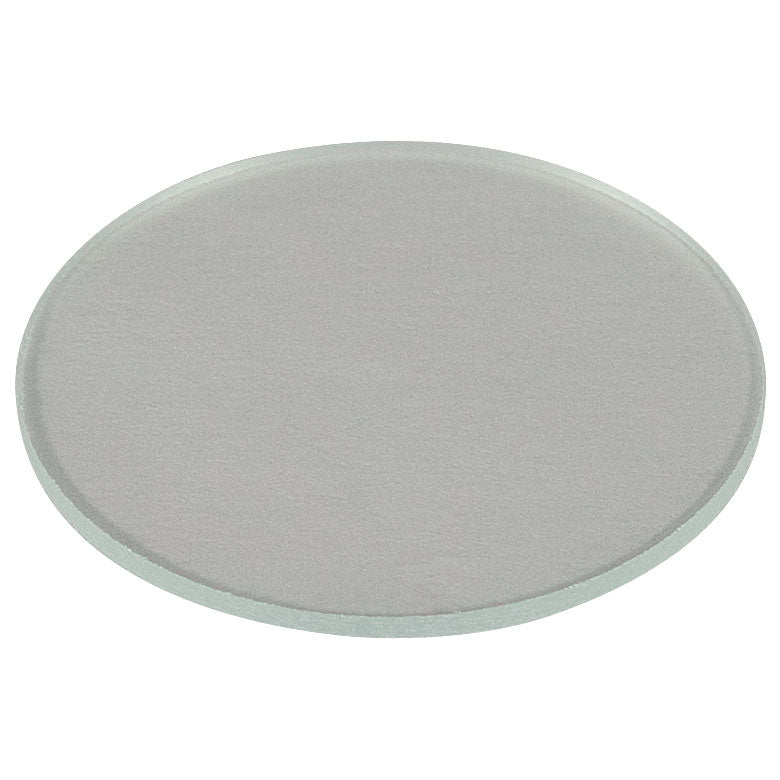

T-EBP1 - Economy 30:70 Beamsplitter, Ø1", AOI: 45°
Roll over image to zoom in Click on image to zoom
T-EBP1 - Economy 30:70 Beamsplitter, Ø1", AOI: 45°

T-EBP1 - Economy 30:70 Beamsplitter, Ø1", AOI: 45°

Fosco ConnectSKU: T-EBP1
Price:
$ 58.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-EBP1 - Economy 30:70 Beamsplitter, Ø1", AOI: 45°

Item # T-EBP1
Substrate Soda Lime Glass
Diameter 1" (25.4 mm)
Diameter Tolerance +0.0/-0.25 mm
Thickness (Nominal) 1 mm
Splitter Ratio 30:70
Splitter Ratio Tolerance
for 450 - 650 nm (AOI = 45°)		 Transmittance: 70% ± 10%
Reflectance: 30% ± 10%
Surface Quality 80-50 Scratch-Dig as per MIL-013830A
Clear Aperture >90% of Diameter
Temperature Range -50 to 80 °C





Item # T-EBP1 T-EBP2
Diameter 1" (25.4 mm) 2" (50.8 mm)
Diameter Tolerance +0.0/-0.25 mm +0.0/-0.5 mm
Splitter Ratio Tolerance
for 450 - 650 nm (AOI = 45°)		 Transmittance: 70% ± 10%
Reflectance: 30% ± 10%



ommon Specifications
Substrate Material Soda Lime Glass
Coating (One Side) Refractory Oxide Dielectric
Thickness (Nominal) 1 mm
Surface Quality 80-50 Scratch-Dig
as per MIL-013830A
Clear Aperture >90% of Diameter
Temperature Range -50 to 80 °C
