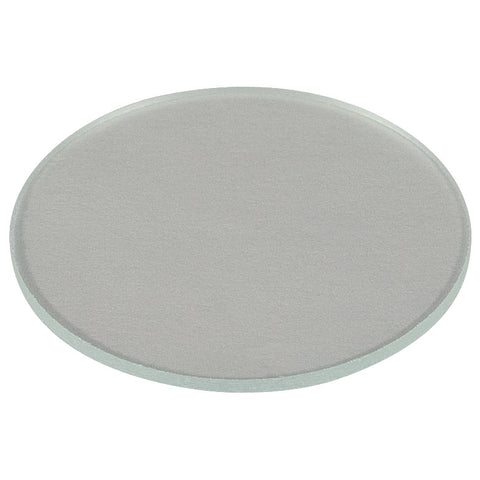

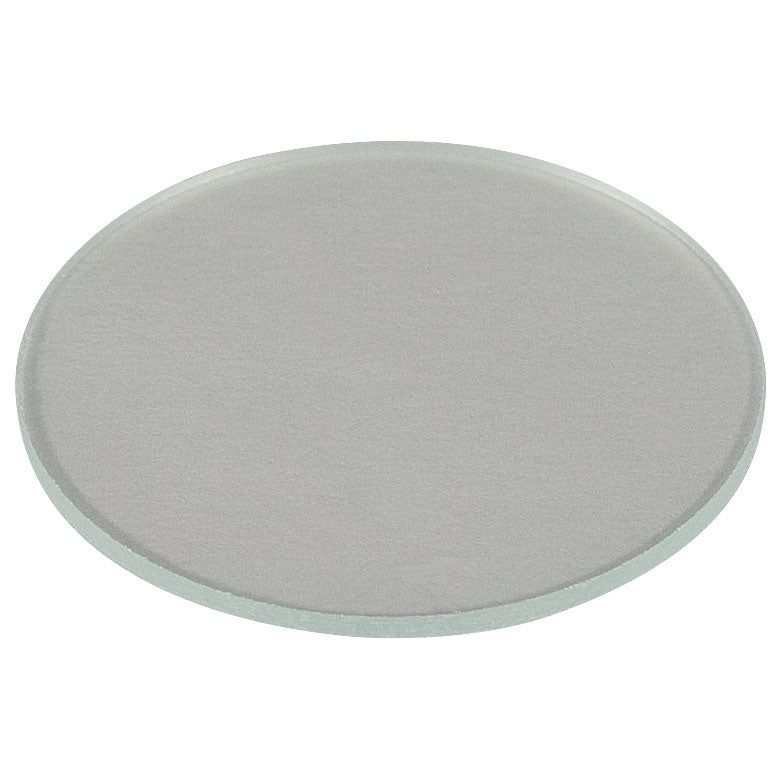

T-EBP1 - Economy 30:70 Beamsplitter, Ø1", AOI: 45°
T-EBP1 - Economy 30:70 Beamsplitter, Ø1", AOI: 45°
| Item # | T-EBP1 |
|---|---|
| Substrate | Soda Lime Glass |
| Diameter | 1" (25.4 mm) |
| Diameter Tolerance | +0.0/-0.25 mm |
| Thickness (Nominal) | 1 mm |
| Splitter Ratio | 30:70 |
| Splitter Ratio Tolerance for 450 - 650 nm (AOI = 45°) |
Transmittance: 70% ± 10% Reflectance: 30% ± 10% |
| Surface Quality | 80-50 Scratch-Dig as per MIL-013830A |
| Clear Aperture | >90% of Diameter |
| Temperature Range | -50 to 80 °C |
| Item # | T-EBP1 | T-EBP2 |
|---|---|---|
| Diameter | 1" (25.4 mm) | 2" (50.8 mm) |
| Diameter Tolerance | +0.0/-0.25 mm | +0.0/-0.5 mm |
| Splitter Ratio Tolerance for 450 - 650 nm (AOI = 45°) |
Transmittance: 70% ± 10% Reflectance: 30% ± 10% |
|
| ommon Specifications | ||
|---|---|---|
| Substrate Material | Soda Lime Glass | |
| Coating (One Side) | Refractory Oxide Dielectric | |
| Thickness (Nominal) | 1 mm | |
| Surface Quality | 80-50 Scratch-Dig as per MIL-013830A |
|
| Clear Aperture | >90% of Diameter | |
| Temperature Range | -50 to 80 °C | |
