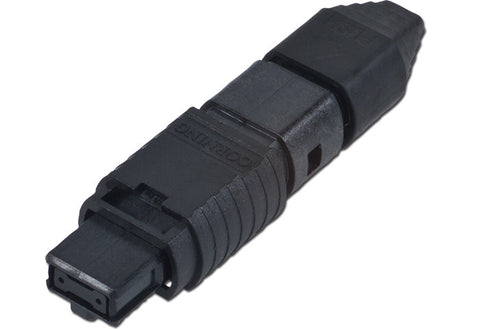

UniCam Standard-Performance Connector, MTP (non-pinned), 50 µm multimode (OM2), 12-fiber black
Standards
| Approval and Listings | Passed EIA/TIA 568-B.3 |
|---|---|
| Intermateability | TIA/EIA 604-5 (FOCIS) |
General Specifications
| Product Type | Field-Installable Connectors |
|---|---|
| Technology | No-Epoxy/No-Polish |
| Keyed | No |
| Corning Logo | Yes |
| Packaging | Single Pack |
| Fiber Category | 50 µm MM (OM2) |
Temperature Range
| Operation | -40°C to 75°C exceeding EIA/TIA 568-B.3 (-40°F to 167°F exceeding EIA/TIA 568-B.3) |
|---|
Design - Connector
| Connector Type | MTP? (non-pinned) |
|---|---|
| Ferrule | Composite |
| Housing Material | Composite |
| Housing Color | Black |
| Boot Color | Black |
Mechanical Specifications - Connector
| Durability | ? 0.2 dB change by 500 rematings, FOTP-21 |
|---|---|
| Tensile Strength Jacketed Cable | 44 N, change ? 0.2 dB, FOTP-6 (10 lb, change ? 0.2 dB, FOTP-6) |
| Tensile Strength 900æ Cable | 2.2 N, change ? 0.2 dB, FOTP-6 (0.5 lb, change ? 0.2 dB, FOTP-6) |
| Nominal Fiber Outer Diameter | 125 µm |
Optical Specifications - Connector
| Insertion Loss, Typical | ? 0.5 dB |
|---|---|
| Insertion Loss, Max. | ? 1 dB |
| Reflectance | ? -20 dB |
| Polish | UPC |
Chemical Characteristics
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
|---|
Shipping Information
| Units per Delivery | 1/1 |
|---|---|
| Package Contents | Connector, bare ribbon boot, jacket ribbon boot, crimp band, jacket crimp band, dust cap |
