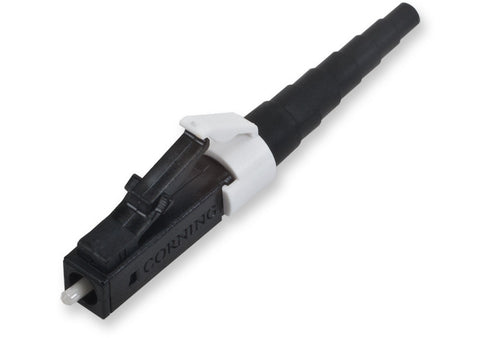

LC Connector, 50 µm multimode (OM2), ceramic ferrule, ceramic hardware, single pack, black housing,

Corning Cable Systems Part No.: 95-051-98-SP

  • $ 8.50 or



Standards

Intermateability Compliant with TIA/EIA 604-10

General Specifications

Technology Field Polish (anaerobic)
Keyed No
Packaging Single Pack
Product Type Field-Installable Connectors
Corning Logo Yes
Fiber Category 50 µm MM (OM2)

Design - Connector

Connector Type LC
Ferrule Ceramic
Housing Material Composite
Housing Color Black
Boot Color Black

Mechanical Specifications - Connector

Temperature Cycling ? 0.3 dB IL, -40ø to +75øC, 21 cycles

Optical Specifications - Connector

Insertion Loss, Typical ? 0.2 dB
Insertion Loss, Max. ? 0.75 dB
Reflectance ? -26 dB

Chemical Characteristics

RoHS Free of hazardous substances according to RoHS 2002/95/EG

Shipping Information

Units per Delivery 1/1
Package Contents Connector, Trigger, Crimp Band (1.6/2.0 mm), Crimp Band (3.0 mm), Boot (900 µm), Boot (2.0 mm), Boot (3.0 mm)
Product Sheet:
