Features:

• UL Listed for use in plenum or air handling spaces per NEC, Section 300-22 (C) and (D)
• Low smoke density and excellent flammability rating of UL 94V-0
• Commonly accepted solution for bundling qualified cable without conduit in air handling space applications
• Applications include nuclear plants, chemical environments, telecommunications equipment, aerospace, and high and low temperature environments
• Distinctive Maroon color identifies material
• Greater resistance to damage caused by ultraviolet light - indoor or outdoor useHALAR is a registered trademark of Solvay Solexis, Inc.

Specifications:

Part number	PLT3S-M702Y
RoHS Compliancy Status	Compliant
Note	PLT3S-M702Y replaces PLT3S-M702

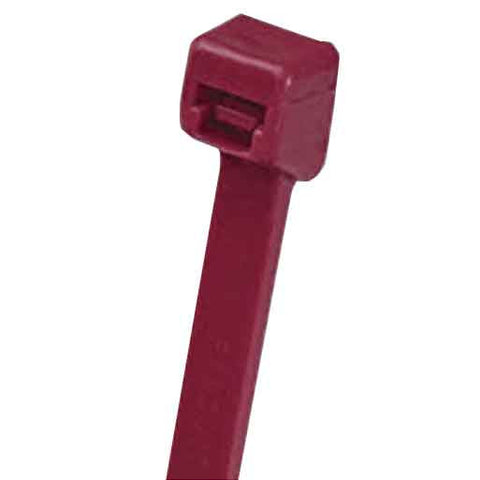

Part Description	Cable Tie, 11.6", Standard cross section
Product Type	Cable Ties
Material	HALAR Fluoropolymer
Color	Maroon
CSA Certified	Yes
UL Listed (File #E56854)	Yes
UL Recognized (File #E56854)	Yes
Length (In.)	11.6
Length (mm)	295
Width (In.)	0.190
Width (mm)	4.8
CE Compliant	Yes
Cross Section	Standard
Head Height (In.)	0.240
Head Height (mm)	6.1
Head Width (In.)	0.320
Head Width (mm)	8.1
Locking Style	Locking
Material Flammability Rating	V-0
Max. Bundle Diameter (In.)	3.00
Max. Bundle Diameter (mm)	76
Max. Continuous Use Temperature	257øF (125øC)
Min. Bundle Diameter (In.)	0.39
Min. Bundle Diameter (mm)	10.0
Min. Loop Tensile Strength (Lbs.)	50
Min. Loop Tensile Strength (N)	222
Plenum-Rated	Yes, for use in plenum or air handling spaces per NEC Sec. 300.22 (C) and (D)
Pricing Description	Cable Tie, 11.6"L (295mm) Standard, Halar, Maroon
Thickness (In.)	0.055
Thickness (mm)	1.4
Tool	GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2

Product Sheet:

• Spec Sheet
