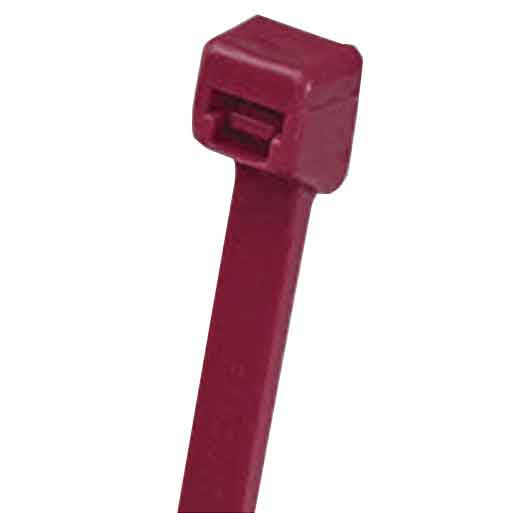

Cable Tie, 11.6", Standard cross section, HALAR Fluoropolymer, Maroon, 1000/pk

Panduit Part No.: PLT3S-M702Y

  • $ 2,169.00 or
  • per pack



Features:

  • UL Listed for use in plenum or air handling spaces per NEC, Section 300-22 (C) and (D)
  • Low smoke density and excellent flammability rating of UL 94V-0
  • Commonly accepted solution for bundling qualified cable without conduit in air handling space applications
  • Applications include nuclear plants, chemical environments, telecommunications equipment, aerospace, and high and low temperature environments
  • Distinctive Maroon color identifies material
  • Greater resistance to damage caused by ultraviolet light - indoor or outdoor useHALAR is a registered trademark of Solvay Solexis, Inc.

Specifications:

Part number PLT3S-M702Y
RoHS Compliancy Status Compliant
Note PLT3S-M702Y replaces PLT3S-M702
Part Description Cable Tie, 11.6", Standard cross section
Product Type Cable Ties
Material HALAR Fluoropolymer
Color Maroon
CSA Certified Yes
UL Listed (File #E56854) Yes
UL Recognized (File #E56854) Yes
Length (In.) 11.6
Length (mm) 295
Width (In.) 0.190
Width (mm) 4.8
CE Compliant Yes
Cross Section Standard
Head Height (In.) 0.240
Head Height (mm) 6.1
Head Width (In.) 0.320
Head Width (mm) 8.1
Locking Style Locking
Material Flammability Rating V-0
Max. Bundle Diameter (In.) 3.00
Max. Bundle Diameter (mm) 76
Max. Continuous Use Temperature 257øF (125øC)
Min. Bundle Diameter (In.) 0.39
Min. Bundle Diameter (mm) 10.0
Min. Loop Tensile Strength (Lbs.) 50
Min. Loop Tensile Strength (N) 222
Plenum-Rated Yes, for use in plenum or air handling spaces per NEC Sec. 300.22 (C) and (D)
Pricing Description Cable Tie, 11.6"L (295mm) Standard, Halar, Maroon
Thickness (In.) 0.055
Thickness (mm) 1.4
Tool GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2
