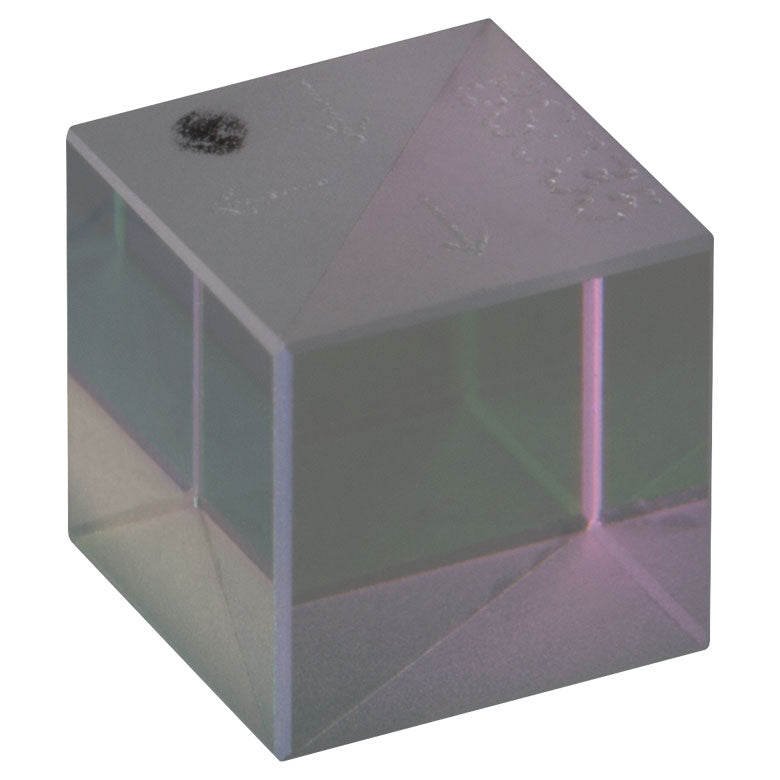

T-BS035 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 5 mm
Roll over image to zoom in Click on image to zoom
T-BS035 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 5 mm

T-BS035 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 5 mm

Fosco ConnectSKU: T-BS035
Price:
$ 285.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-BS035 - 10:90 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 5 mm

Product Drawing

Item # T-BS035
Cube Side Length 5 mm
Clear Aperture >3.5 x 3.5 mm
Transmitted Wavefront Error
  • At 633 nm
 <λ/4
Transmitted Beam Deviation 0° ± 5 arcmin

Overall Performance

  • Over the 700 - 1100 nm Coating Range, 0° AOI
 Tabs = 87 ± 10%, Rabs = 7 +10/-7%, Tabs + Rabs > 85%,
|Ts - Tp| < 10%, and |Rs - Rp| < 10%



  • Broadband AR-Coated Faces for 700 - 1100 nm
  • Broadband Beamsplitter Coating on Internal Diagonal Surface
  • 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
  • Sizes from 5 mm to 2" (See Below for Details)
  • N-BK7 Substrate
  • Size 5 mm Cube
Item # T-BS035
Cube Side Length 5 mm
Clear Aperture >3.5 x 3.5 mm
Transmitted Wavefront Error <λ/4
Transmitted Beam Deviation 0° ± 5 arcmin
Overall Performance Tabs = 87 ± 10%, Rabs = 7 +10/-7%, Tabs + Rabs > 85%,
|Ts - Tp| < 10%, and |Rs - Rp| < 10%
