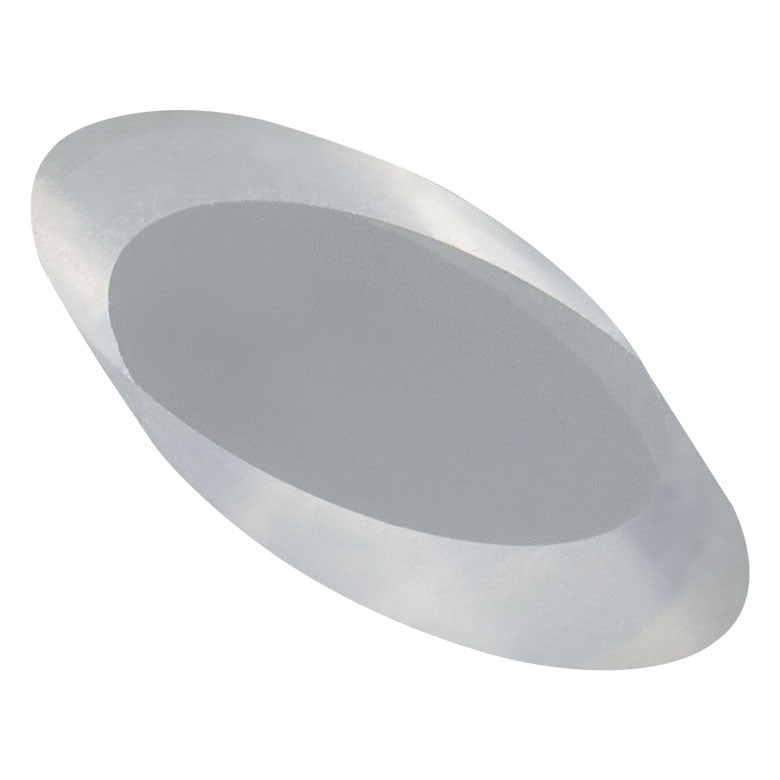

T-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm Thick
T-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm Thick
T-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm Thick
Roll over image to zoom in Click on image to zoom
T-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm ThickT-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm ThickT-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm Thick

T-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm Thick

Fosco ConnectSKU: T-BW0601
Price:
$ 118.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm Thick

Product Drawing

  • Ideal for Laser Cavities
  • UV Fused Silica Substrate
  • Available Minor Diameters: 6 mm, 8 mm, 13 mm, 16 mm, 20 mm, and 25 mm

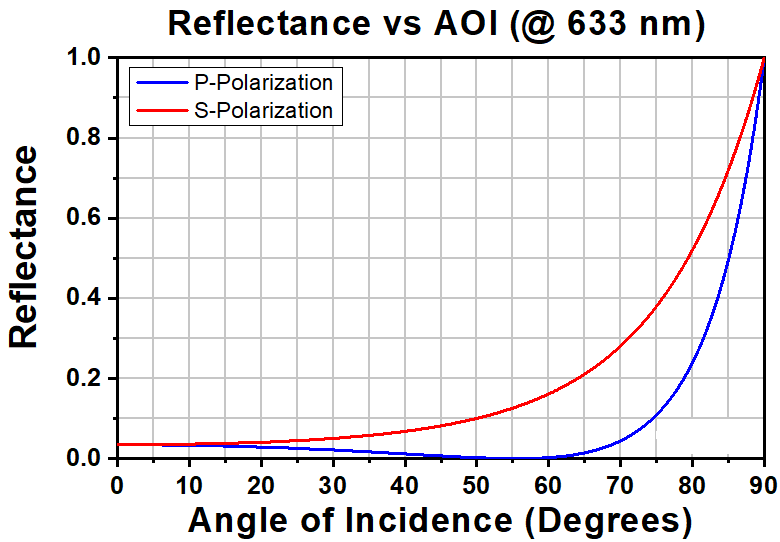

  • P-Polarized Light is Transmitted without Reflection Losses
  • Brewster Window Mounts Available
Item # T-BW0601
Minor Diameter 6.0 mm
Minor Diameter Tolerance +0.00 / -0.10 mm
Thickness 1.0 mm
Thickness Tolerance ±0.1 mm
Brewster Angle 55° 32' @ 633 nm
Clear Aperture >90% of Minor Axis
Parallelism ≤5 arcsec
Transmitted Wavefront Errorb <λ/10
Surface Quality 20-10 Scratch-Dig
Wavelength Range 185 nm - 2.1 μm (Uncoated)

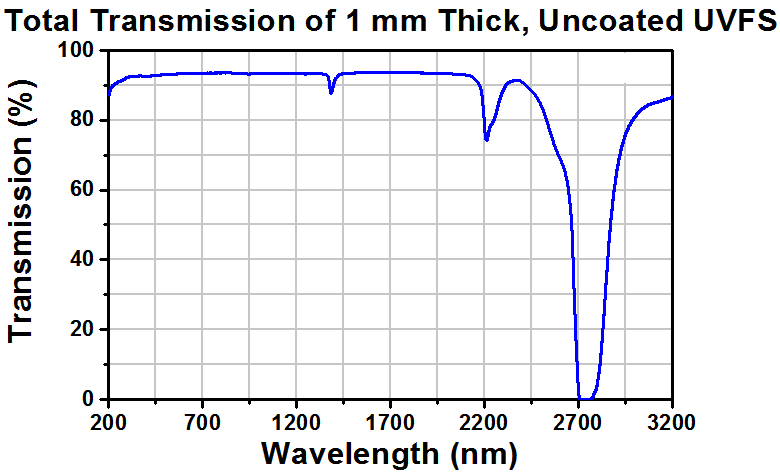

Transmission Data Transmission Data
