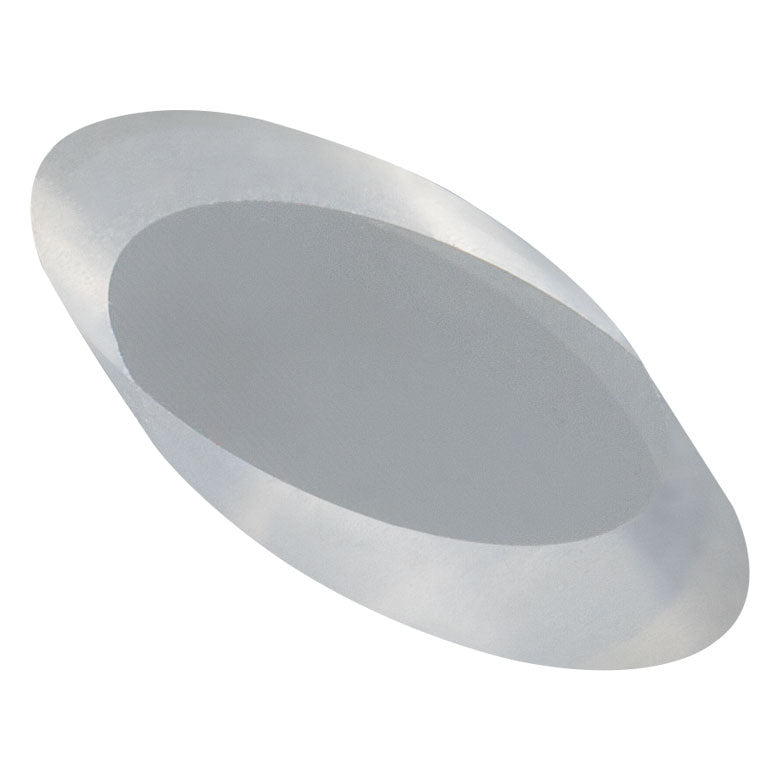

T-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm Thick
T-BW0601 - UVFS Brewster Window, 6.0 mm Minor Diameter, 1.0 mm Thick
- Ideal for Laser Cavities
- UV Fused Silica Substrate
- Available Minor Diameters: 6 mm, 8 mm, 13 mm, 16 mm, 20 mm, and 25 mm

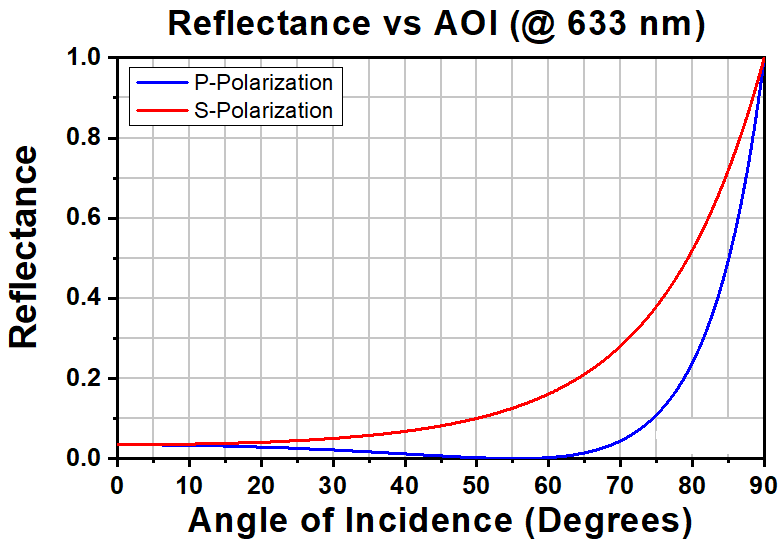

- P-Polarized Light is Transmitted without Reflection Losses
- Brewster Window Mounts Available
| Item # | T-BW0601 |
|---|---|
| Minor Diameter | 6.0 mm |
| Minor Diameter Tolerance | +0.00 / -0.10 mm |
| Thickness | 1.0 mm |
| Thickness Tolerance | ±0.1 mm |
| Brewster Angle | 55° 32' @ 633 nm |
| Clear Aperture | >90% of Minor Axis |
| Parallelism | ≤5 arcsec |
| Transmitted Wavefront Errorb | <λ/10 |
| Surface Quality | 20-10 Scratch-Dig |
| Wavelength Range | 185 nm - 2.1 μm (Uncoated) |

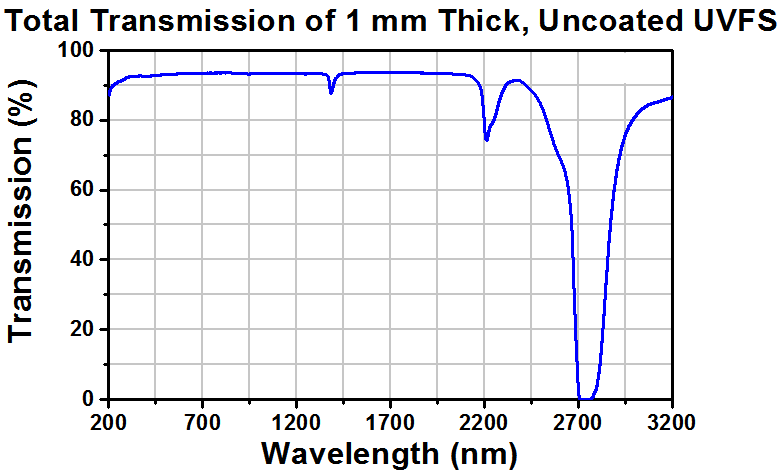

| Transmission Data | Transmission Data |
