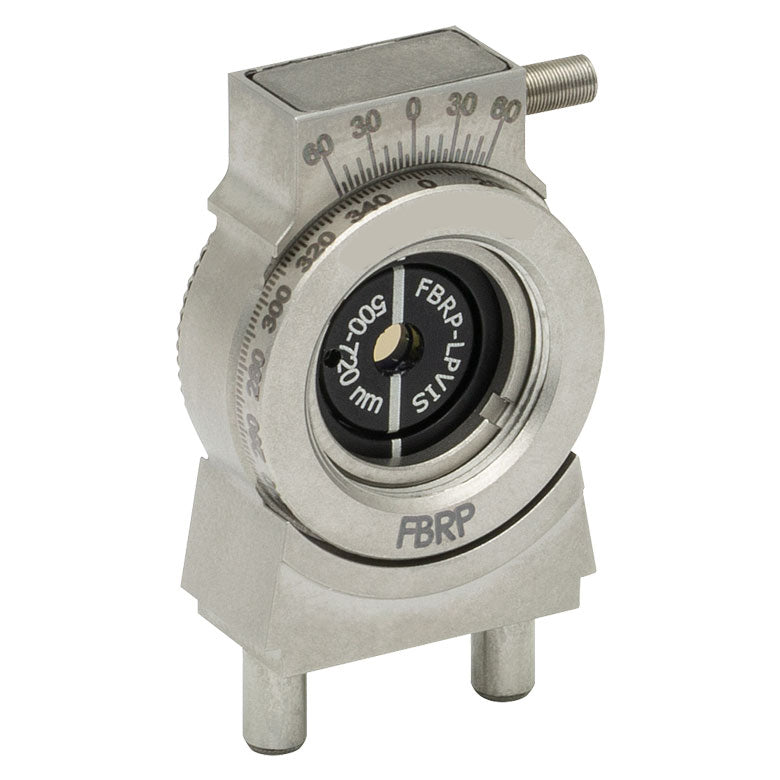

T-FBRP-LPVIS - Precision Rotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CA
T-FBRP-LPVIS - Precision Rotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CA
Roll over image to zoom in Click on image to zoom
T-FBRP-LPVIS - Precision Rotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CAT-FBRP-LPVIS - Precision Rotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CA

T-FBRP-LPVIS - Precision Rotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CA

Fosco ConnectSKU: T-FBRP-LPVIS
Price:
$ 535.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-FBRP-LPVIS - Precision Rotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CA

Product Drawing

  • >10 000:1 Extinction Ratio
  • 360° Continuous Rotation
  • Engraved Scale with 2° Increments; Vernier Scale with 10 arcmin Resolution
  • ±5.5° Fine Adjustment
  • Ø2.5 mm Clear Aperture for FBRP-LPVIS and FBRP-LPNIR
  • Ø4.0 mm Clear Aperture for FBRP-LPMIR

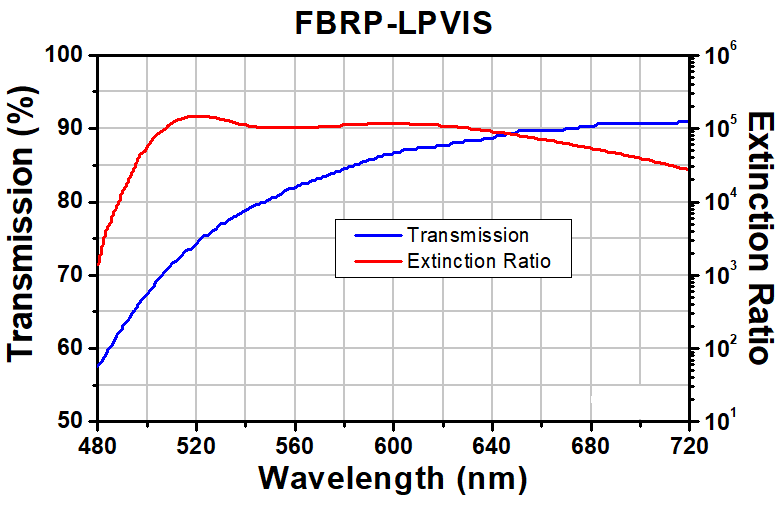

Item # Suffix Wavelength Transmission Extinction Ratioa Damage Threshold Alignment
Accuracya
-LPVIS 500 - 720 nm >65% >40 dB (10 000:1) 1 W/cm2 (Continuous Block)
5 W/cm2 (Continuous Pass)		 ±3° (Typical)
