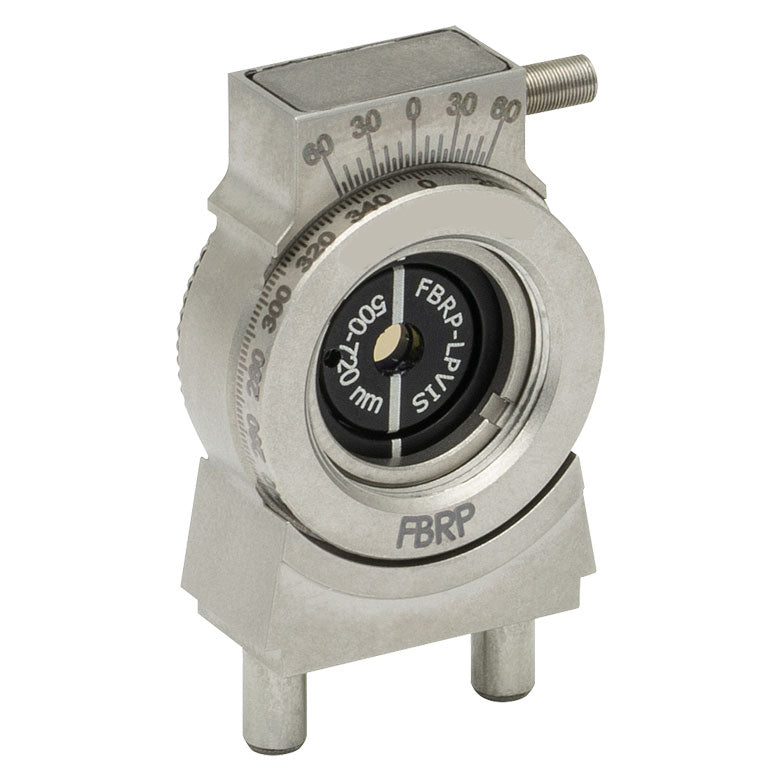

T-FBRP-LPVIS - Precision Rotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CA
T-FBRP-LPVIS - Precision Rotating Linear Polarizer Module, 500 - 720 nm, Ø2.5 mm CA
- >10 000:1 Extinction Ratio
- 360° Continuous Rotation
- Engraved Scale with 2° Increments; Vernier Scale with 10 arcmin Resolution
- ±5.5° Fine Adjustment
- Ø2.5 mm Clear Aperture for FBRP-LPVIS and FBRP-LPNIR
- Ø4.0 mm Clear Aperture for FBRP-LPMIR

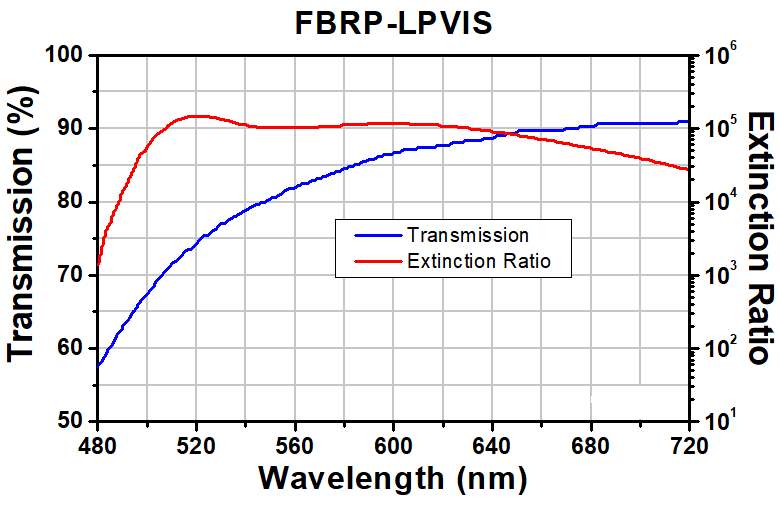

| Item # Suffix | Wavelength | Transmission | Extinction Ratioa | Damage Threshold | Alignment Accuracya |
|---|---|---|---|---|---|
| -LPVIS | 500 - 720 nm | >65% | >40 dB (10 000:1) | 1 W/cm2 (Continuous Block) 5 W/cm2 (Continuous Pass) |
±3° (Typical) |
