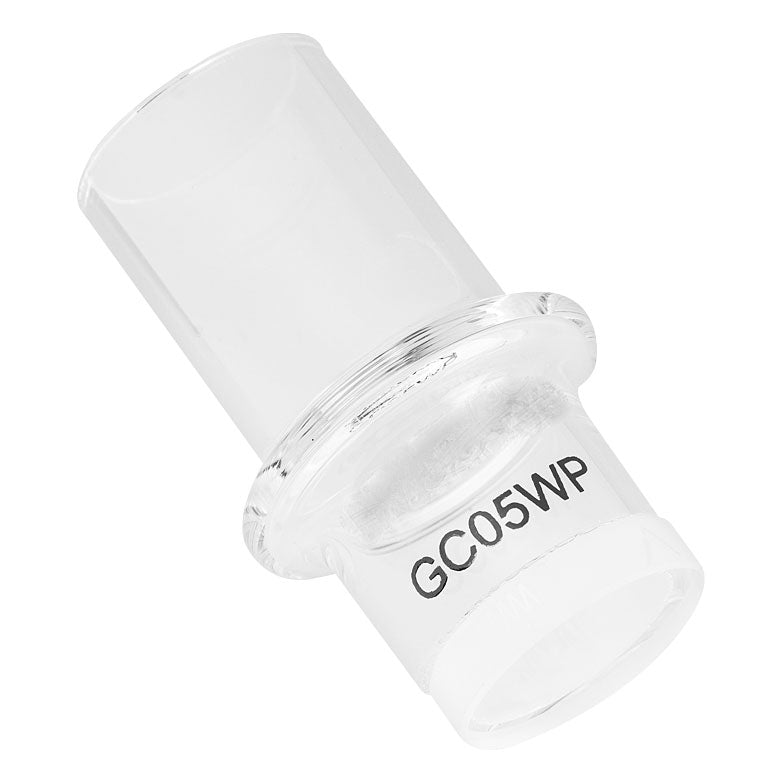

T-GC05WP - Optical Viewport with Uncoated UV Fused Silica Wedged Window
T-GC05WP - Optical Viewport with Uncoated UV Fused Silica Wedged Window
Roll over image to zoom in Click on image to zoom
T-GC05WP - Optical Viewport with Uncoated UV Fused Silica Wedged WindowT-GC05WP - Optical Viewport with Uncoated UV Fused Silica Wedged Window

T-GC05WP - Optical Viewport with Uncoated UV Fused Silica Wedged Window

Fosco ConnectSKU: T-GC05WP
Price:
$ 198.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GC05WP - Optical Viewport with Uncoated UV Fused Silica Wedged Window

Product Drawing

  • UV Fused Silica Window for Transmission from 185 nm - 2.1 µm
  • Window has 30 arcmin Wedge to Eliminate Fringe Patterns and Reduce Etalon Effects
  • Fused Silica Tube with Ø1/2" Outer Diameter
  • Suitable for Use at Pressures from 10-7 Torr to 5 psi at 25 °C
Usage Pressure Range 10-7 Torr to 5 psi @ 25 °C
Wedge Angle 30 ± 10 arcmin
Diameter 1/2" (12.7 mm)
Diameter Tolerance +0.0 / -0.2 mm
Thickness 3.0 mm
Thickness Tolerance ±0.4 mm
Clear Aperture >Ø8 mm

Surface Flatness

  • Measured at 633 nm
 ≤λ/20 Over Central Ø5 mm
≤λ/10 Over Full Clear Aperture
Surface Quality 10-5 Scratch-Dig

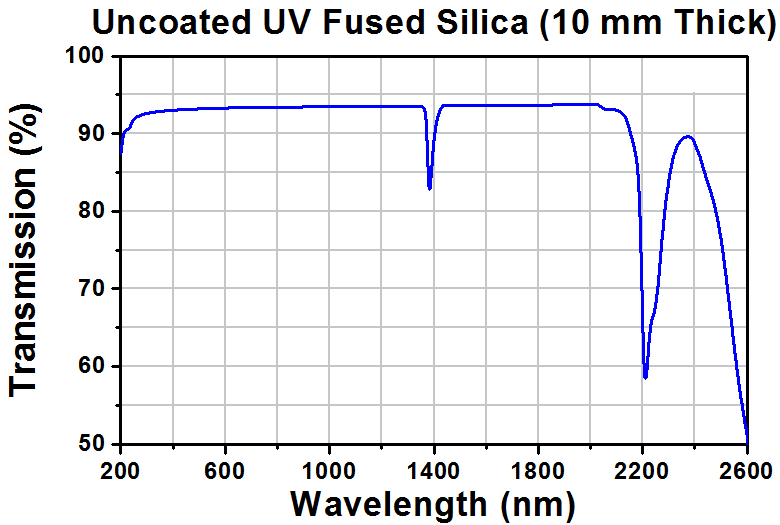

Wavelength Range 185 nm - 2.1 μm (Uncoated)
