T-GC05WP - Optical Viewport with Uncoated UV Fused Silica Wedged Window
T-GC05WP - Optical Viewport with Uncoated UV Fused Silica Wedged Window
- UV Fused Silica Window for Transmission from 185 nm - 2.1 µm
- Window has 30 arcmin Wedge to Eliminate Fringe Patterns and Reduce Etalon Effects
- Fused Silica Tube with Ø1/2" Outer Diameter
- Suitable for Use at Pressures from 10-7 Torr to 5 psi at 25 °C
| Usage Pressure Range | 10-7 Torr to 5 psi @ 25 °C |
| Wedge Angle | 30 ± 10 arcmin |
| Diameter | 1/2" (12.7 mm) |
| Diameter Tolerance | +0.0 / -0.2 mm |
| Thickness | 3.0 mm |
| Thickness Tolerance | ±0.4 mm |
| Clear Aperture | >Ø8 mm |
|
Surface Flatness |
≤λ/20 Over Central Ø5 mm ≤λ/10 Over Full Clear Aperture |
| Surface Quality | 10-5 Scratch-Dig |

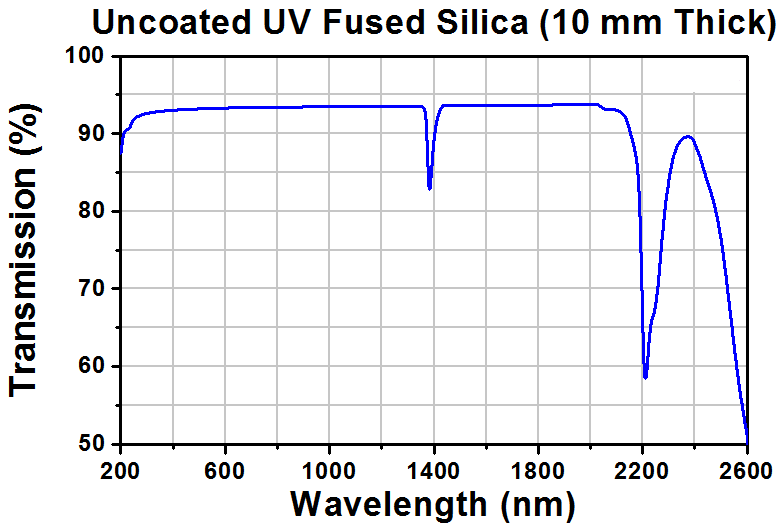

| Wavelength Range | 185 nm - 2.1 μm (Uncoated) |
