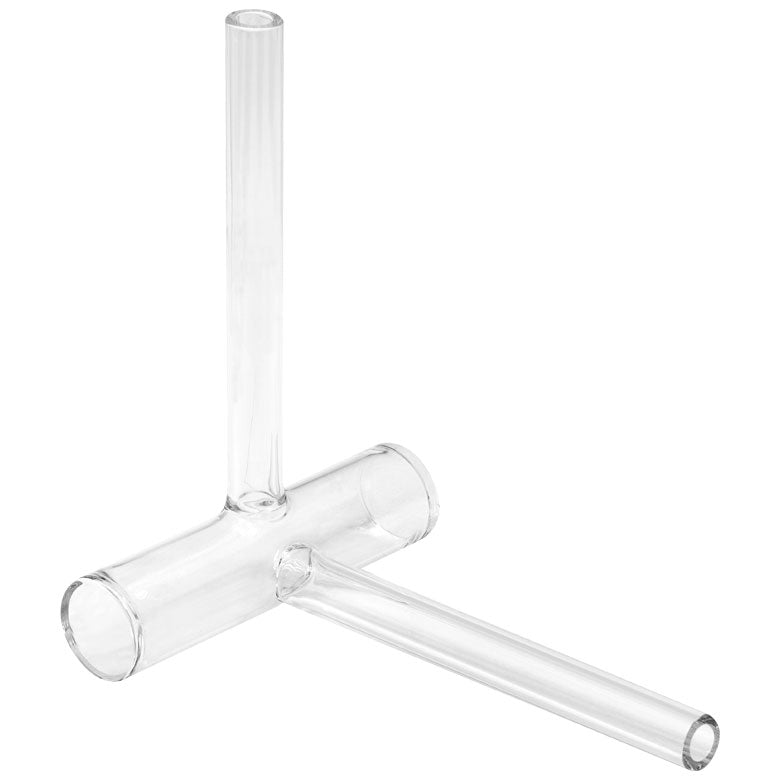

T-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill Tubes
T-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill Tubes
T-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill Tubes
Roll over image to zoom in Click on image to zoom
T-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill TubesT-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill TubesT-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill Tubes

T-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill Tubes

Fosco ConnectSKU: T-GC252
Price:
$ 458.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill Tubes

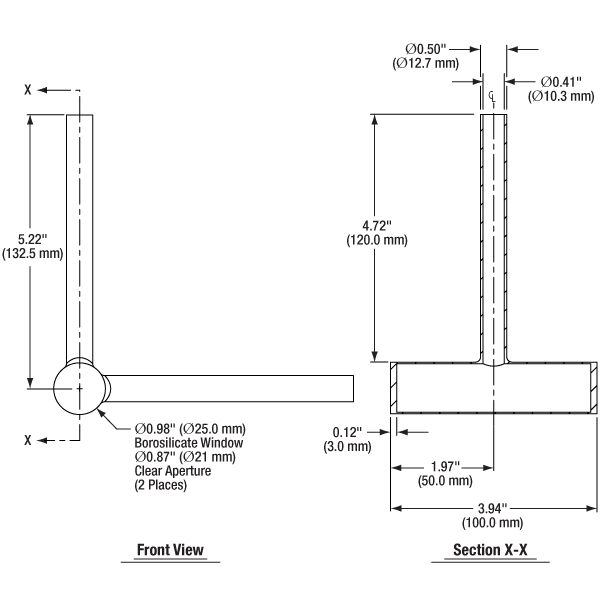

Product Drawing

  • Two Fill Tubes at 90°
  • 100 mm Long Empty Borosilicate Cells
  • Ø25 mm or Ø50 mm Fused Borosilicate Windows
  • Ideal for Sample Flow Through

Glass cells with two fill tubes enable gas samples to flow through the cells while under analysis. These cells do not come with integrated valves and can only isolate a sample by adding valves at other points in the system.

Specifications
Item # T-GC252
Fill Tubes Two at 90°
Valve Type N/A
Window Size Ø25.0 ± 0.5 mm
Window Clear Aperture Ø21.0 mm
Window Thickness 3.0 ± 0.5 mm
Window Perpendicularity ±1°
Cell Length 100.0 ± 3 mm
Pressure @ 25 °C <10-7 Torr to 5 psi
Fill Tube Outer Diameter 0.50" (12.7 mm)
Window & Cell Substrate Uncoated Borosilicate
