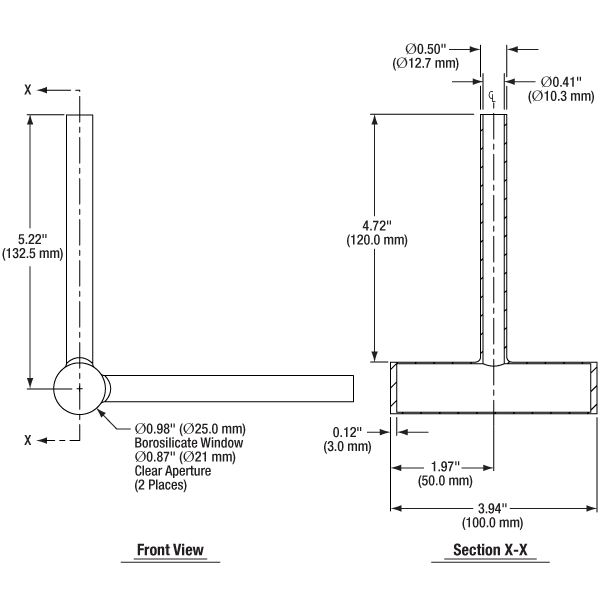

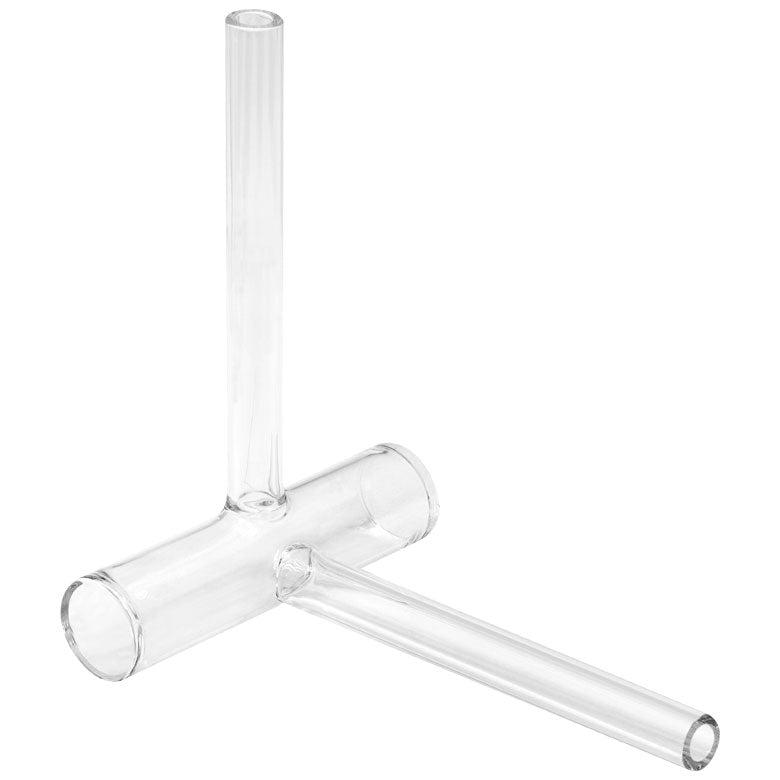

T-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill Tubes
T-GC252 - Empty Glass Cell with Ø25 mm Fused Windows, 100 mm Long, Two Fill Tubes
- Two Fill Tubes at 90°
- 100 mm Long Empty Borosilicate Cells
- Ø25 mm or Ø50 mm Fused Borosilicate Windows
- Ideal for Sample Flow Through
Glass cells with two fill tubes enable gas samples to flow through the cells while under analysis. These cells do not come with integrated valves and can only isolate a sample by adding valves at other points in the system.
| Specifications | |
|---|---|
| Item # | T-GC252 |
| Fill Tubes | Two at 90° |
| Valve Type | N/A |
| Window Size | Ø25.0 ± 0.5 mm |
| Window Clear Aperture | Ø21.0 mm |
| Window Thickness | 3.0 ± 0.5 mm |
| Window Perpendicularity | ±1° |
| Cell Length | 100.0 ± 3 mm |
| Pressure @ 25 °C | <10-7 Torr to 5 psi |
| Fill Tube Outer Diameter | 0.50" (12.7 mm) |

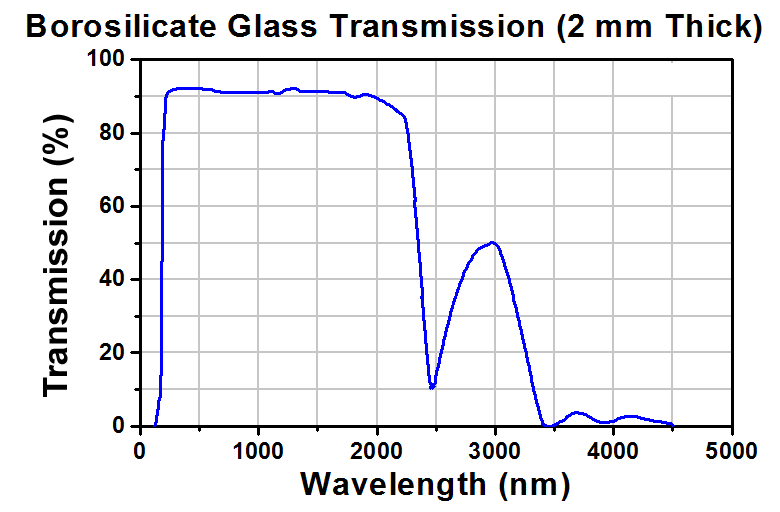

| Window & Cell Substrate | Uncoated Borosilicate |
