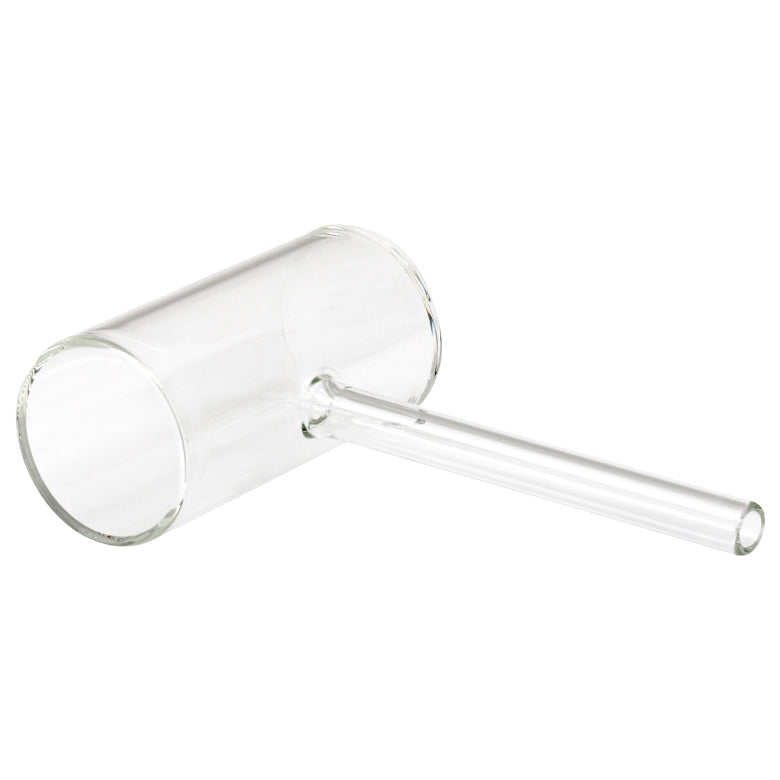

T-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill Tube
T-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill Tube
T-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill Tube
Roll over image to zoom in Click on image to zoom
T-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill TubeT-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill TubeT-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill Tube

T-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill Tube

Fosco ConnectSKU: T-GC501
Price:
$ 520.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill Tube

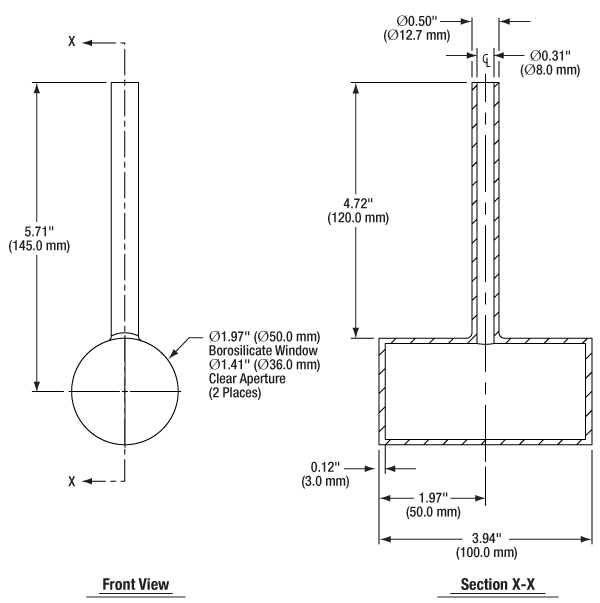

Product Drawing

  • Single Fill Tube
  • Fused Borosilicate Windows
    • Ø12.7 mm Windows: 50 mm
      or 100 mm Long Cells
    • Ø25 mm Windows: 100 mm
      or 500 mm Long Cells
    • Ø50 mm Windows: 100 mm Long Cells
  • Ideal for Sample Isolation
Specifications
Item # T-GC501
Fill Tubes One
Valve Type N/A
Window Size Ø50.0 ± 0.5 mm
Window Clear Aperture Ø36.0 mm
Window Thickness 3.0 ± 0.5 mm
Window Perpendicularity ±1°
Cell Length 100.0 mm
Cell Length Tolerance ±3.0 mm
Pressure @ 25 °C <10-7 Torr to 5 psi
Fill Tube Outer Diameter 0.50" (12.7 mm)

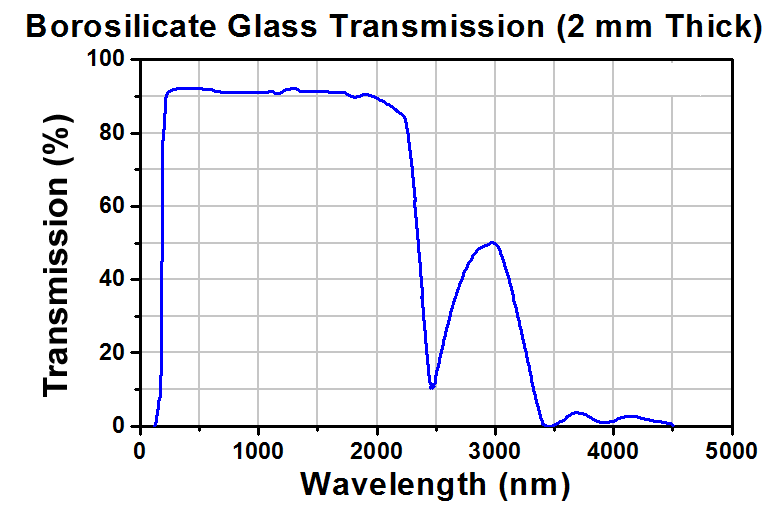

Window & Cell Substrate Uncoated Borosilicate
