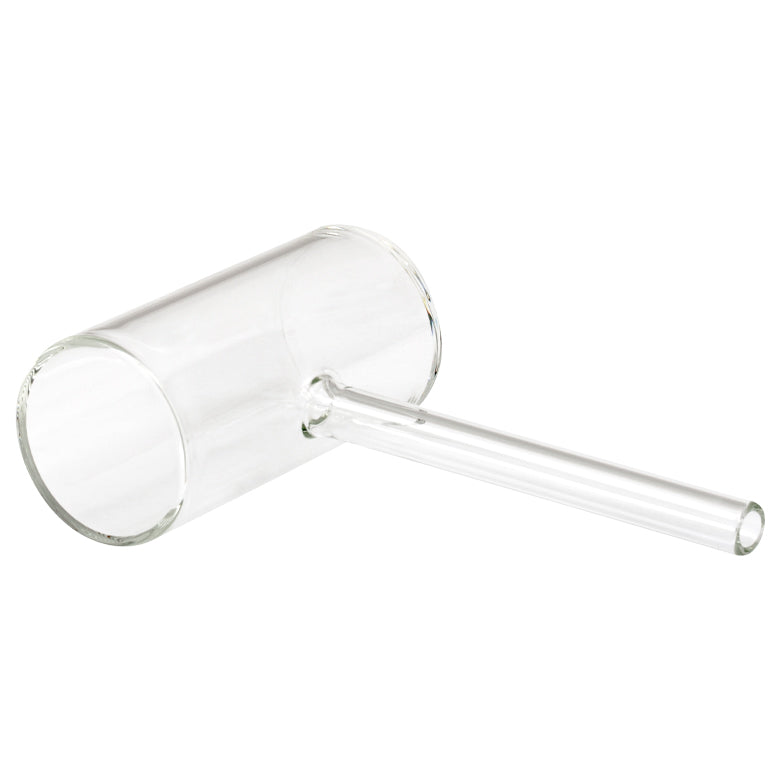

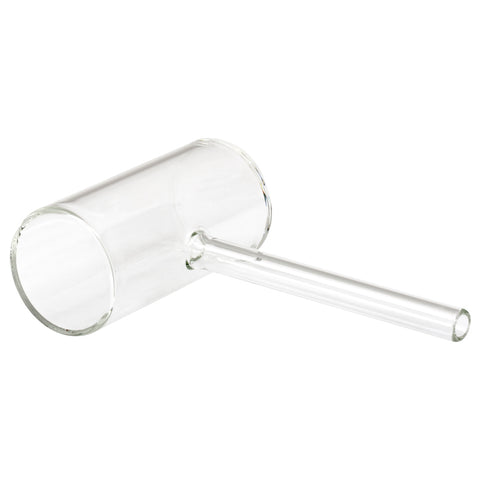

T-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill Tube

Fosco Connect Part No.: T-GC501

  • $ 520.00 or



T-GC501 - Empty Glass Cell with Ø50 mm Fused Windows, 100 mm Long, One Fill Tube

Product Drawing

  • Single Fill Tube
  • Fused Borosilicate Windows
    • Ø12.7 mm Windows: 50 mm
      or 100 mm Long Cells
    • Ø25 mm Windows: 100 mm
      or 500 mm Long Cells
    • Ø50 mm Windows: 100 mm Long Cells
  • Ideal for Sample Isolation
Specifications
Item # T-GC501
Fill Tubes One
Valve Type N/A
Window Size Ø50.0 ± 0.5 mm
Window Clear Aperture Ø36.0 mm
Window Thickness 3.0 ± 0.5 mm
Window Perpendicularity ±1°
Cell Length 100.0 mm
Cell Length Tolerance ±3.0 mm
Pressure @ 25 °C <10-7 Torr to 5 psi
Fill Tube Outer Diameter 0.50" (12.7 mm)

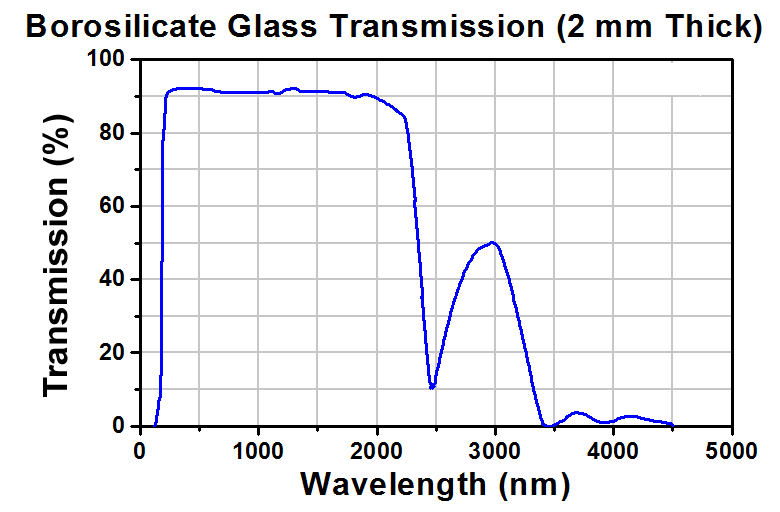

Window & Cell Substrate Uncoated Borosilicate
