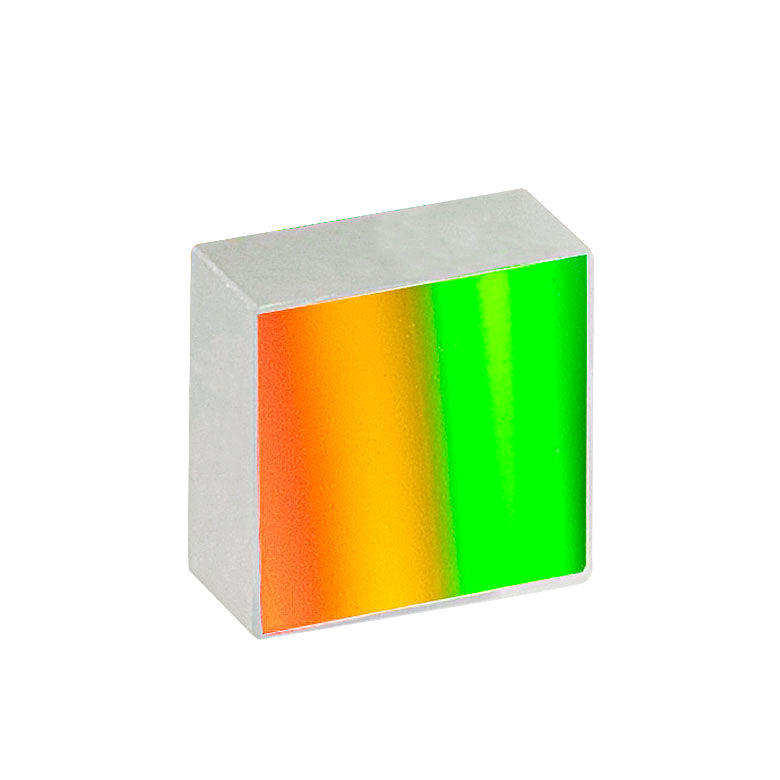

T-GR25-0605 - Ruled Reflective Diffraction Grating, 600/mm, 500 nm Blaze, 25 x 25 x 6 mm

T-GR25-0605 - Ruled Reflective Diffraction Grating, 600/mm, 500 nm Blaze, 25 x 25 x 6 mm

Product Drawing

• Blaze Wavelengths of 400 or 500 nm

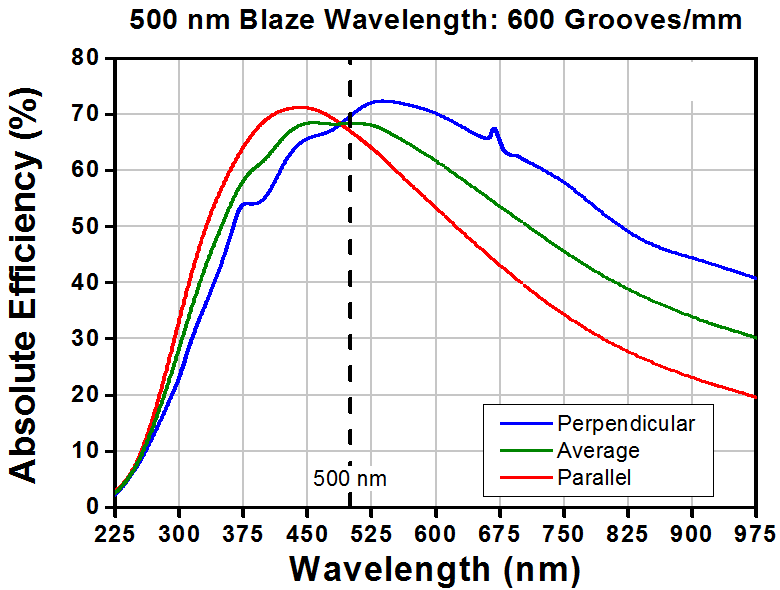

• High Grating Efficiency of 60% to 80% at Blaze Wavelength
• Low Ghosting, <0.5% of Parent Line
• Aluminum Reflective Coating
• Soda Lime Glass Substrate with 300 to 1200 Grooves/mm
• Produced from Ruled Original
• Dimensions (W x H x D) 25 mm x 25 mm x 6 mm
• Blaze Wavelength 500 nm
• Grooves/mm 600
• Blaze Angle 8° 37'
• Dispersion 1.65 nm/mrad
