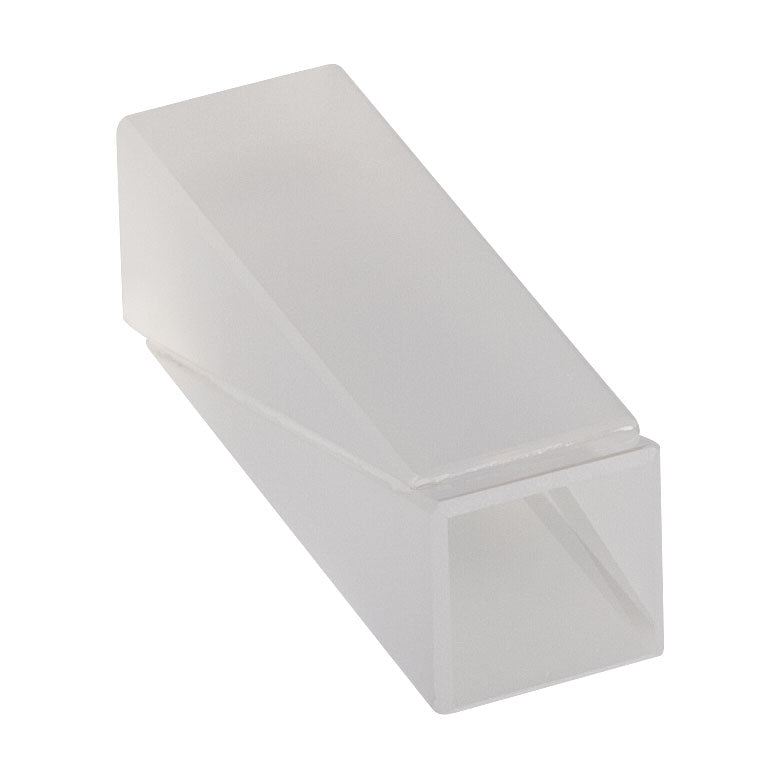

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated
T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated
T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated
T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated
T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated
Roll over image to zoom in Click on image to zoom
T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, UncoatedT-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, UncoatedT-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, UncoatedT-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, UncoatedT-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

Fosco ConnectSKU: T-GTH10
Price:
$ 925.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

Product Drawing

Damage Threshold Specifications
Laser Output Damage Threshold
Pulsed 2 J/cm2 at 1064 nm, 10 ns, 10 Hz, Ø0.476 mm
CW 2 kW/cm at 1064 nm, Ø0.092 mm
Item # Prefix T-GTH5 T-GTH10
Extinction Ratio 100 000:1
Substrate High Optical Grade Calcite
Wavefront
Distortion 		≤λ/4 Over Clear Aperture
Surface Quality 20-10 Scratch-Dig
Wavelength Range 350 nm to 2.3 µm
Aperture 5.0 mm x 5.0 mm 10.0 mm x 10.0 mm
Dimensions
C 20.6 mm 34.1 mm
D 6.0 mm 11.0 mm
Damage Threshold Specifications
Pulsed 2 J/cm² at 1064 nm, 10 ns, 10 Hz, Ø0.476 mm
CWe 2 kW/cm at 1064 nm, Ø0.092 mm
