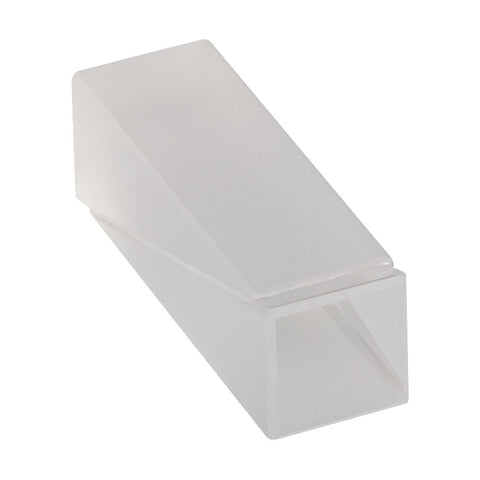

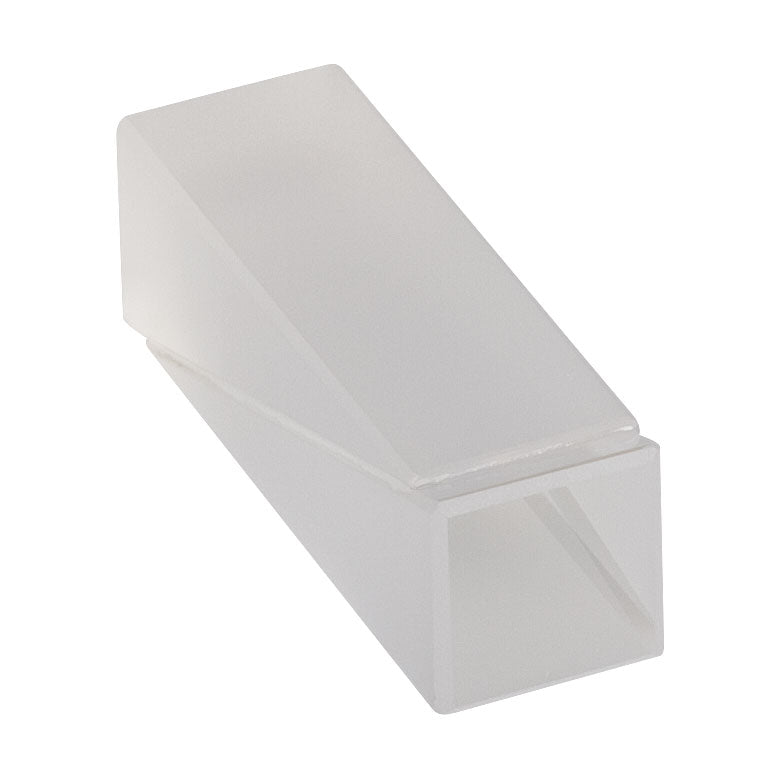

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

Fosco Connect Part No.: T-GTH10

$ 925.00 or

T-GTH10 - Glan-Thompson Calcite Polarizer, 10 mm x 10 mm Clear Aperture, Uncoated

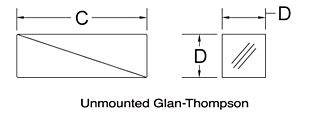

Product Drawing

Damage Threshold Specifications
Laser Output	Damage Threshold
Pulsed	2 J/cm² at 1064 nm, 10 ns, 10 Hz, Ø0.476 mm
CW	2 kW/cm at 1064 nm, Ø0.092 mm

Item # Prefix	T-GTH5	T-GTH10
Extinction Ratio	100 000:1
Substrate	High Optical Grade Calcite
Wavefront Distortion	≤λ/4 Over Clear Aperture
Surface Quality	20-10 Scratch-Dig

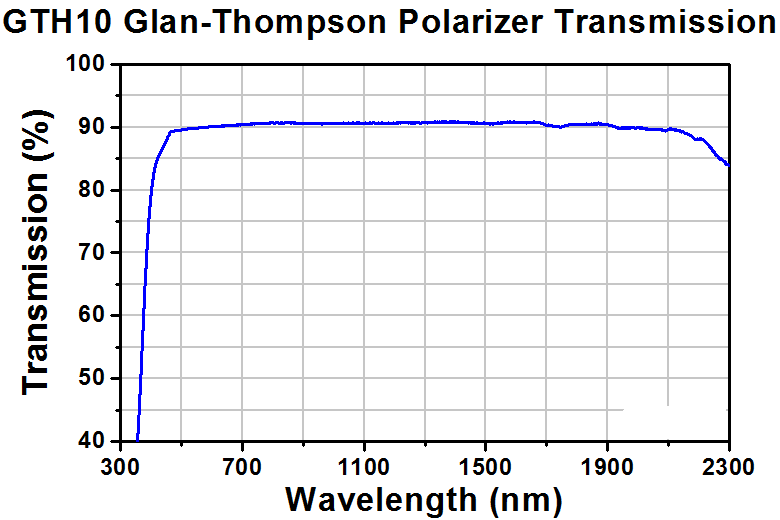

Wavelength Range	350 nm to 2.3 µm
Aperture	5.0 mm x 5.0 mm	10.0 mm x 10.0 mm
Dimensions
C	20.6 mm	34.1 mm
D	6.0 mm	11.0 mm
Damage Threshold Specifications
Pulsed	2 J/cm² at 1064 nm, 10 ns, 10 Hz, Ø0.476 mm
CW^e	2 kW/cm at 1064 nm, Ø0.092 mm
