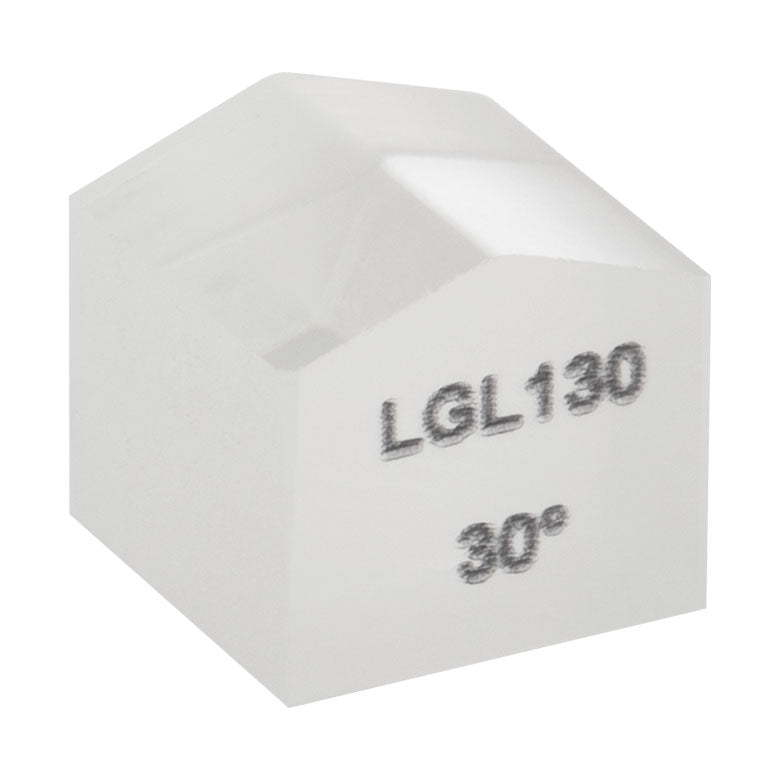

T-LGL130 - Powell Lens for Ø0.8 mm (1/e²), 633 nm Input; 30° Fan Angle
T-LGL130 - Powell Lens for Ø0.8 mm (1/e²), 633 nm Input; 30° Fan Angle
Roll over image to zoom in Click on image to zoom
T-LGL130 - Powell Lens for Ø0.8 mm (1/e²), 633 nm Input; 30° Fan AngleT-LGL130 - Powell Lens for Ø0.8 mm (1/e²), 633 nm Input; 30° Fan Angle

T-LGL130 - Powell Lens for Ø0.8 mm (1/e²), 633 nm Input; 30° Fan Angle

Fosco ConnectSKU: T-LGL130
Price:
$ 325.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-LGL130 - Powell Lens for Ø0.8 mm (1/e²), 633 nm Input; 30° Fan Angle

  • Designed for Ø0.8 mm (1/e2) Collimated Input Beams with Gaussian Intensity Distributions
  • Divergence Fan Angle at 633 nm: 30°, 45°, 60°, or 75°
  • Line Intensity Variation Less Than 30% for 633 nm Input (See Specs Tab for Details)
  • Antireflection (AR) Coated for 400 nm to 700 nm
Input Beam Diameter (1/e2) 0.8 mm
Line Uniformity <30% Variation
Line Straightness <0.1%
Contained Power 80% ± 5%
Clear Aperture >Ø4.0 mm
Substrate Material N-SF6
AR Coating Material
 Magnesium Fluoride (MgF2)
