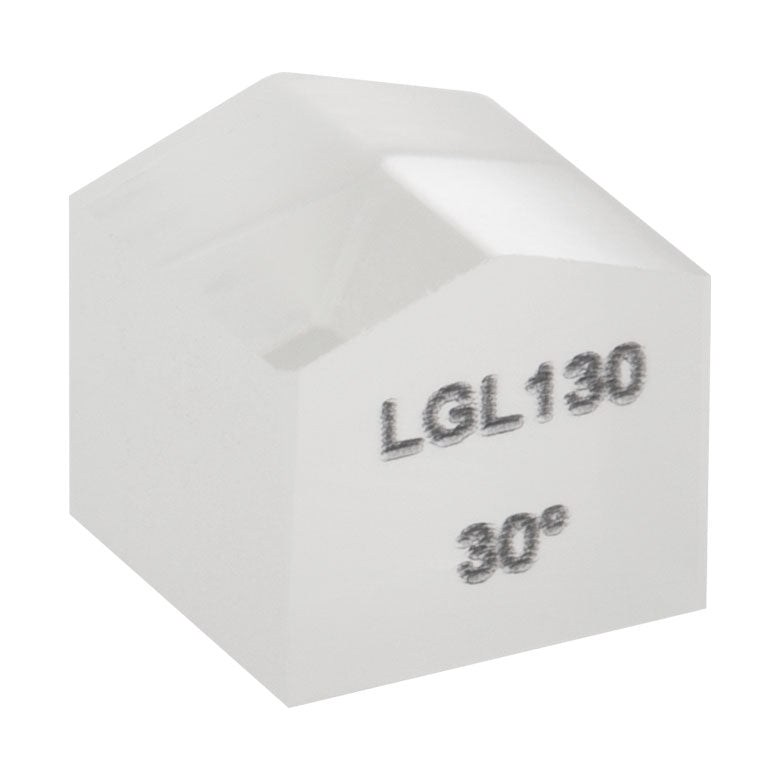

T-LGL130 - Powell Lens for Ø0.8 mm (1/e²), 633 nm Input; 30° Fan Angle
T-LGL130 - Powell Lens for Ø0.8 mm (1/e²), 633 nm Input; 30° Fan Angle
- Designed for Ø0.8 mm (1/e2) Collimated Input Beams with Gaussian Intensity Distributions
- Divergence Fan Angle at 633 nm: 30°, 45°, 60°, or 75°
- Line Intensity Variation Less Than 30% for 633 nm Input (See Specs Tab for Details)
- Antireflection (AR) Coated for 400 nm to 700 nm
| Input Beam Diameter (1/e2) | 0.8 mm | |||
| Line Uniformity | <30% Variation | |||
| Line Straightness | <0.1% | |||
| Contained Power | 80% ± 5% | |||
| Clear Aperture | >Ø4.0 mm | |||
| Substrate Material | N-SF6 | |||
| AR Coating Material |
Magnesium Fluoride (MgF2) | |||
