T-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI
T-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI
T-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI
Roll over image to zoom in Click on image to zoom
T-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOIT-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOIT-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI

T-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI

Fosco ConnectSKU: T-NB1-K07
Price:
$ 250.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI

Product Drawing

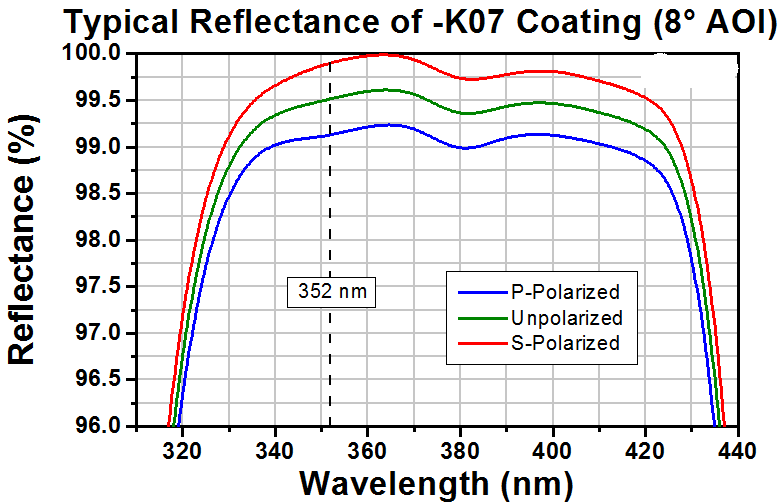

  • Specifications at 0°
    • Unpolarized: R > 99.5% at 352 nm
  • Damage Threshold: 5 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.294 mm)

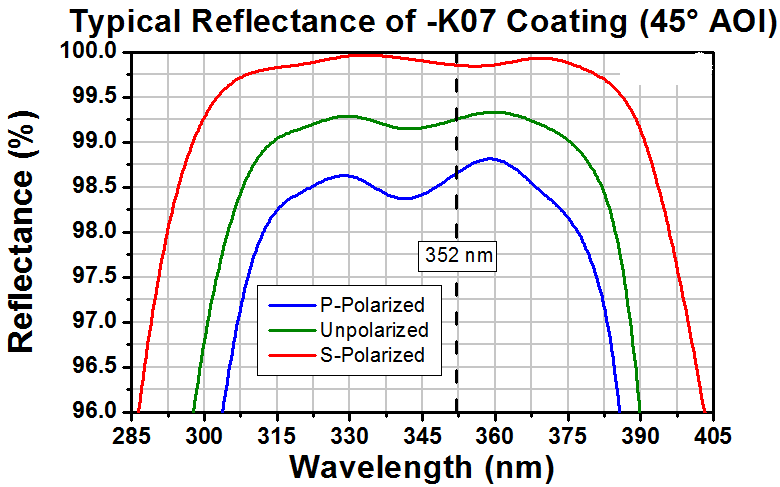

  • Specifications at 45°
    • S Polarization: R > 99.0% at 352 nm
    • P Polarization: R > 98.7% at 352 nm
Damage Threshold Specifications
Coating Designation
(Item # Suffix)		 Damage Threshold
-K07 5 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.294 mm)
