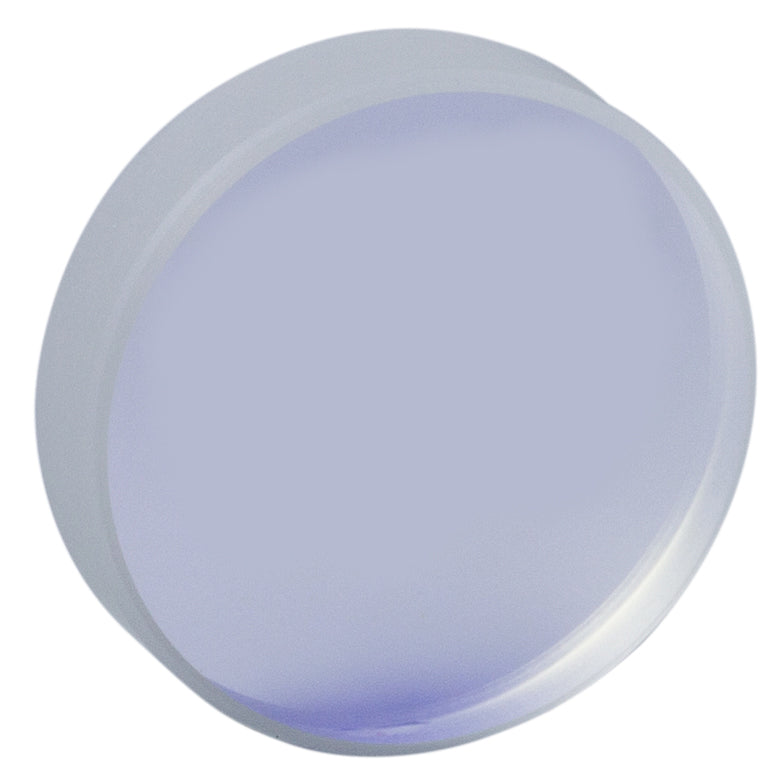

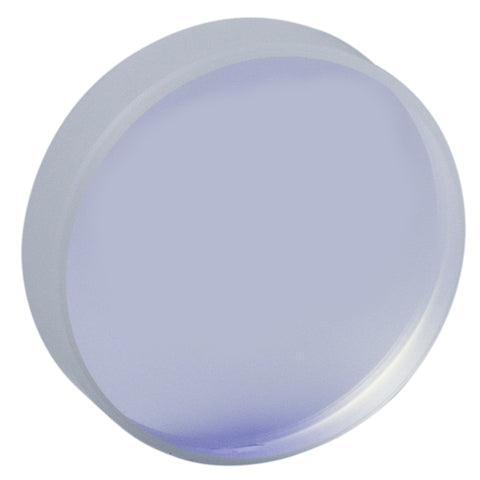

T-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI
T-NB1-K07 - Ø1" Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI

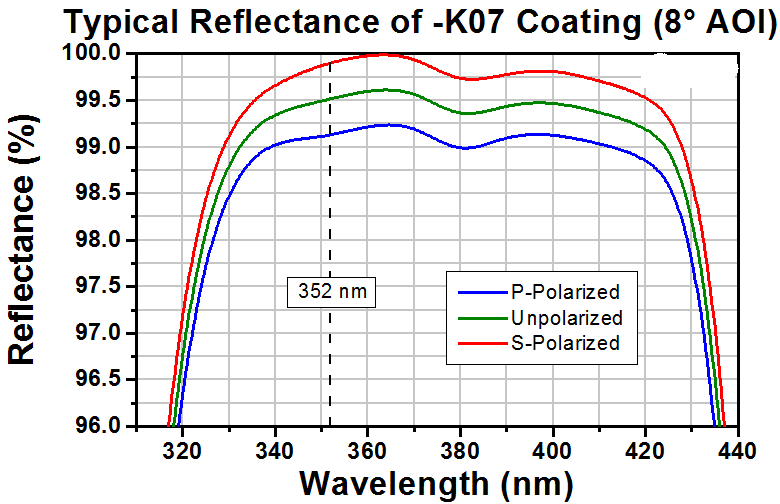

- Specifications at 0°
- Unpolarized: R > 99.5% at 352 nm
- Damage Threshold: 5 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.294 mm)

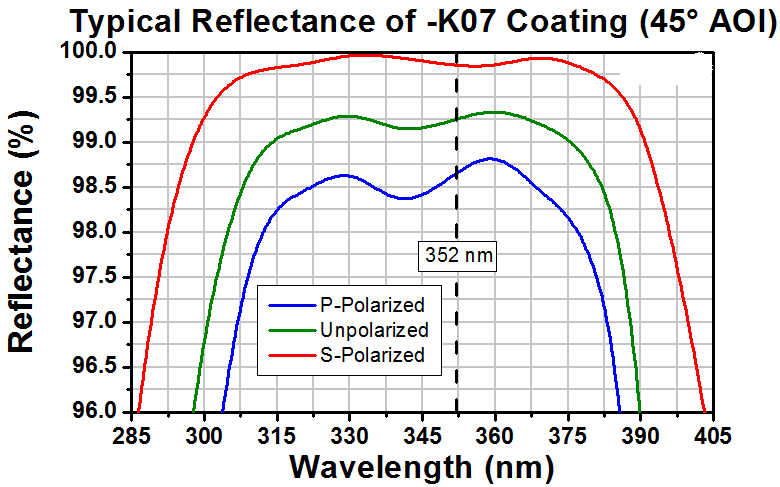

- Specifications at 45°
- S Polarization: R > 99.0% at 352 nm
- P Polarization: R > 98.7% at 352 nm
| Damage Threshold Specifications | |
|---|---|
| Coating Designation (Item # Suffix) |
Damage Threshold |
| -K07 | 5 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.294 mm) |
