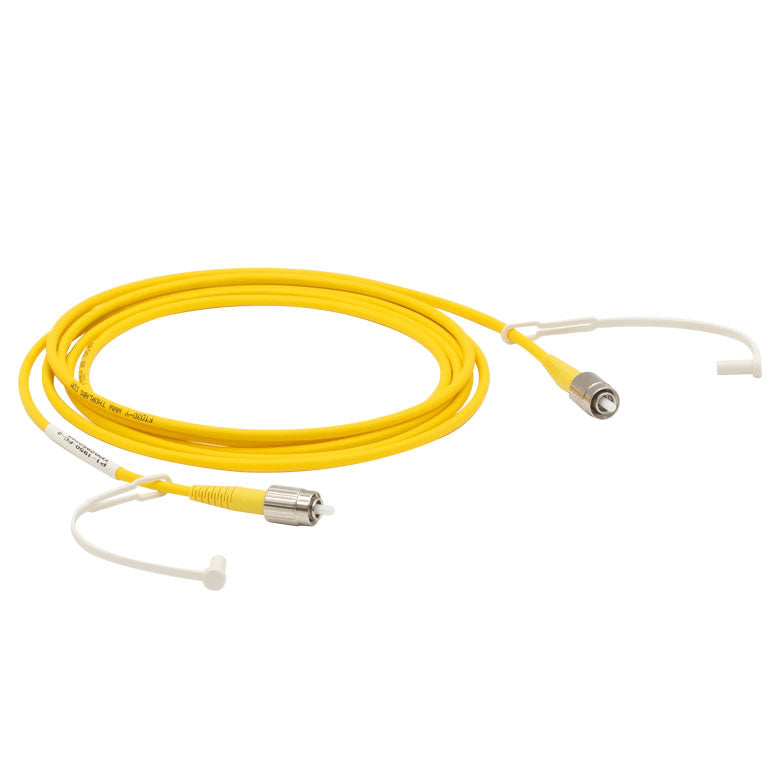

T-P1-SMF28Y-FC-1 - Single Mode Patch Cable, 1260-1625 nm, FC/PC, Ø900 µm Jacket, 1 m Long

T-P1-SMF28Y-FC-1 - Single Mode Patch Cable, 1260-1625 nm, FC/PC, Ø900 µm Jacket, 1 m Long

• SM Patch Cables for Signal Transmission from 320 nm to 2200 nm
• FC/PC 2.0 mm Narrow Key Connectors on Both Ends
• Low Back Reflections (High Return Loss): 50 dB (Typ.)
• Available from Stock
• Two Dust Caps Included
• Fiber Type SMF-28 Ultra
• Operating Wavelength 1260 - 1625 nm
• Cutoff Wavelength <1260 nm
• Mode Field Diameter 9.2 ± 0.4 µm @ 1310 nm,  10.4 ± 0.5 µm @ 1550 nm
• Cladding Diameter 125 ± 0.7 µm
• Coating Diameter 242 ± 5 µm
• Max Attenuation ≤0.32 dB/km @ 1310 nm, ≤0.18 dB/km @ 1550 nm
• NA 0.14
• Connectors FC/PC, 2.0 mm Narrow Key
• Jacket Ø900 µm Yellow Hytrel^®b Tubing
