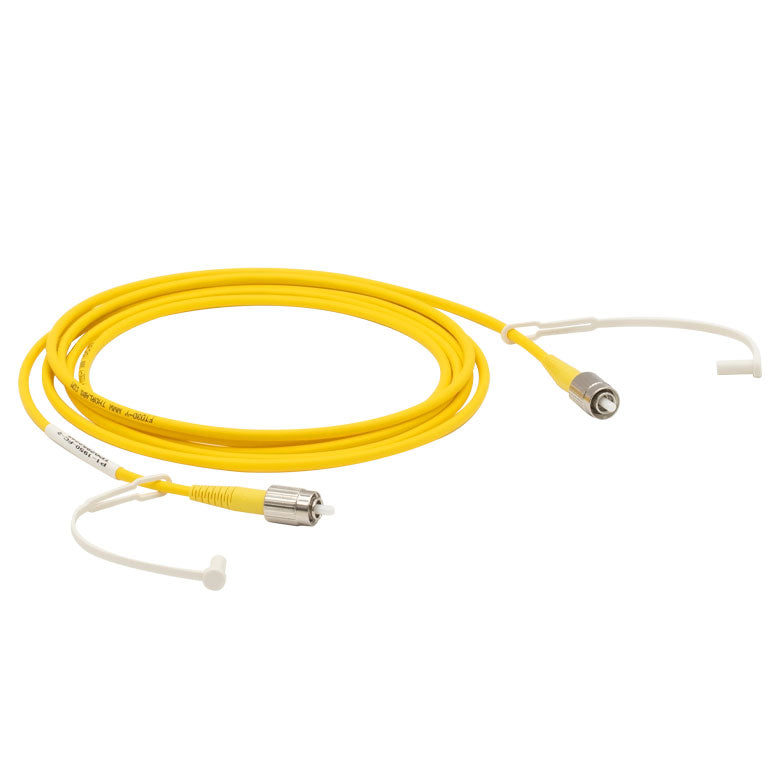

T-P1-SMF28Y-FC-1 - Single Mode Patch Cable, 1260-1625 nm, FC/PC, Ø900 µm Jacket, 1 m Long

Fosco Connect Part No.: T-P1-SMF28Y-FC-1

  • $ 75.00 or



T-P1-SMF28Y-FC-1 - Single Mode Patch Cable, 1260-1625 nm, FC/PC, Ø900 µm Jacket, 1 m Long

  • SM Patch Cables for Signal Transmission from 320 nm to 2200 nm
  • FC/PC 2.0 mm Narrow Key Connectors on Both Ends
  • Low Back Reflections (High Return Loss): 50 dB (Typ.)
  • Available from Stock
  • Two Dust Caps Included
  • Fiber Type SMF-28 Ultra
  • Operating Wavelength 1260 - 1625 nm
  • Cutoff Wavelength <1260 nm
  • Mode Field Diameter 9.2 ± 0.4 µm @ 1310 nm,  10.4 ± 0.5 µm @ 1550 nm
  • Cladding Diameter 125 ± 0.7 µm
  • Coating Diameter 242 ± 5 µm
  • Max Attenuation ≤0.32 dB/km @ 1310 nm, ≤0.18 dB/km @ 1550 nm
  • NA 0.14
  • Connectors FC/PC, 2.0 mm Narrow Key
  • Jacket Ø900 µm Yellow Hytrel®b Tubing
