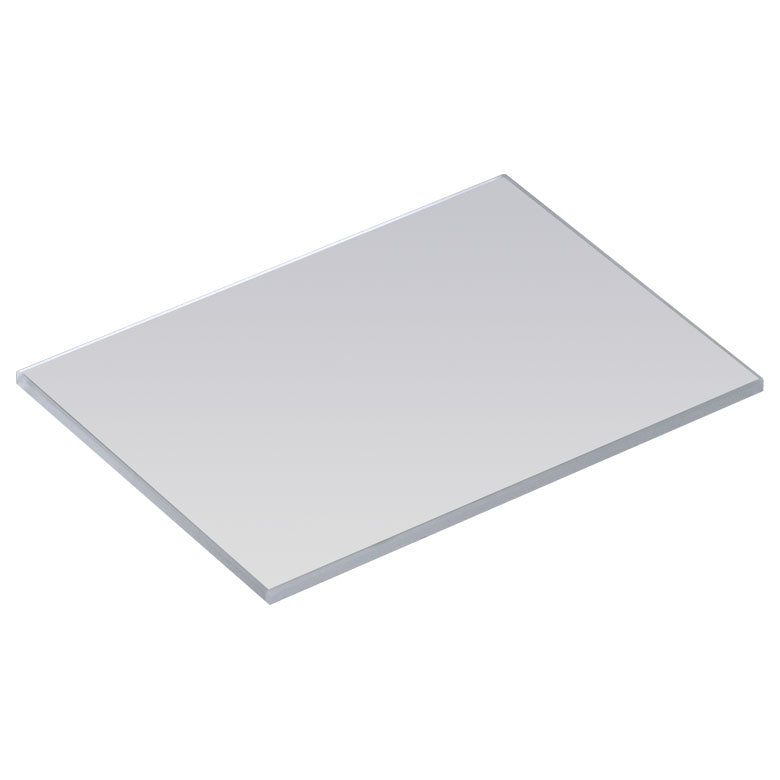

T-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mm
T-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mm
T-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mm
Roll over image to zoom in Click on image to zoom
T-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mmT-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mmT-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mm

T-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mm

Fosco ConnectSKU: T-WG41010R
Price:
$ 245.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mm

Product Drawing

  • Five Sizes Available
    • Ø1/2": 3.0 mm Thick
    • Ø1": 1.0 mm or 5.0 mm Thick
    • 25 mm x 36 mm: 1.0 mm Thick
    • Ø1.5": 4.04 mm Thick
    • Ø2": 12.0 mm Thick

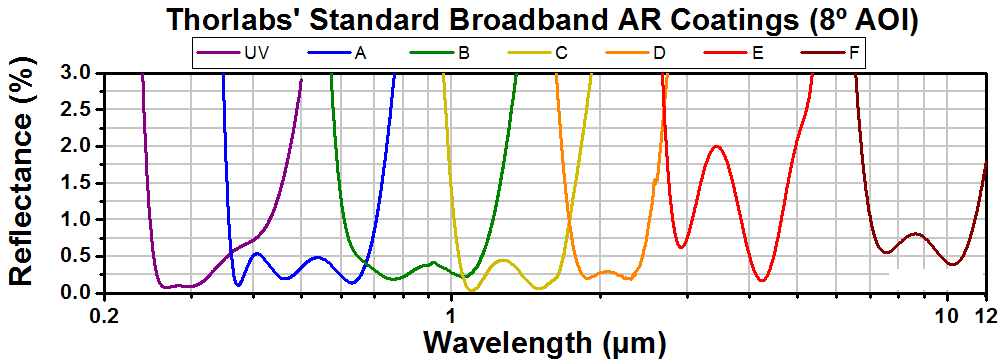

  • Available Uncoated or with One of Four Broadband AR Coatings
    • 245 - 400 nm (-UV Coating Designation)
    • 350 - 700 nm (-A Coating Designation)
    • 650 - 1050 nm (-B Coating Designation)
    • 1050 - 1700 nm (-C Coating Designation)
Item # T-WG41010R
Size 25 mm x 36 mm
Size Tolerance -
Thickness 1.0 mm
Thickness Tolerance ±0.1 mm
Clear Aperture >22.5 mm x 32.4 mm
Parallelism <3 arcmin
Surface Flatness -
Transmitted Wavefront Error λ/4
Surface Quality 40-20 Scratch-Dig

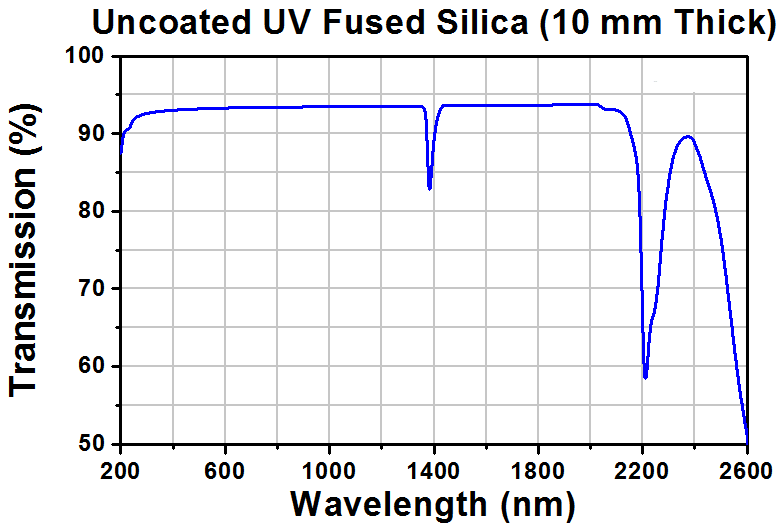

Wavelength Range 185 nm - 2.1 μm (Uncoated)
Substrate UV Fused Silica
