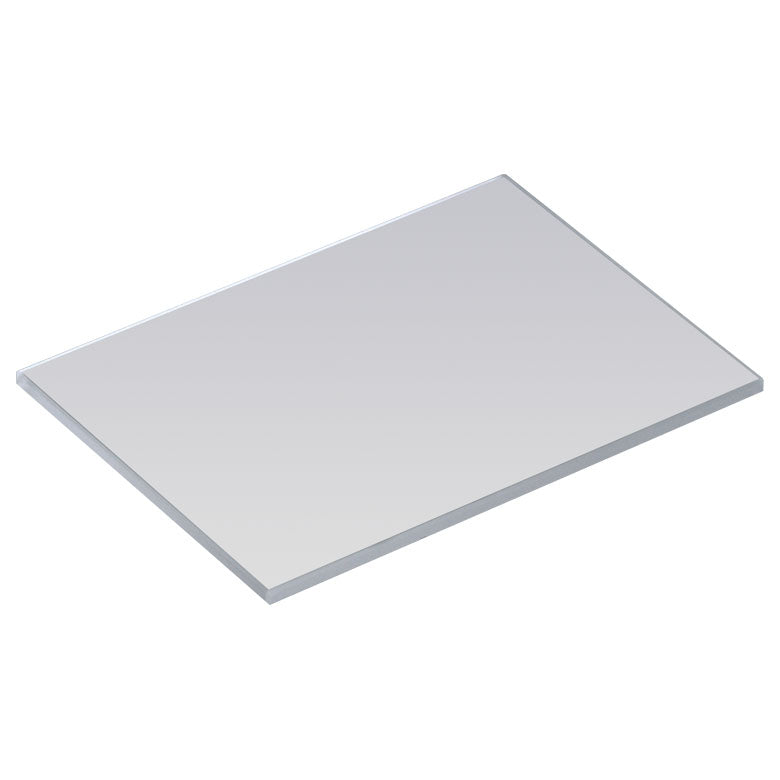

T-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mm
T-WG41010R - 25 mm x 36 mm UVFS Broadband Precision Window, Uncoated, t = 1 mm
- Five Sizes Available
-
- Ø1/2": 3.0 mm Thick
- Ø1": 1.0 mm or 5.0 mm Thick
- 25 mm x 36 mm: 1.0 mm Thick
- Ø1.5": 4.04 mm Thick
- Ø2": 12.0 mm Thick

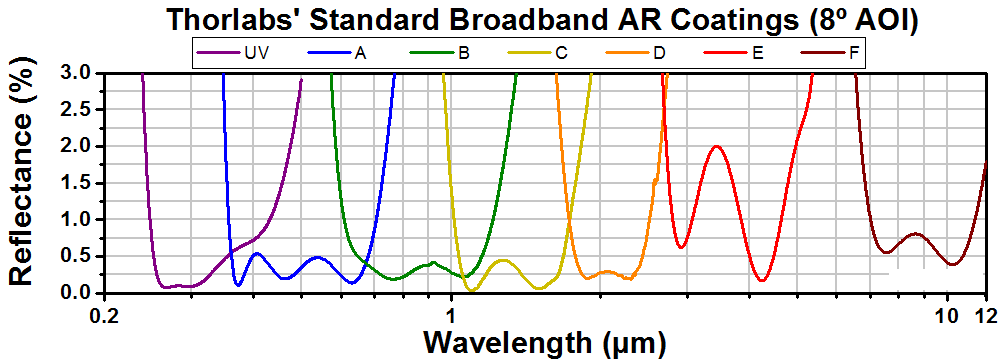

- Available Uncoated or with One of Four Broadband AR Coatings
-
- 245 - 400 nm (-UV Coating Designation)
- 350 - 700 nm (-A Coating Designation)
- 650 - 1050 nm (-B Coating Designation)
- 1050 - 1700 nm (-C Coating Designation)
| Item # | T-WG41010R |
|---|---|
| Size | 25 mm x 36 mm |
| Size Tolerance | - |
| Thickness | 1.0 mm |
| Thickness Tolerance | ±0.1 mm |
| Clear Aperture | >22.5 mm x 32.4 mm |
| Parallelism | <3 arcmin |
| Surface Flatness | - |
| Transmitted Wavefront Error | λ/4 |
| Surface Quality | 40-20 Scratch-Dig |

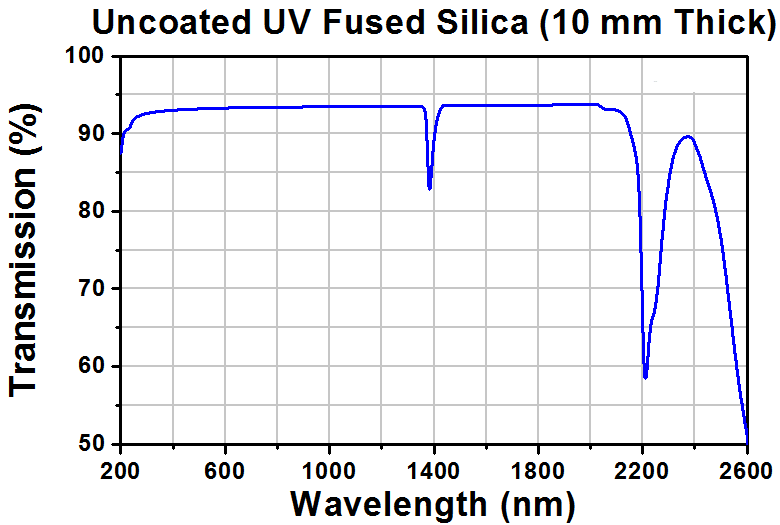

| Wavelength Range | 185 nm - 2.1 μm (Uncoated) |
| Substrate | UV Fused Silica |
