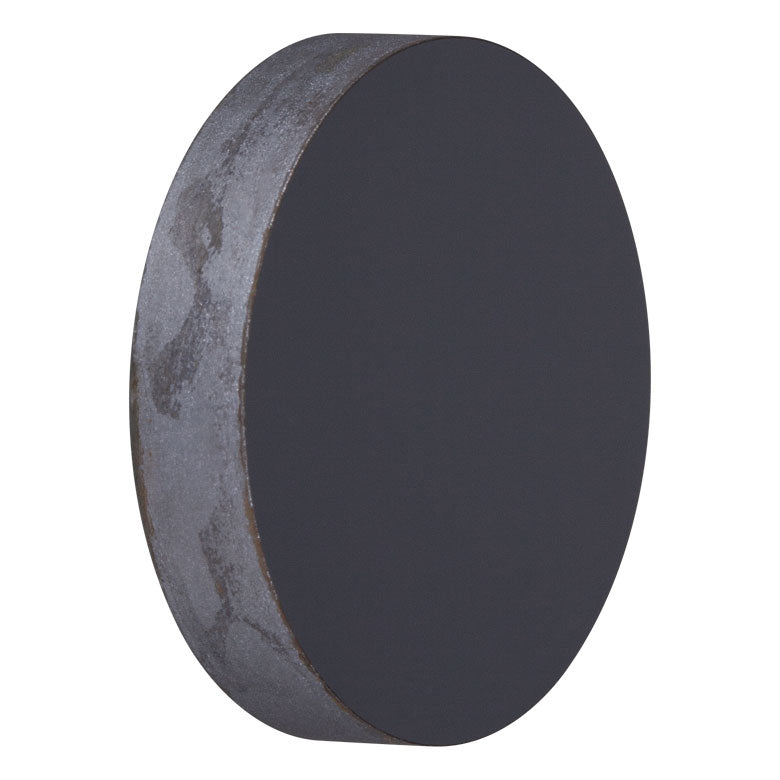

T-WG81050 - Ø1" Silicon Broadband Precision Window, Uncoated
T-WG81050 - Ø1" Silicon Broadband Precision Window, Uncoated
Roll over image to zoom in Click on image to zoom
T-WG81050 - Ø1" Silicon Broadband Precision Window, UncoatedT-WG81050 - Ø1" Silicon Broadband Precision Window, Uncoated

T-WG81050 - Ø1" Silicon Broadband Precision Window, Uncoated

Fosco ConnectSKU: T-WG81050
Price:
$ 225.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-WG81050 - Ø1" Silicon Broadband Precision Window, Uncoated

Product Drawing

  • 1/2" and 1" Diameters Available
  • Ideal for IR Applications in the 1.2 - 8 µm Spectral Range
  • Available Uncoated or AR Coated for <2% Average Reflectance from 3 - 5 µm
Item # T-WG80530 T-WG81050
Diameter  1/2" (12.7 mm) 1" (25.4 mm)
Diameter Tolerance +0.0 / -0.2 mm
Thickness 3.0 mm 5.0 mm
Thickness Tolerance ±0.1 mm
Clear Aperture >90% Diameter
Parallelism ≤2 arcmin
Surface Flatness λ/2 over Clear Aperture
Surface Quality 40-20 Scratch-Dig
Wavelength Range 1.2 - 8.0 μm (Uncoated)
Substrate Silicon

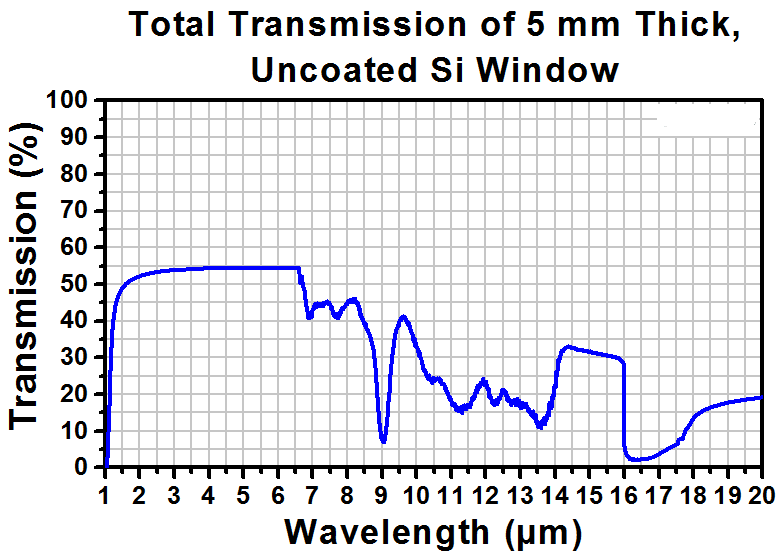

Transmission Data
Raw Data
