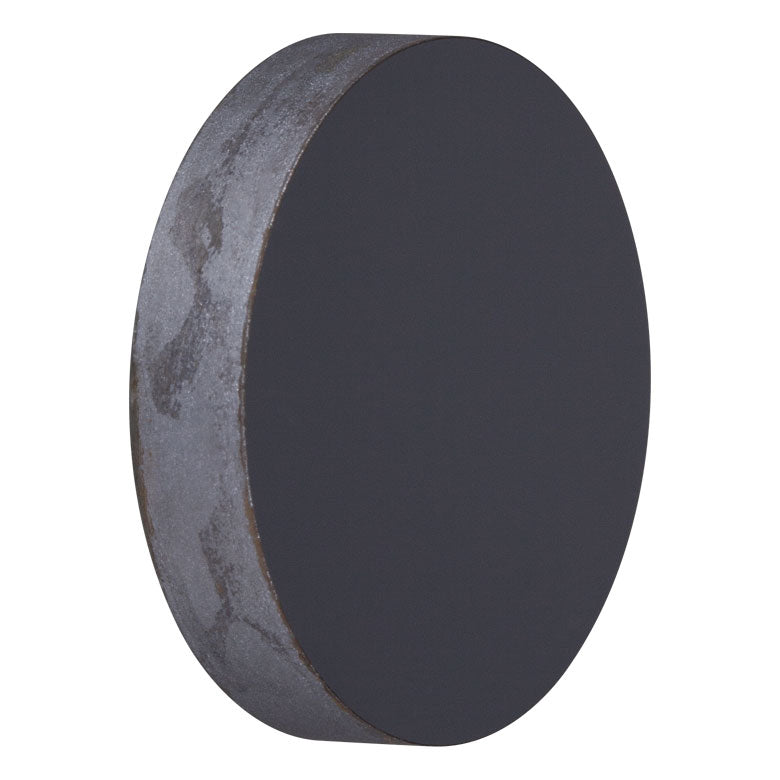

T-WG81050 - Ø1" Silicon Broadband Precision Window, Uncoated
T-WG81050 - Ø1" Silicon Broadband Precision Window, Uncoated
- 1/2" and 1" Diameters Available
- Ideal for IR Applications in the 1.2 - 8 µm Spectral Range
- Available Uncoated or AR Coated for <2% Average Reflectance from 3 - 5 µm
| Item # | T-WG80530 | T-WG81050 |
|---|---|---|
| Diameter | 1/2" (12.7 mm) | 1" (25.4 mm) |
| Diameter Tolerance | +0.0 / -0.2 mm | |
| Thickness | 3.0 mm | 5.0 mm |
| Thickness Tolerance | ±0.1 mm | |
| Clear Aperture | >90% Diameter | |
| Parallelism | ≤2 arcmin | |
| Surface Flatness | λ/2 over Clear Aperture | |
| Surface Quality | 40-20 Scratch-Dig | |
| Wavelength Range | 1.2 - 8.0 μm (Uncoated) | |
| Substrate | Silicon | |

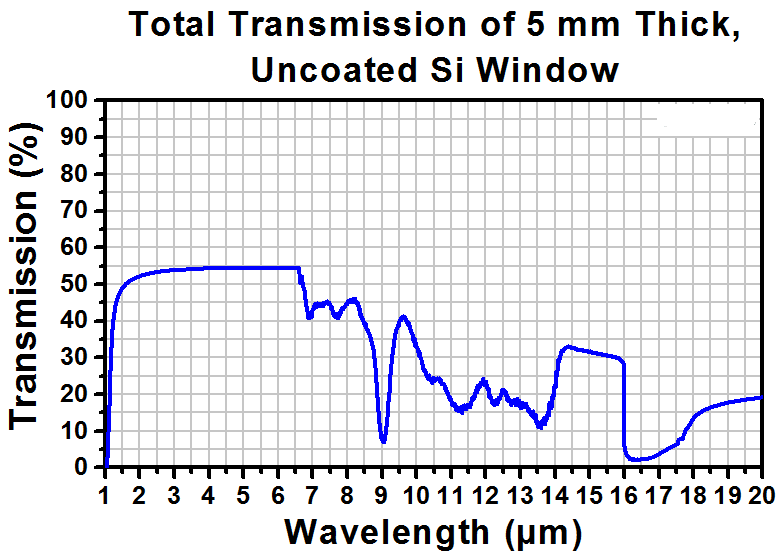

| Transmission Data |
Raw Data |
|
