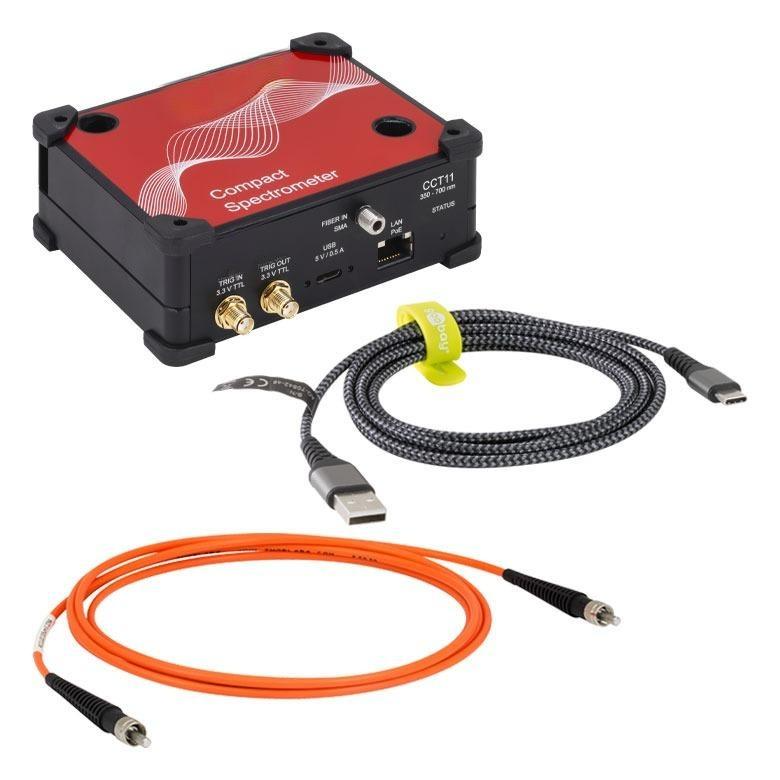

TH-CCT11 - Compact Spectrometer, Visible, 350 - 700 nm, <0.5 nm Resolution

Compact CMOS Spectrometers provide a portable, high-performance solution for wavelength analysis in a crossed Czerny-Turner design.

Available in three wavelength ranges (200–1000 nm, 350–700 nm, and 500–1000 nm) with resolutions from <0.5 to <2 nm, these spectrometers are wavelength calibrated, amplitude corrected, and shipped with a calibration report and test data.

They feature PC control via USB or Ethernet, accept SMA905 fiber inputs, and can be paired with optional cosine correctors for free-space measurements. Ideal for precision laboratory or field applications, We recommend annual recalibration or recalibration when using new patch cables.

Key Benefits

• Compact, portable crossed Czerny-Turner spectrometer design

• Choose from three wavelength ranges: 200–1000 nm, 350–700 nm, 500–1000 nm

• High resolution: <0.5 to <2 nm (model dependent)

• Pre-calibrated with amplitude correction and included test data

• PC-controlled via USB or Ethernet connection

• SMA905 fiber input; optional cosine corrector for free-space applications

• Annual recalibration service available for optimal accuracy

Specifications

• Type: CMOS-based crossed Czerny-Turner spectrometer

• Wavelength Ranges: 200–1000 nm, 350–700 nm, 500–1000 nm

• Resolution: <0.5 to <2 nm

• Input Port: SMA905 connectorized fibers

• Connectivity: USB or Ethernet

• Calibration: Wavelength calibrated and amplitude corrected, calibration report included

• Optional Accessory: CCSB1 cosine corrector for free-space use

Specs

All technical data are valid at 23 ± 5 °C, at 45 ± 15% relative humidity (non-condensing), and when the spectrometer is used in combination with the included fiber patch cables.

• Non-condensing
• If the fiber patch cable is switched or replaced, the spectrometer will need to be factory recalibrated to update the amplitude correction. We offer a factory recalibration service, which can be ordered by scrolling to the bottom of the page and selecting Item # CAL-CCT.
• The M16L01 SMA to FC/PC fiber patch cable uses the same FG050LGA fiber as the M14L02 patch cable included with CCT12 spectrometers. Each spectrometer's amplitude correction is accurate only with the included patch cable.

Compact CMOS Spectrometers – Features

• Models available for broadband, visible, and NIR spectral ranges

• Internal shutter (<10 ms switching time) allows fast background subtraction

• Amplitude corrected and wavelength calibrated

• Input and output triggers with low jitter (1 μs) for external synchronization (TTL)

• PC connection via USB or Ethernet interface

• Rugged crossed Czerny-Turner spectrometer design

• 2048 or 4096 pixel CMOS line array

• Includes multimode fiber patch cable

• Compact size: 112.0 mm x 93.8 mm x 41.5 mm (4.41" x 3.69" x 1.63")

• Horizontal or vertical mounting options:

  • Horizontal mounting using two through holes for 1/4"-20 (M6) screws

  • Two slots for vertical mounting with CL4 clamps

• Cosine correctors available separately for free-space input

• Round-to-linear fiber bundles optimized for spectrometer use also available

These compact crossed Czerny-Turner spectrometers are designed for high-performance measurements in a small footprint, roughly the size of a portable hard drive. Models are available with spectral ranges of 200–1000 nm, 350–700 nm, and 500–1000 nm, with resolutions from better than 2 nm down to sub-nanometer depending on the model. Each unit comes wavelength calibrated and amplitude corrected and is shipped with a calibration report and test data.

Despite their compact design, these spectrometers offer features normally found in larger, more expensive systems. They can be synchronized with other devices using TTL trigger input and output with low jitter (1 μs), making them well-suited for precise timing applications such as Laser-Induced Breakdown Spectroscopy. An internal shutter allows rapid background subtraction, while the included multimode fiber patch cable makes integration into fiber-based systems straightforward.

Mounting Options
For stability and flexibility, units can be mounted horizontally using two through holes for standard 1/4"-20 (M6) screws, or vertically using CL4 clamps.

Software Package
The included software provides full PC control via USB or Ethernet, with a graphical user interface (GUI) as well as drivers for .NET, Python, and NI LabVIEW. Users can view spectra, background, and peaks in a single window, apply algorithms for smoothing, averaging, absorption, or transmission, and compare results against stored profiles. Both user wavelength calibration and factory calibration are supported.

Accessories

• Cosine Correctors: Attach to SMA connectorized fibers or directly to the input port for free-space measurements.

• Fiber Bundles: Linear-to-round fiber bundles optimized for spectrometer use increase signal levels by matching the slit geometry. Reflection probe fiber bundles are also available for spectroscopy applications.

• Patch Cables: Standard SMA-to-SMA patch cable included; additional cables and custom configurations available separately.

Recalibration Service
Annual recalibration is recommended to maintain accuracy. While user wavelength calibration can be performed through the software, amplitude correction requires factory recalibration. Recalibration is also recommended when using a different patch cable than the one originally supplied, as the cable influences amplitude correction.
