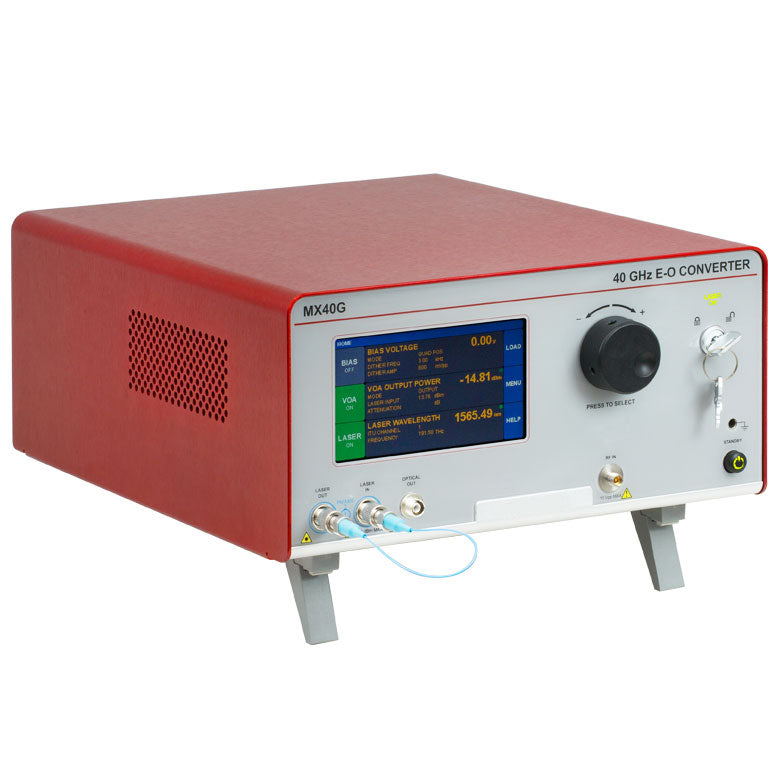

TH-MX40G - Calibrated Electrical-to-Optical Converter, Tunable C-Band Laser, 40 GHz
TH-MX40G - Calibrated Electrical-to-Optical Converter, Tunable C-Band Laser, 40 GHz
| Laser Type | C-Band Tunable Wavelength |
| Wavelength | 1527.6 - 1565.5 nm |
| Frequency Range | 191.50 - 196.25 THz |
| Optical Output Power | 13.5 dBm |
| Frequency Accuracy | ±1.5 GHz |
| Tuning Resolution | 50 GHz |
| Fine Tuning Resolution | 1 MHz |
| Tuning Speed (Between Wavelengths) | 10 s |
| Fine Tuning Range | ±30 GHz |
| Side Mode Suppression Ratio | 55 dB |
| Optical Signal Noise Ratio | 60 dB |
| Intrinsic Linewidth | 10 kHz |
| Relative Intensity Noiseb | -145 dB/Hz (Max) |
| Back Reflection | -14 dB (Max) |
| Polarization Extinction Ratio | 18 dB (Min) |
|
Uncertainty of Supplied Magnitude Responsea |
40 MHz to 40 GHz: ±0.85 dB |
|
| Input RF Connector Type | 2.92 mm Connectorb | |
| Internal Laser | (See Table Below) | |
| External Laserd |
Wavelength Rangee | 1250 nm - 1610 nm |
| Optical Input Power | 20 dBm (Max); 22 dBm (Absolute Max) | |
| Power Calibration Points | 1310 nm, 1550 nm, and 1590 nm | |
| RF Optical Extinction Ratio | 13 dB (Typical Max) | |
| Modulator Drive Voltage (Vπ)f | 5.5 Vpp | |
| Optical Insertion Loss (Typical)g | 5.0 dB (1550 nm); 7.0 dB (1310 nm) | |
| Absolute Stabilityh | 0.20 dB (Dither Mode); 0.25 dB (Ratio Mode)j | |
| Relative Stabilityk | 0.2 dB (Dither Mode); 0.2 dB (Ratio Mode)j | |
| Internal Optical Fiber | PM Ports: PM1310-XP; SM Port: SMF-28 |
|
| Fiber Connectors | FC/PC, 2.0 mm Narrow Key | |
