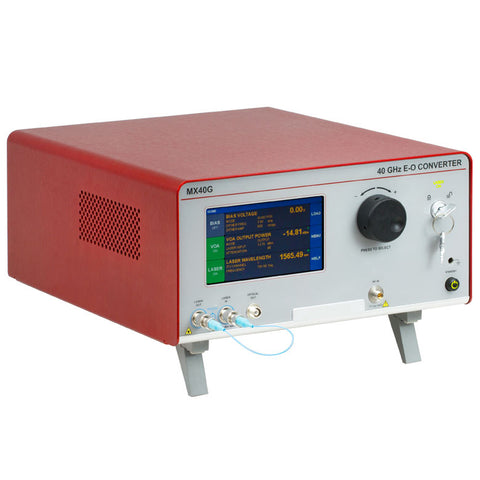

TH-MX40G - Calibrated Electrical-to-Optical Converter, Tunable C-Band Laser, 40 GHz
TH-MX40G - Calibrated Electrical-to-Optical Converter, Tunable C-Band Laser, 40 GHz
Laser Type | C-Band Tunable Wavelength |
Wavelength | 1527.6 - 1565.5 nm |
Frequency Range | 191.50 - 196.25 THz |
Optical Output Power | 13.5 dBm |
Frequency Accuracy | ±1.5 GHz |
Tuning Resolution | 50 GHz |
Fine Tuning Resolution | 1 MHz |
Tuning Speed (Between Wavelengths) | 10 s |
Fine Tuning Range | ±30 GHz |
Side Mode Suppression Ratio | 55 dB |
Optical Signal Noise Ratio | 60 dB |
Intrinsic Linewidth | 10 kHz |
Relative Intensity Noiseb | -145 dB/Hz (Max) |
Back Reflection | -14 dB (Max) |
Polarization Extinction Ratio | 18 dB (Min) |
Uncertainty of Supplied Magnitude Responsea |
40 MHz to 40 GHz: ±0.85 dB |
|
Input RF Connector Type | 2.92 mm Connectorb | |
Internal Laser | (See Table Below) | |
External Laserd |
Wavelength Rangee | 1250 nm - 1610 nm |
Optical Input Power | 20 dBm (Max); 22 dBm (Absolute Max) | |
Power Calibration Points | 1310 nm, 1550 nm, and 1590 nm | |
RF Optical Extinction Ratio | 13 dB (Typical Max) | |
Modulator Drive Voltage (Vπ)f | 5.5 Vpp | |
Optical Insertion Loss (Typical)g | 5.0 dB (1550 nm); 7.0 dB (1310 nm) | |
Absolute Stabilityh | 0.20 dB (Dither Mode); 0.25 dB (Ratio Mode)j | |
Relative Stabilityk | 0.2 dB (Dither Mode); 0.2 dB (Ratio Mode)j | |
Internal Optical Fiber | PM Ports: PM1310-XP; SM Port: SMF-28 |
|
Fiber Connectors | FC/PC, 2.0 mm Narrow Key |
