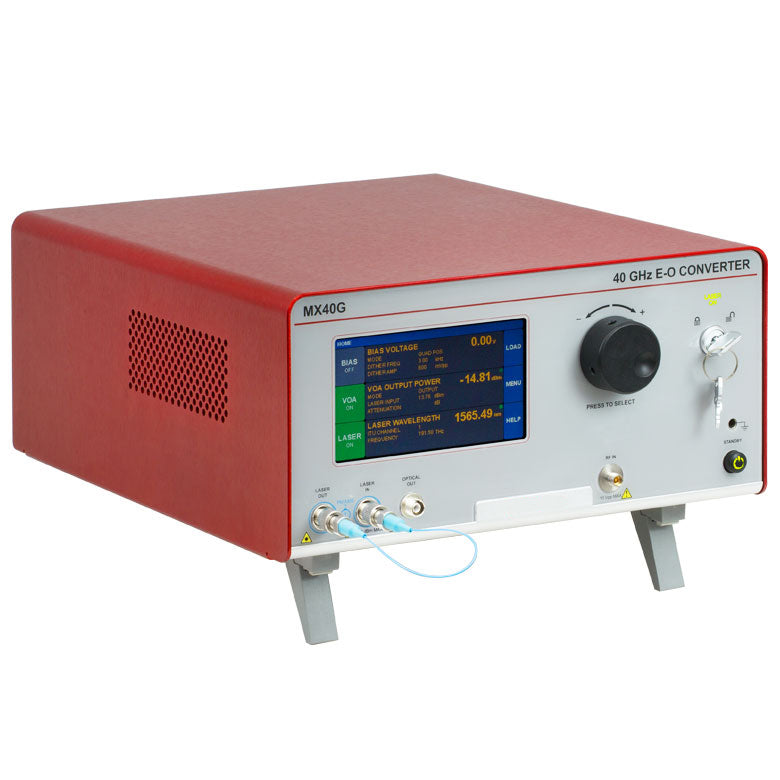

TH-MX40G-LB - Calibrated Electrical-to-Optical Converter, Tunable L-Band Laser, 40 GHz
Product Drawing
| Laser Type |
Fixed Wavelength |
C-Band Tunable Wavelength |
L-Band Tunable Wavelength |
| Wavelength |
1310 nm (Typ.) |
1527.6 - 1565.5 nm |
1570.0 - 1608.8 nm |
| Frequency Range |
- |
191.50 - 196.25 THz |
186.35 - 190.95 THz |
| Optical Output Power |
13.5 dBm |
13.5 dBm |
| Frequency Accuracy |
- |
±1.5 GHz |
| Tuning Resolution |
N/A |
50 GHz |
| Fine Tuning Resolution |
N/A |
1 MHz |
| Tuning Speed (Between Wavelengths) |
N/A |
10 s |
| Fine Tuning Range |
N/A |
±30 GHz |
| Side Mode Suppression Ratio |
35 dB (Min) |
55 dB |
| Optical Signal Noise Ratio |
- |
60 dB |
| Intrinsic Linewidth |
2 MHz |
10 kHz |
| Relative Intensity Noiseb |
- |
-145 dB/Hz (Max) |
| Back Reflection |
- |
-14 dB (Max) |
| Polarization Extinction Ratio |
20 dB |
18 dB (Min) |
| Internal Laser Type |
L-Band, Tunable |
| Internal Laser Wavelength |
1570.0 - 1608.8 nm |
| External Laser Support |
1250 nm - 1610 nm, 20 dBm Max |
| Input RF Connector Type |
2.92 mm Connectorc
|
