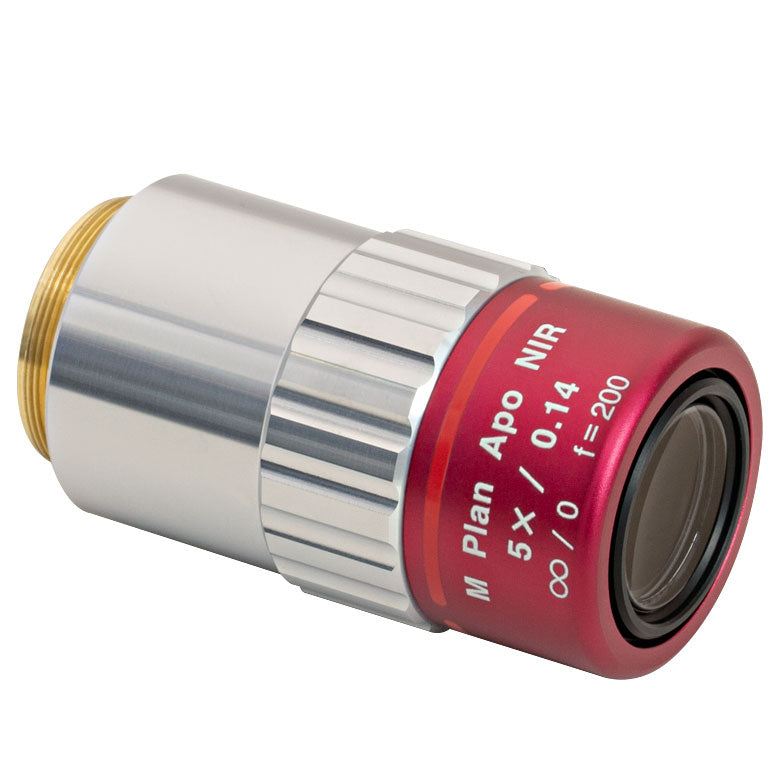

TH-MY5X-822 - 5X Mitutoyo Plan Apochromat Objective, 480 - 1800 nm, 0.14 NA, 37.5 mm WD

TH-MY5X-822 - 5X Mitutoyo Plan Apochromat Objective, 480 - 1800 nm, 0.14 NA, 37.5 mm WD

Product Drawing

• Long Working Distance
• Infinity-Corrected Plan Apochromat Design
• M26 x 0.706 Threading
• Designed for a Tube Lens Focal Length of 200 mm
• 95 mm Parfocal Length

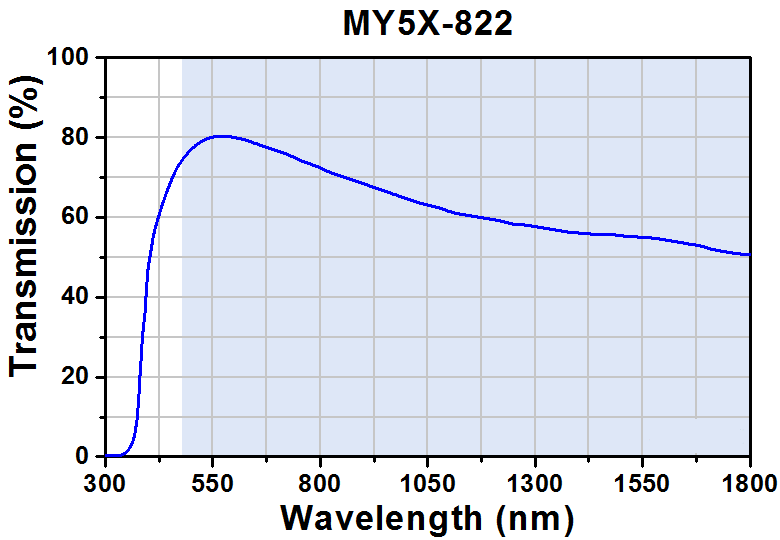

Wavelength Range 480 - 1800 nm

Magnification 5X

Working Distance 37.5  mm

Effective Focal Length 40 mm

Numerical Aperture 0.14

Entrance Pupil Diameter 11.2 mm

Resolution 2.4 µm

Optical Field Number 24

Parfocal Length 95 mm

Cover Glass Thickness 0 mm

AR Coating Reflectance Proprietary

Objective Threading M26 x 0.706; 5 mm Depth
