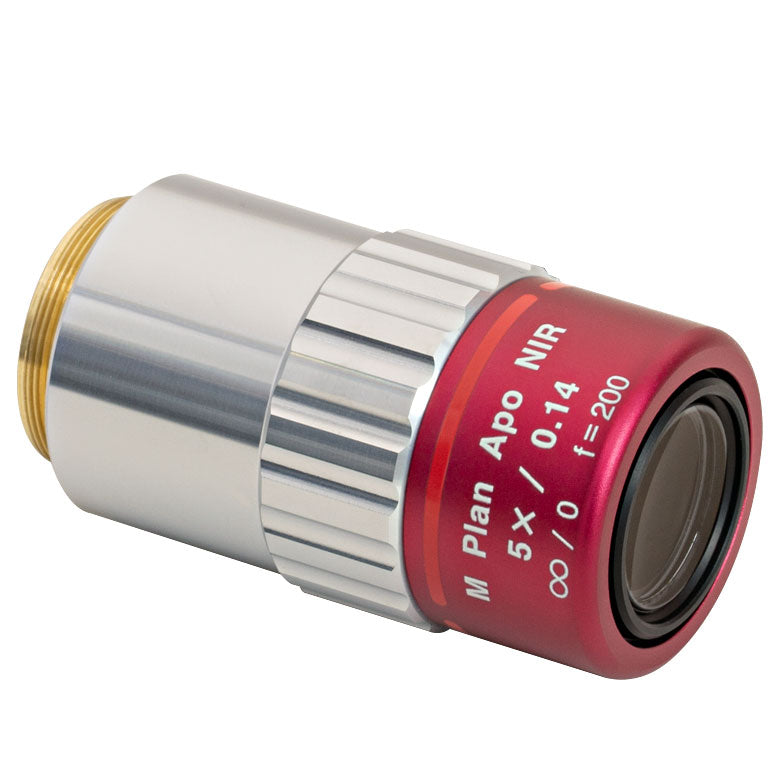

TH-MY5X-822 - 5X Mitutoyo Plan Apochromat Objective, 480 - 1800 nm, 0.14 NA, 37.5 mm WD
TH-MY5X-822 - 5X Mitutoyo Plan Apochromat Objective, 480 - 1800 nm, 0.14 NA, 37.5 mm WD
- Long Working Distance
- Infinity-Corrected Plan Apochromat Design
- M26 x 0.706 Threading
- Designed for a Tube Lens Focal Length of 200 mm
- 95 mm Parfocal Length

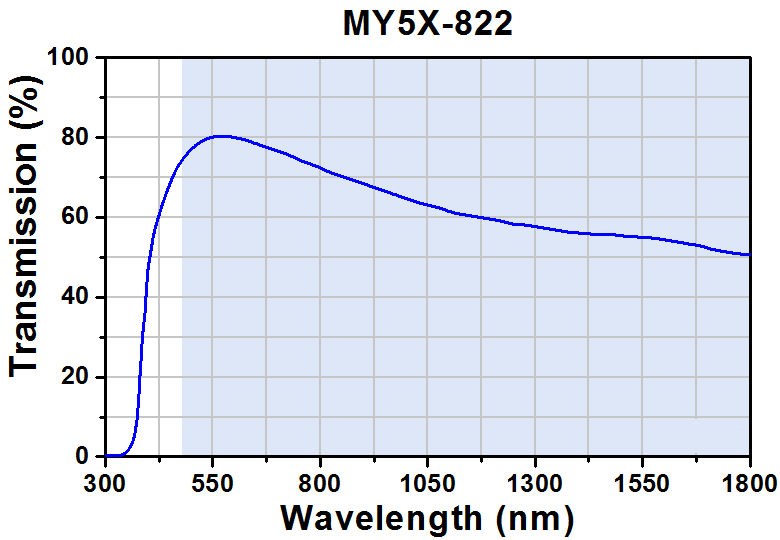

Wavelength Range 480 - 1800 nm
Magnification 5X
Working Distance 37.5 mm
Effective Focal Length 40 mm
Numerical Aperture 0.14
Entrance Pupil Diameter 11.2 mm
Resolution 2.4 µm
Optical Field Number 24
Parfocal Length 95 mm
Cover Glass Thickness 0 mm
AR Coating Reflectance Proprietary
Objective Threading M26 x 0.706; 5 mm Depth
