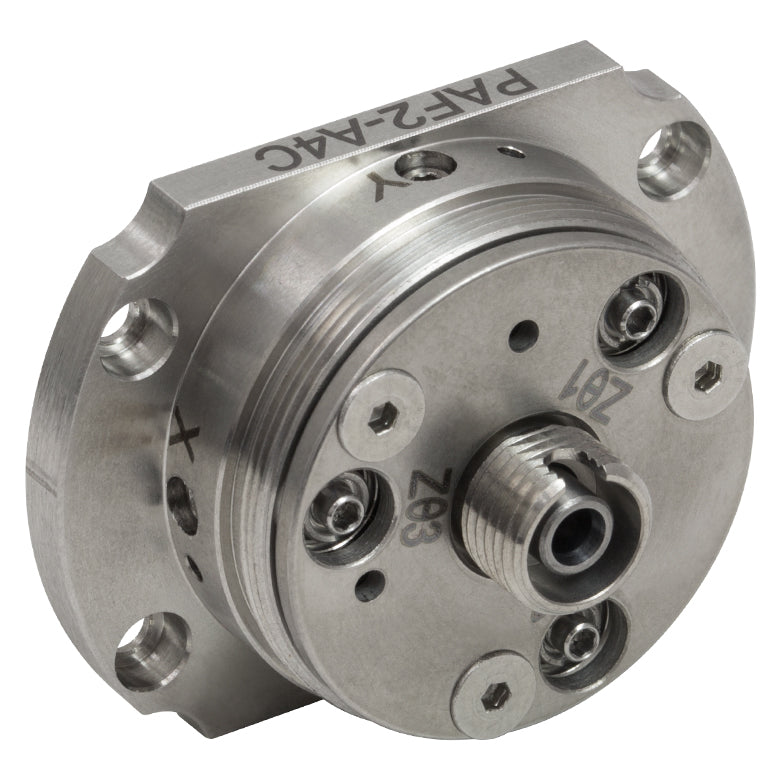

TH-PAF2-A4C - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 1050 - 1620 nm, Ø0.76 mm Waist
TH-PAF2-A4C - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 1050 - 1620 nm, Ø0.76 mm Waist
TH-PAF2-A4C - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 1050 - 1620 nm, Ø0.76 mm Waist
Roll over image to zoom in Click on image to zoom
TH-PAF2-A4C - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 1050 - 1620 nm, Ø0.76 mm WaistTH-PAF2-A4C - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 1050 - 1620 nm, Ø0.76 mm WaistTH-PAF2-A4C - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 1050 - 1620 nm, Ø0.76 mm Waist

TH-PAF2-A4C - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 1050 - 1620 nm, Ø0.76 mm Waist

Fosco ConnectSKU: THPAF2-A4C
Price:
$ 850.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-PAF2-A4C - Achromatic FiberPort, FC/PC & FC/APC, f = 4.0 mm, 1050 - 1620 nm, Ø0.76 mm Waist

Product Drawing

EFL 4.0 mm

Input MFD 10.4 µm

Output 1/e2 Waist Diameter 0.76 mm

Max Waist Distance 150 mm

Divergence 2.600 mrad

Lens Characteristics

  • Clear Aperture 1.8 mm
  • NA 0.22

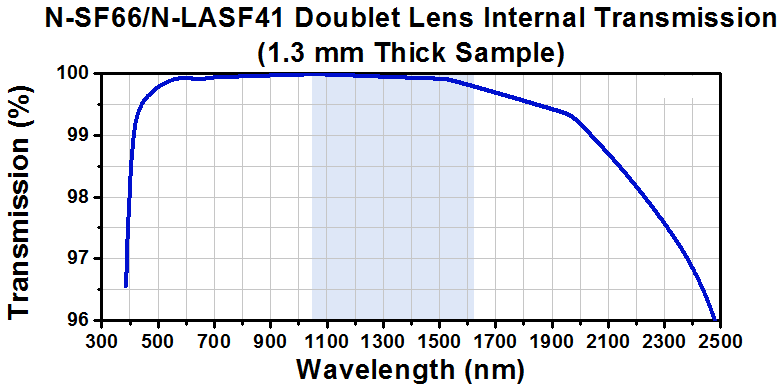

  • Wavelength range of the antireflection coating 1050 - 1620 nm
  • The length from the tip of the connector bulkhead to the face of the FiberPort flange 0.70" (17.7 mm)
