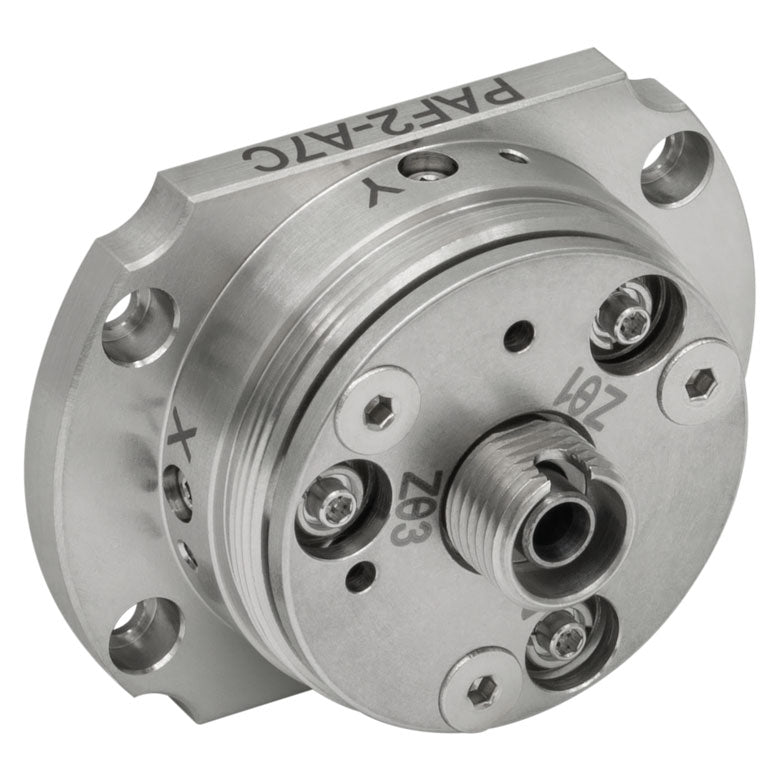

TH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm Waist
TH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm Waist
TH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm Waist
Roll over image to zoom in Click on image to zoom
TH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm WaistTH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm WaistTH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm Waist

TH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm Waist

Fosco ConnectSKU: THPAF2-A7C
Price:
$ 850.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm Waist

Product Drawing

EFL 7.5 mm

Input MFD 10.4 µm

Output 1/e2 Waist Diameter 1.42 mm

Max Waist Distance 521 mm

Divergence 1.387 mrad

Lens Characteristics

  • Clear Aperture 4.5 mm
  • NA 0.30

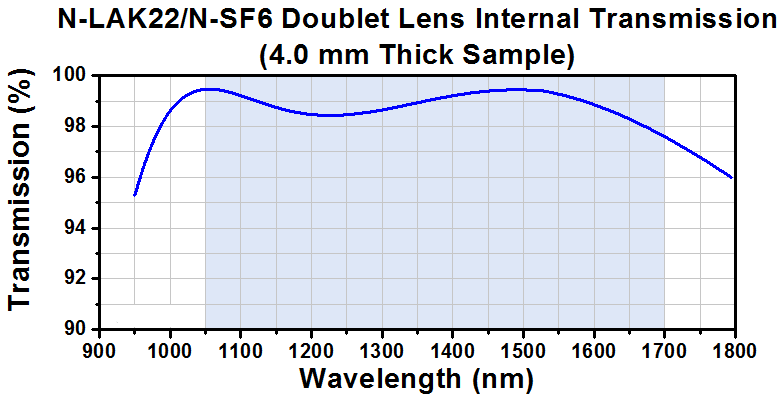

  • Wavelength range of the antireflection coating 1050 - 1700 nm
  • The length from the tip of the connector bulkhead to the face of the FiberPort flange 0.70" (17.7 mm)
