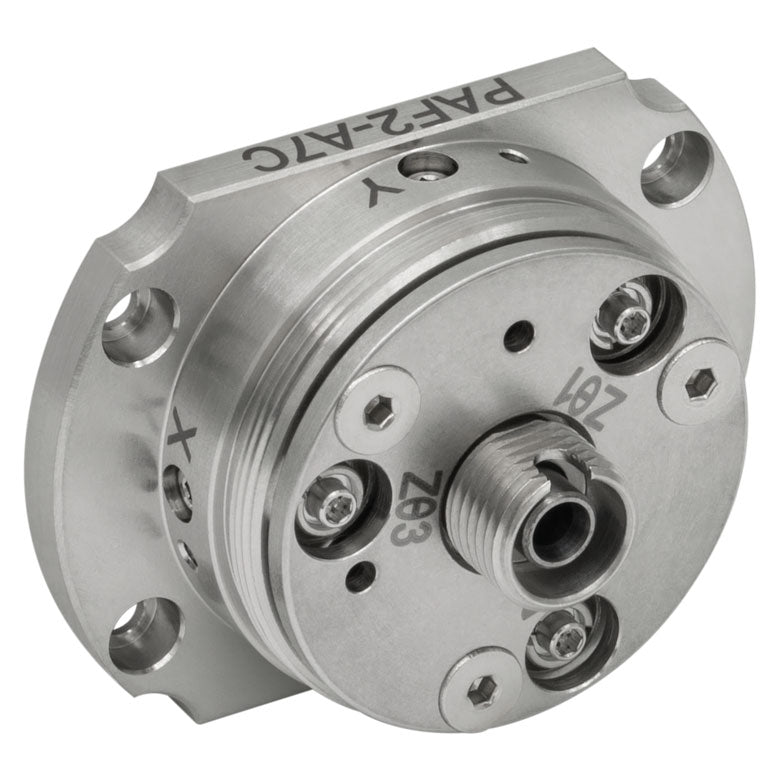

TH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm Waist

Fosco Connect Part No.: THPAF2-A7C

TH-PAF2-A7C - Achromatic FiberPort, FC/PC & FC/APC, f = 7.5 mm, 1050 - 1700 nm, Ø1.42 mm Waist

EFL 7.5 mm

Input MFD 10.4 µm

Output 1/e²Waist Diameter 1.42 mm

Max Waist Distance 521 mm

Divergence 1.387 mrad

Lens Characteristics

Clear Aperture 4.5 mm
NA 0.30
Wavelength range of the antireflection coating 1050 - 1700 nm
The length from the tip of the connector bulkhead to the face of the FiberPort flange 0.70" (17.7 mm)
