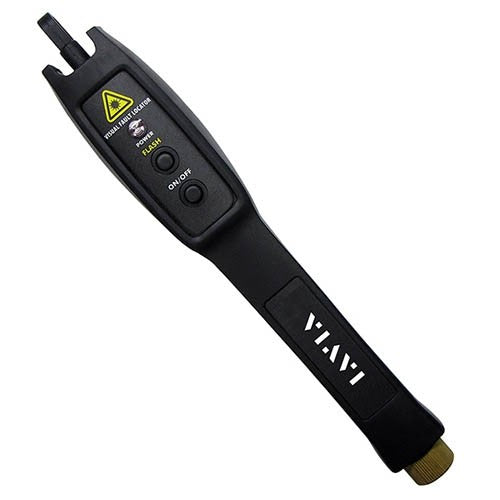

The Viavi FFL-100 Ruggedized Visual Fault Locator is an essential tool that quickly and easily locates problem areas in fiber cables. By pinpointing the exact location of fiber damage, technicians can diagnose, troubleshoot, and fix the problem efficiently.

The VFL is also used for conducting continuity tests and performing fiber identification.
The Viavi FFL-100 Ruggedized Visual Fault Locator is designed for comfortable handling and portability.

It is equipped with a 2.5 mm interface and is compatible with connectors such as SC, ST, and FC, while the included 1.25 mm adapter enables connection to LC and MU connectors.

The VFL emits a bright red laser beam (Class II), making the light escaping from the damaged fiber easily visible from a distance. The Continuous/Flash control button lets operators choose between continuous or flashing illumination.

Features:

• Quickly and easily locates damage in optical fiber
• Ruggedized and designed for demanding field use
• Visible wavelength: 650 nm
• High powered laser (1 mW) for single-mode (> 7 km) and multi-mode (> 5 km) connectors
• Continuous and Flashing illumination modes
• Universal connector interface for quick and easy connection
• 2.5 mm connector input (supplied with 1.25 mm adapter)
• Long-lasting battery life
• Includes soft-sided carrying case with belt loop

Benefits

• Easy-to-use

• Quickly and easily locate damage in optical fiber

• Continuous and Flashing illumination modes

• Economically priced

• Ruggedized and designed for demanding field use

• Long-lasting battery life

• Protective rubber end cap


Features

• Compact, ergonomic design for ultimate portability

• Visible wavelength is 650 nm

• High powered laser (1 mW) for single-mode (> 7 km) and multimode (> 5 km) connectors

• Continuous or Flash illumination

• Universal connector interface for quick and easy connection

• 2.5 mm connector input (1.25 mm adapter available)

• Includes soft-sided carrying case with belt loop

Applications

• Locate sharp bends, breaks, and damages in fiber

• Conduct end-to-end continuity tests

• Perform fiber tracing and identification

Specifications

• Dimensions: 22.0 x 3.5 x 3.0 cm (8.7 x 1.4 x 1.2 in)
• Weight: 150 g (5.3 oz) with two AA batteries
• Fiber Compatibility: Single-mode, Multimode
• Wavelength: 650 nm (visible)
• Laser Safety Rating: Class II
• Output Power: 1.0 mW max

• Output Modes: Continuous and flashing

• Range: > 7.5 km single-mode; > 5 km multimode

• Connector Interface:  Universal 2.5 mm (fixed); Universal 1.25 mm adapter (included)

• Controls: ON/OFF; Continuous/Flashing

• Battery Type: Two AAA

• Battery Life: 80+ hours on continuous

• Carrying Case: Soft-sided with belt loop

• Safety: 1992, EN 61010-2, CE

• Warranty: 1 year

Ordering Information

FFL-100: Visual fault locator (ruggedized) with 1.25 mm adapter
FFL-050: Visual fault locator (pocket-sized)

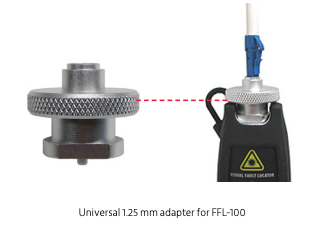

FFL-U12: Universal 1.25 mm adapter for FFL-100
FFL-050-U12: Universal 1.25 mm adapter for FFL-050

Comparison

• FFL-050 (Pocket-sized)
  Compact size for portability
  Uses two AAA batteries (included) with 30+ hours continuous power
  Universal 1.25 mm adapter sold separately

• FFL-100 (Ruggedized)
  Rugged, shock-absorbing construction
  Uses two AA batteries (included) with 80+ hours continuous power
  Professional-grade with universal 1.25 mm adapter included

Download Spec Sheet:

• Viavi FFL-100 Ruggedized Visual Fault Locator Spec Sheet PDF
