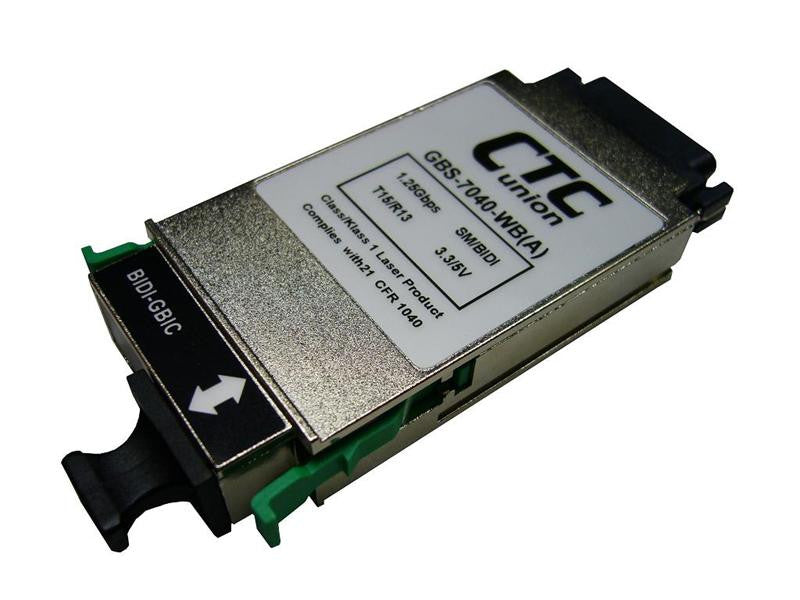

Product description
GBIC optical modules are equipped with the industry standard SC optical connector. The capacity of GBIC modules is 1.25 GigaBit. The GBIC Bi-Directional single strand series covers single strand fiber optic applications for single-mode long haul fiber(20Km to 80Km).
GBIC modules are extremely versatile, working with any active equipment that support the GBIC type of interface: Ethernet switches, routers and other networking equipments.
Fiber power budget according to available models
| Model | Distance | Lambda | Min. Output (dBm) | Sensitivity (dBm) | Power Budget (dB) |
| GBS-7020-WA | 20Km | Tx:1310nm Rx:1550nm | -8 | -23 | 15 |
| GBS-7020-WB | 20Km | Tx:1550nm Rx:1310nm | -8 | -23 | 15 |
| GBS-7040-WA | 40Km | Tx:1310nm Rx:1550nm | -3 | -23 | 20 |
| GBS-7040-WB | 40Km | Tx:1550nm Rx:1310nm | -3 | -23 | 20 |
| GBS-7060-WA | 60Km | Tx:1310nm Rx:1550nm |
0 | -24 | 24 |
| GBS-7060-WB | 60Km | Tx:1550nm Rx:1310nm |
-2 | -25 | 23 |
| GBS-7080-WA | 80Km | Tx:1490nm Rx:1550nm | 0 | -27 | 27 |
| GBS-7080-WB | 80Km | Tx:1550nm Rx:1490nm | 0 | -27 | 27 |
