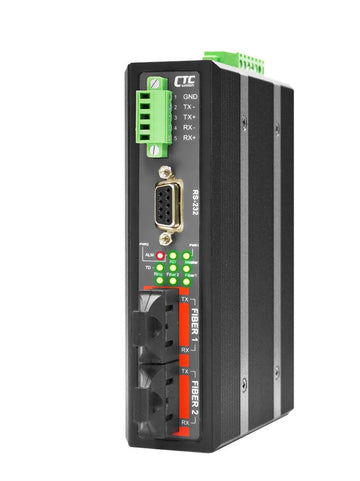

IFC-FDC-SC002 - RS-232, RS-485, RS-422 over daisy chain dual port multimode fiber industrial media converter, 2Km, 2.5kV isolation, -10-60 Celsius
-
Product description
The IFC-FDC Series are industrial grade fiber media converters that provide dual fiber connections to extend asynchronous RS-232, RS-485 or RS-422 serial transmissions over a distance of up to 2km using multimode fiber or up to 60km using single mode fiber. The dual fiber inputs allow connecting multiple devices in a cascade or "daisy chain" fashion as well as creating ring architecture for fiber redundancy. The converter is capable of selecting interface modes for connection to RS-232 (3 or 5 wire), RS-485 (2 or 4 wire, half or full duplex) or RS-422 (4 wire, full duplex). The IFC-FDC Series secures asynchronous serial data transmissions over EMI resistant fiber at speeds up to 1024kbps. IFC-FDC Series media converters feature two alarm relay contacts and two redundant DC power inputs. The IFC-FDC Series reliable industrial design is perfect for keeping your industrial automation applications running smoothly and continuously. The IFC-FDC Series media converters are available in two operating temperature ranges, a standard -1° to 6°C model range or an extended -4° to 7°C range.
Features
Extend serial transmission distance up to 2km, 30km, 60km
Supports fiber daisy chain or ring connections
Redundant dual power inputs (12~48VDC)
Supports dual fiber link redundancy
Supports RS-232, RS-422, RS-485(2/4 wire) transmission to dual fiber connections.
Enhanced serial baudrate up to 1024kpbs
2.5KV isolation for serial signal
Supports relay output for power or link failure warning
Hardened housing with IP30 protection
Fan-less and DIN-Rail design for harsh industrial environment
Adjustable pull high/low resistor and terminator for RS-422/485 transmission
Technical specifications
Interfaces: 6 pin screw block connector for RS-485/RS-232/RS-422 serial asynchronous port and dual SC 155M fiber ports w/ daisy chain support Operating wavelength: 1310nm Operating distance: up to 2Km on 50/125um or 62.5/125um fiber Optical connector: SC Front LEDs: PWR1, PWR2, Alarm, Master, TD, RD, Fiber1 Link, Fiber2 Link, Ring Power: dual DC 9~58V input power supplies (screw block connector) Temperature: -10~6°C (Operating); -40~7°C (Extended Range model IFC-FDC-E) Humidity: 5~95% non condensing Consumption: less than 5W Dimensions(WxDxH): 106 x 38.6 x 142.1mm Weight: 380g Compliance: CE, FCC Class A, EMI: EN55022 Class A, Vibration : IEC 60068-2-6
Shock : IEC 60068-2-27, Free Fall : IEC 60068-2-32MTBF: 300,000 hours
Fiber power budget according to available models
Model Distance Lambda Min. Output (dBm) Sensitivity (dBm) Power Budget (dB) IFC-FDC-SC002 2Km 1310nm -20 -31 11 IFC-FDC-SC030 30Km 1310nm -20 -35 14 IFC-FDC-SC060 60Km 1550nm -15 -35 20
