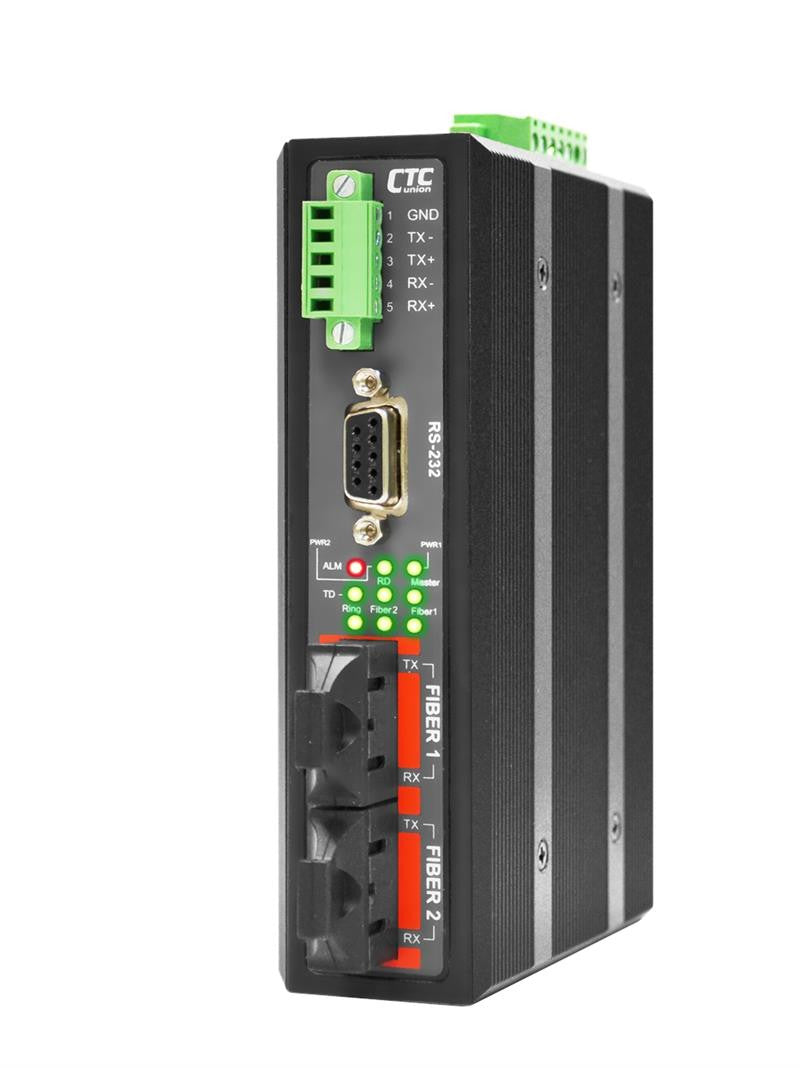

IFC-FDC-SC002 - RS-232, RS-485, RS-422 over daisy chain dual port multimode fiber industrial media converter, 2Km, 2.5kV isolation, -10-60 Celsius
Move your mouse over image or click to enlarge

IFC-FDC-SC002 - RS-232, RS-485, RS-422 over daisy chain dual port multimode fiber industrial media converter, 2Km, 2.5kV isolation, -10-60 Celsius

CTC Union Part No.: IFC-FDC-SC002

  • $ 379.00 or


  • Product description
    The IFC-FDC Series are industrial grade fiber media converters that provide dual fiber connections to extend asynchronous RS-232, RS-485 or RS-422 serial transmissions over a distance of up to 2km using multimode fiber or up to 60km using single mode fiber. The dual fiber inputs allow connecting multiple devices in a cascade or "daisy chain" fashion as well as creating ring architecture for fiber redundancy. The converter is capable of selecting interface modes for connection to RS-232 (3 or 5 wire), RS-485 (2 or 4 wire, half or full duplex) or RS-422 (4 wire, full duplex). The IFC-FDC Series secures asynchronous serial data transmissions over EMI resistant fiber at speeds up to 1024kbps. IFC-FDC Series media converters feature two alarm relay contacts and two redundant DC power inputs. The IFC-FDC Series reliable industrial design is perfect for keeping your industrial automation applications running smoothly and continuously. The IFC-FDC Series media converters are available in two operating temperature ranges, a standard -1° to 6°C model range or an extended -4° to 7°C range.

    Features
    Extend serial transmission distance up to 2km, 30km, 60km
    Supports fiber daisy chain or ring connections
    Redundant dual power inputs (12~48VDC)
    Supports dual fiber link redundancy
    Supports RS-232, RS-422, RS-485(2/4 wire) transmission to dual fiber connections.
    Enhanced serial baudrate up to 1024kpbs
    2.5KV isolation for serial signal
    Supports relay output for power or link failure warning
    Hardened housing with IP30 protection

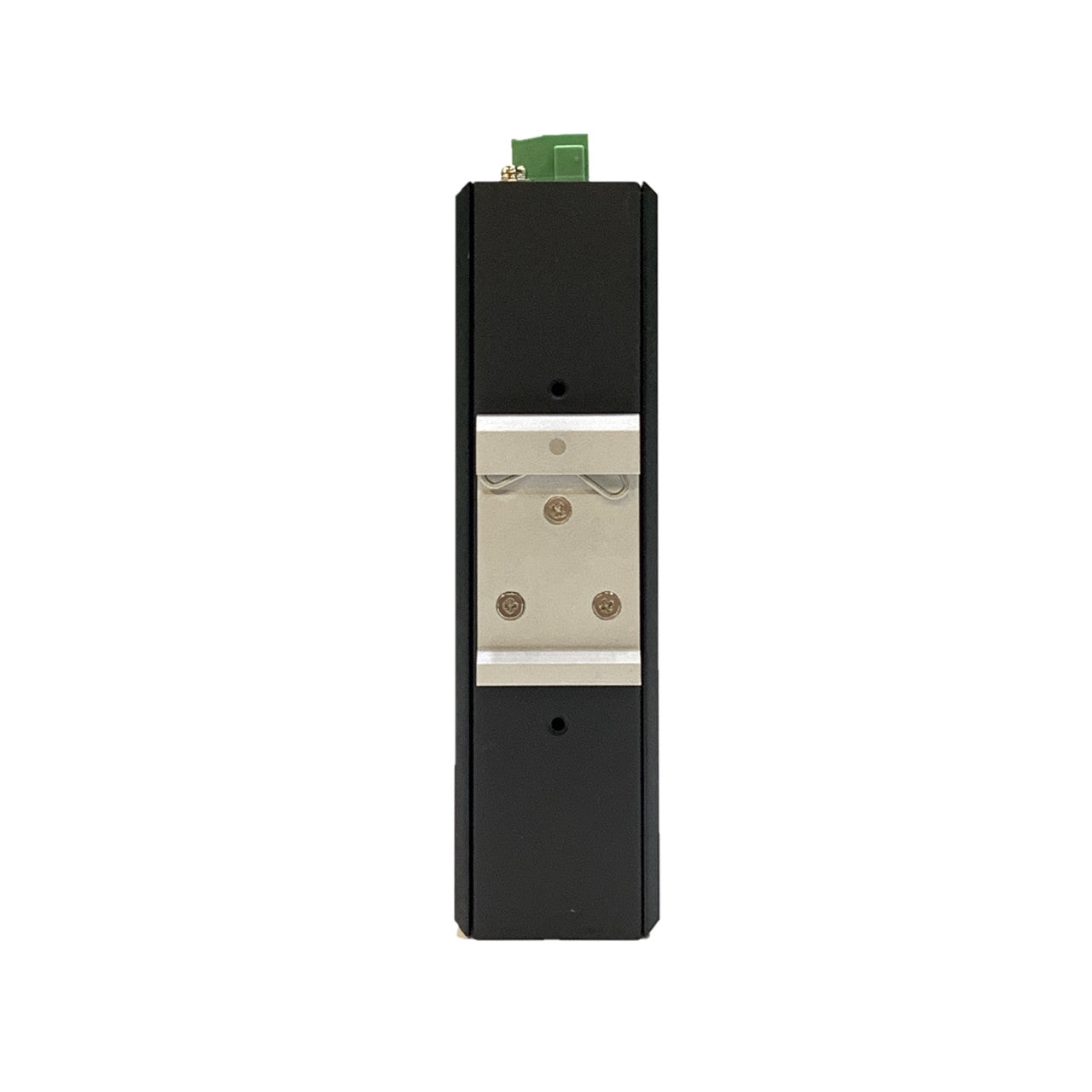

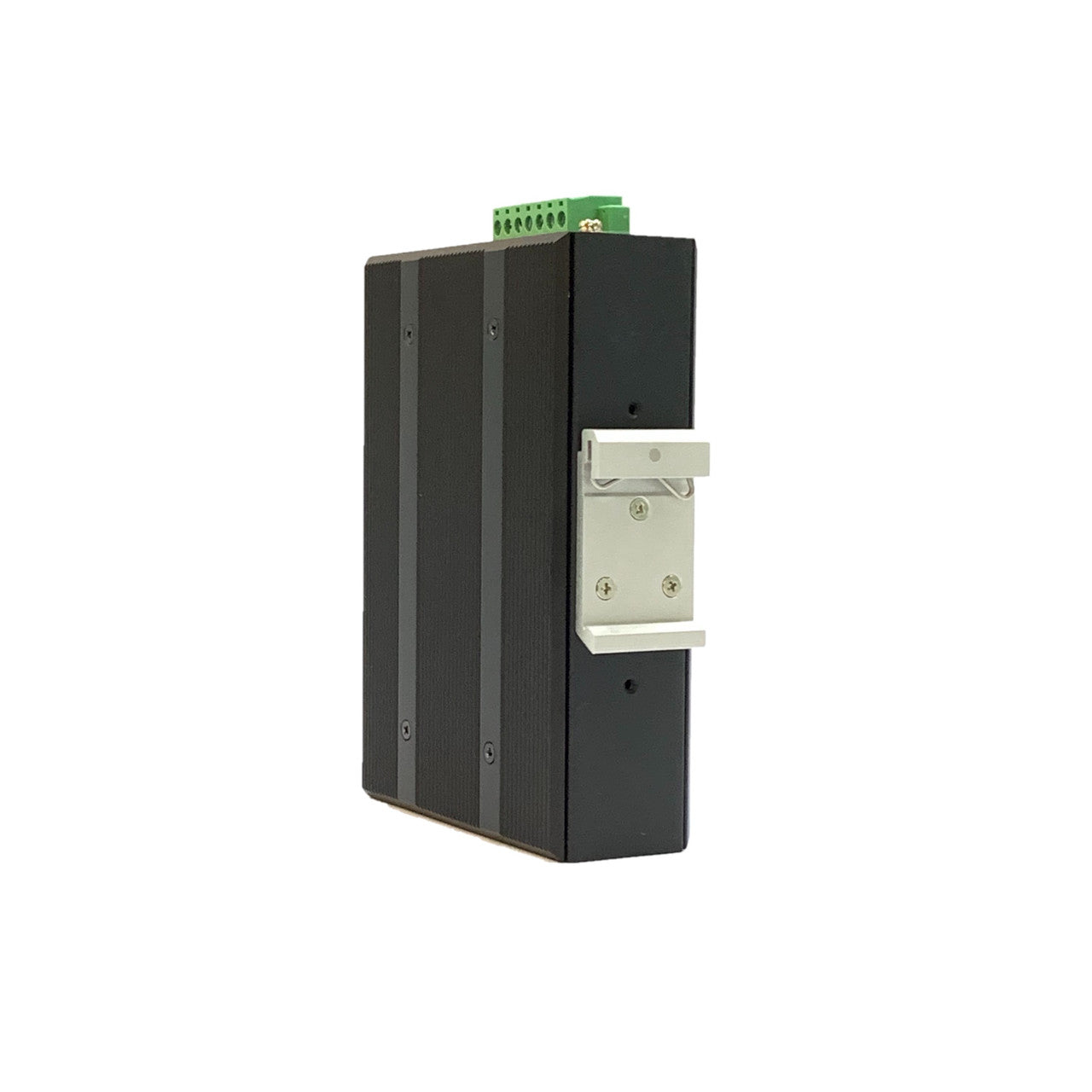

    Fan-less and DIN-Rail design for harsh industrial environment

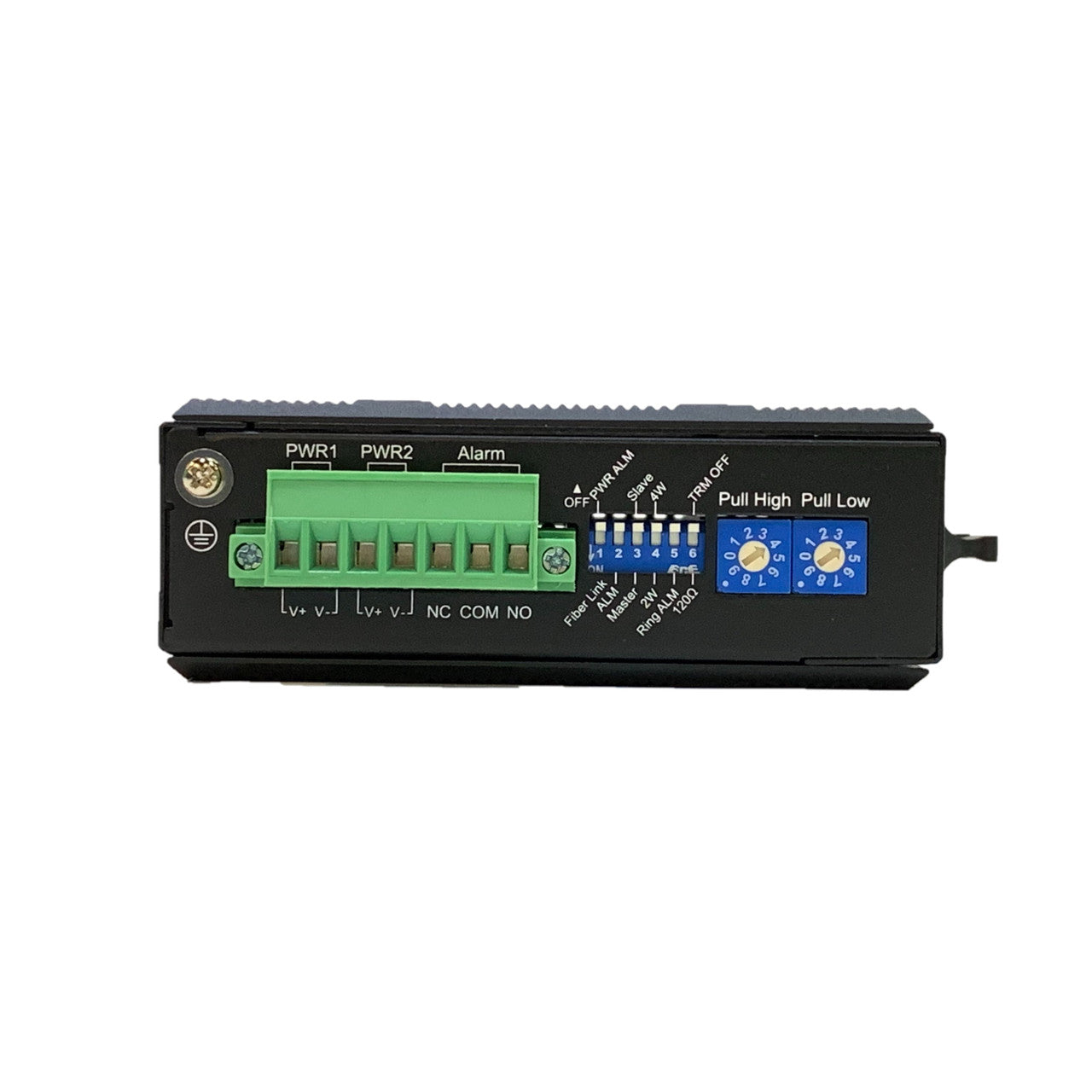

    Adjustable pull high/low resistor and terminator for RS-422/485 transmission

    Technical specifications
    Interfaces: 6 pin screw block connector for RS-485/RS-232/RS-422 serial asynchronous port and dual SC 155M fiber ports w/ daisy chain support
    Operating wavelength: 1310nm
    Operating distance: up to 2Km on 50/125um or 62.5/125um fiber
    Optical connector: SC

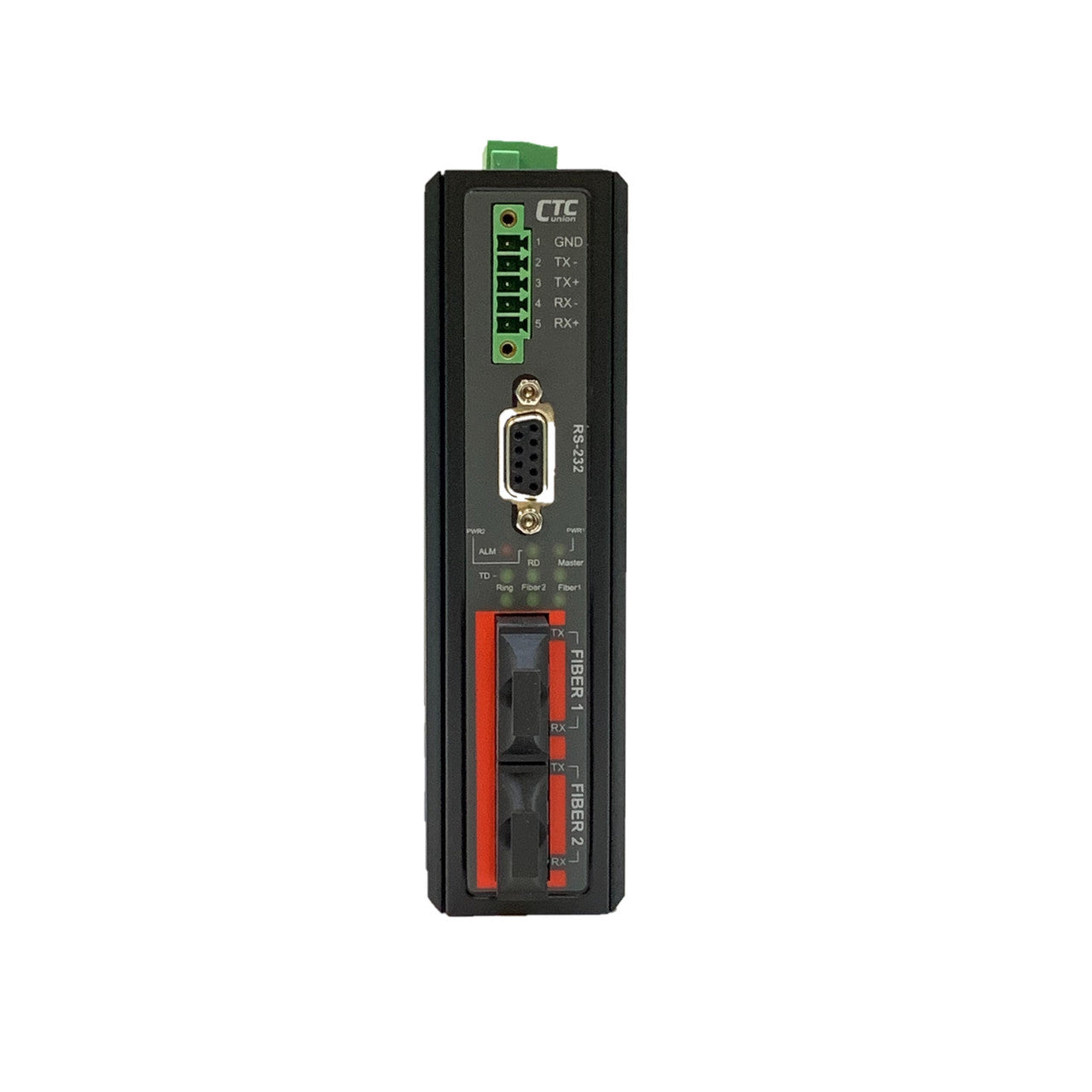

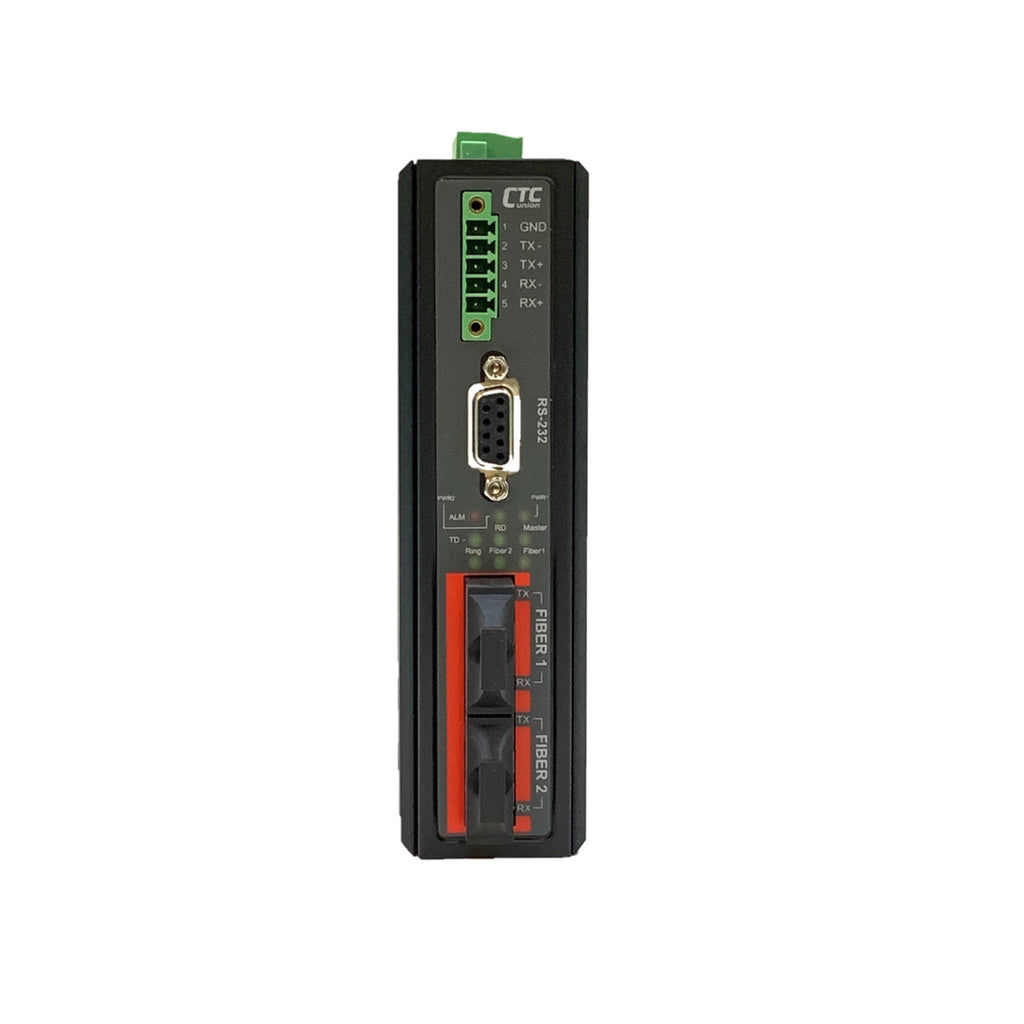

    Front LEDs: PWR1, PWR2, Alarm, Master, TD, RD, Fiber1 Link, Fiber2 Link, Ring
    Power: dual DC 9~58V input power supplies (screw block connector)
    Temperature: -10~6°C (Operating); -40~7°C (Extended Range model IFC-FDC-E)
    Humidity: 5~95% non condensing
    Consumption: less than 5W
    Dimensions(WxDxH): 106 x 38.6 x 142.1mm
    Weight: 380g
    Compliance: CE, FCC Class A, EMI: EN55022 Class A, Vibration : IEC 60068-2-6
    Shock : IEC 60068-2-27, Free Fall : IEC 60068-2-32
    MTBF: 300,000 hours


    Fiber power budget according to available models
    Model Distance Lambda Min. Output (dBm) Sensitivity (dBm) Power Budget (dB)
    IFC-FDC-SC002 2Km 1310nm -20 -31 11
    IFC-FDC-SC030 30Km 1310nm -20 -35 14
    IFC-FDC-SC060 60Km 1550nm -15 -35 20
