Features:

• Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
• Dome-top head features unique patented design with round, smooth edges
• Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
• High strength and low thread force
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)

Specifications:

Part number	BT4LH-TL0
RoHS Compliancy Status	Compliant

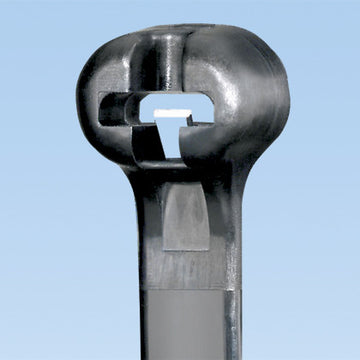

Part Description	Cable Tie with metal barb, 14.9", Light-Heavy cross section
Product Type	Cable Ties
Material	Weather Resistant Nylon 6.6
Color	Black
CSA Certified	No
UL Listed (File #E56854)	No
UL Recognized (File #E56854)	No
Length (In.)	14.9
Length (mm)	378
Width (In.)	0.275
Width (mm)	7.0
CE Compliant	Yes
Cross Section	Light-Heavy
Head Height (In.)	0.320
Head Height (mm)	8.1
Head Width (In.)	0.520
Head Width (mm)	13.2
Locking Style	Locking
Material Flammability Rating	HB
Max. Bundle Diameter (In.)	4.00
Max. Bundle Diameter (mm)	102
Max. Continuous Use Temperature	185øF (85øC)
Min. Bundle Diameter (In.)	0.19
Min. Bundle Diameter (mm)	4.8
Min. Loop Tensile Strength (Lbs.)	120
Min. Loop Tensile Strength (N)	534
Plenum-Rated	No
Pricing Description	Cable Tie, Metal Barb, 14.9"L (378mm), Light-Heavy, Weather Resistant, Black
Thickness (In.)	0.065
Thickness (mm)	1.7
Tool	GTH, GS4H, GS4EH, PTH, STH2, ST3EH

Product Sheet:

• Spec Sheet
