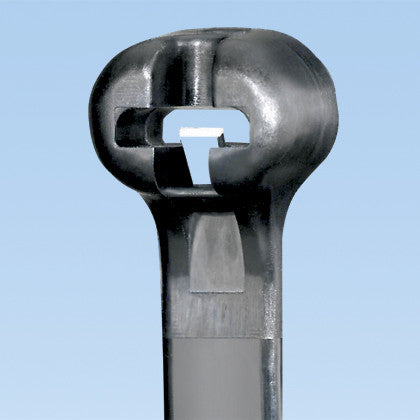

Cable Tie with metal barb, 14.9", Light-Heavy cross section, Black, 250/pk
Move your mouse over image or click to enlarge

Cable Tie with metal barb, 14.9", Light-Heavy cross section, Black, 250/pk

Panduit Part No.: BT4LH-TL0

  • $ 161.54 or
  • per pack


Features:

  • Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
  • Dome-top head features unique patented design with round, smooth edges
  • Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
  • High strength and low thread force
  • Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)

Specifications:

Part number BT4LH-TL0
RoHS Compliancy Status Compliant
Part Description Cable Tie with metal barb, 14.9", Light-Heavy cross section
Product Type Cable Ties
Material Weather Resistant Nylon 6.6
Color Black
CSA Certified No
UL Listed (File #E56854) No
UL Recognized (File #E56854) No
Length (In.) 14.9
Length (mm) 378
Width (In.) 0.275
Width (mm) 7.0
CE Compliant Yes
Cross Section Light-Heavy
Head Height (In.) 0.320
Head Height (mm) 8.1
Head Width (In.) 0.520
Head Width (mm) 13.2
Locking Style Locking
Material Flammability Rating HB
Max. Bundle Diameter (In.) 4.00
Max. Bundle Diameter (mm) 102
Max. Continuous Use Temperature 185øF (85øC)
Min. Bundle Diameter (In.) 0.19
Min. Bundle Diameter (mm) 4.8
Min. Loop Tensile Strength (Lbs.) 120
Min. Loop Tensile Strength (N) 534
Plenum-Rated No
Pricing Description Cable Tie, Metal Barb, 14.9"L (378mm), Light-Heavy, Weather Resistant, Black
Thickness (In.) 0.065
Thickness (mm) 1.7
Tool GTH, GS4H, GS4EH, PTH, STH2, ST3EH

Product Sheet:
